EL55-BEMDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4DS

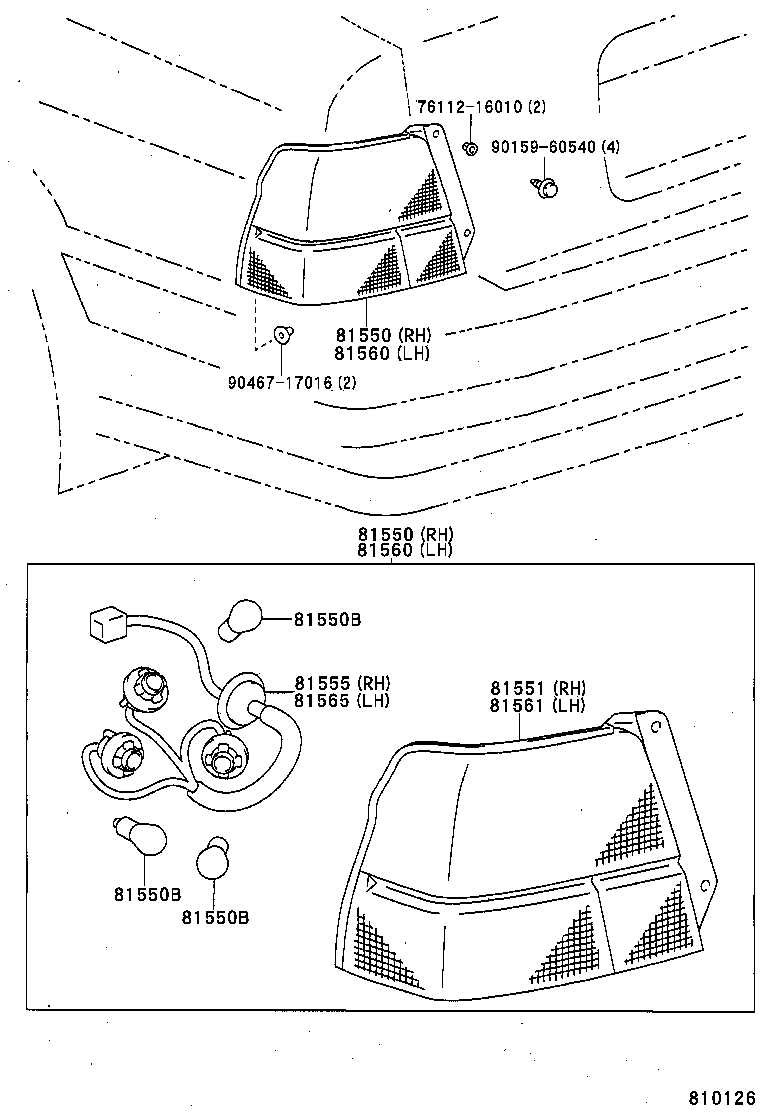

Click highlighted areas on diagram

diagram 7611216010 81550 81550 81550B 81550B 81550B 81551 81555 81560 81560 81561 81565 9015960540 9046717016
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-16480

EL5#,NL50..4DS

 1
81550-16580

EL5#,NL50..4DS..(AX,JOI)

 1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-16480

EL5#,NL50..4DS

 1
81550-16580

EL5#,NL50..4DS..(AX,JOI)

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-15009

EL5#,NL50

12V 21W,ｱﾝﾊﾞｰ

 2
99132-11210

EL5#,NL50..4DS

12V 21W

 4
99132-21210

EL5#,NL50..4DS

12V 21/5W

 2
90981-13043

EL5#,NL50

12V 21W

 2
90981-13044

EL5#,NL50

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-15009

EL5#,NL50

12V 21W,ｱﾝﾊﾞｰ

 2
99132-11210

EL5#,NL50..4DS

12V 21W

 4
99132-21210

EL5#,NL50..4DS

12V 21/5W

 2
90981-13043

EL5#,NL50

12V 21W

 2
90981-13044

EL5#,NL50

12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-15009

EL5#,NL50

12V 21W,ｱﾝﾊﾞｰ

 2
99132-11210

EL5#,NL50..4DS

12V 21W

 4
99132-21210

EL5#,NL50..4DS

12V 21/5W

 2
90981-13043

EL5#,NL50

12V 21W

 2
90981-13044

EL5#,NL50

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16580

EL5#,NL50..4DS..(AX,JOI)

 1
81551-16480

EL5#,NL50..4DS

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16480

EL5#,NL50..4DS

 1
81555-16580

EL5#,NL50..4DS

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-16520

EL5#,NL50..4DS

 1
81560-16620

EL5#,NL50..4DS..(AX,JOI)

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-16520

EL5#,NL50..4DS

 1
81560-16620

EL5#,NL50..4DS..(AX,JOI)

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16520

EL5#,NL50..4DS

 1
81561-16620

EL5#,NL50..4DS..(AX,JOI)

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16480

EL5#,NL50..4DS

 1
81555-16580

EL5#,NL50..4DS

 1
Common parts
76112-16010
90159-60540
90467-17016
