EL55-AGPSK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

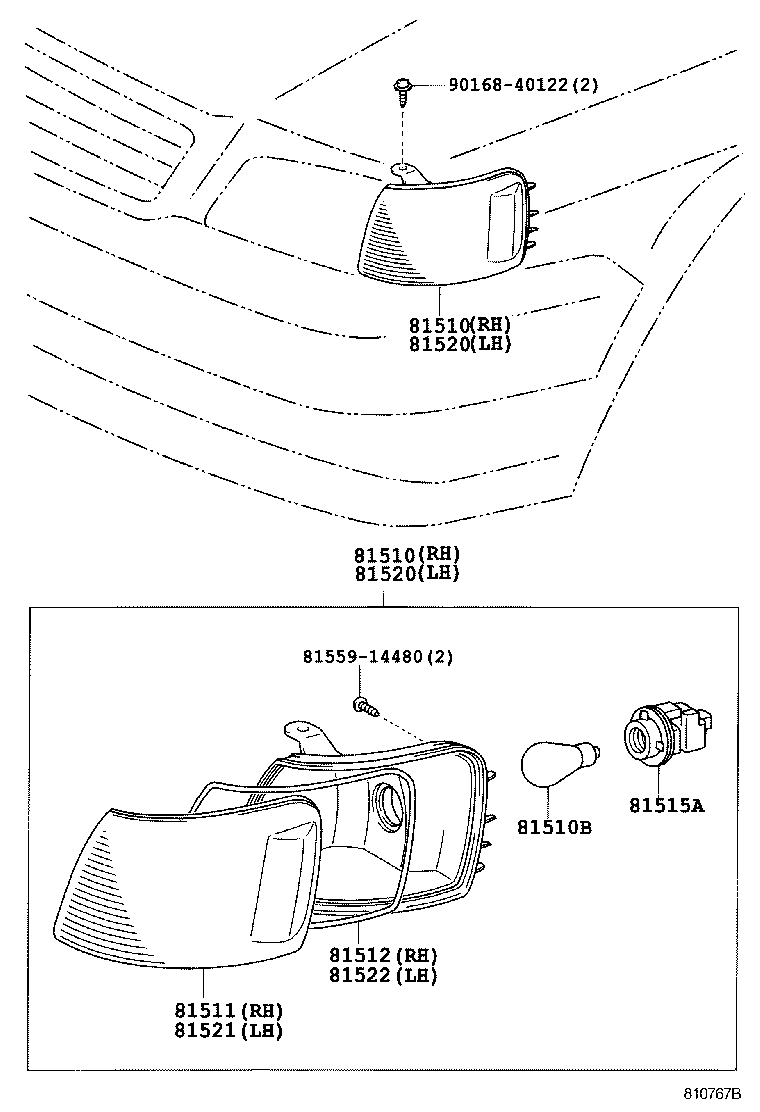

(9712- )3DS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16270 |
EL5#,NL50..3DS |
1 | ||
| 81510-16210 |
EL5#,NL50..3DS |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16270 |
EL5#,NL50..3DS |
1 | ||
| 81510-16210 |
EL5#,NL50..3DS |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
EL5#,NL50 12V 21W |
2 | ||
| 90981-15009 |
EL5#,NL50..3DS 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-16270 |
EL5#,NL50..3DS |
1 | ||
| 81511-16210 |
EL5#,NL50..3DS |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81514-16220 |
EL5#,NL50..3DS |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
EL5#,NL50..3DS |
2 | ||
| 90075-99078 |
EL5#,NL50 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16270 |
EL5#,NL50..3DS |
1 | ||
| 81520-16210 |
EL5#,NL50..3DS |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16270 |
EL5#,NL50..3DS |
1 | ||
| 81520-16210 |
EL5#,NL50..3DS |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-16210 |
EL5#,NL50..3DS |
1 | ||
| 81521-16270 |
EL5#,NL50..3DS |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81514-16220 |
EL5#,NL50..3DS |
1 | ||
| Common parts | ||||
| 81559-14480 | ||||
| 90168-40122 | ||||

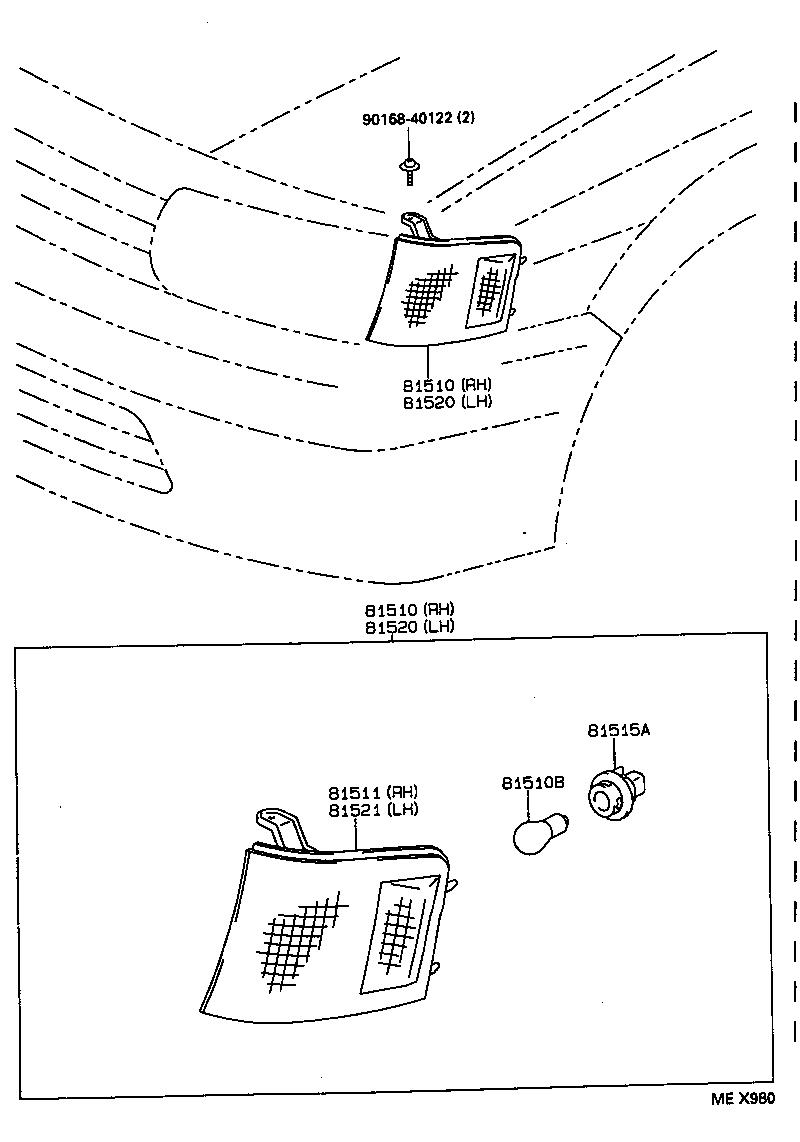

(9409-9712)3DS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16270 |
EL5#,NL50..3DS |
1 | ||
| 81510-16210 |
EL5#,NL50..3DS |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16270 |
EL5#,NL50..3DS |
1 | ||
| 81510-16210 |
EL5#,NL50..3DS |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
EL5#,NL50 12V 21W |
2 | ||
| 90981-15009 |
EL5#,NL50..3DS 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-16270 |
EL5#,NL50..3DS |
1 | ||
| 81511-16210 |
EL5#,NL50..3DS |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 90075-60006 |
EL5#,NL50..3DS |
2 | ||
| 90075-99078 |
EL5#,NL50 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16270 |
EL5#,NL50..3DS |
1 | ||
| 81520-16210 |
EL5#,NL50..3DS |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16270 |
EL5#,NL50..3DS |
1 | ||
| 81520-16210 |
EL5#,NL50..3DS |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-16210 |
EL5#,NL50..3DS |
1 | ||
| 81521-16270 |
EL5#,NL50..3DS |
1 | ||
| Common parts | ||||
| 90168-40122 | ||||
