Toyota Corsa/tercel EL55 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40134	EL5#,NL50..ATM	09/1994 - 12/2999	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-16070B0	EL53,55,NL50..4FC BLUISH GRAY,TRIM1#	09/1994 - 08/1995	1
33542-16071B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1996 - 07/1999	1
33542-16070B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
33542-16071E1	EL53,55,NL50..4FC SANDAL WOOD,TRIM4#	12/1997 - 07/1999	1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-16351B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
33550-16350B0	EL53,55,NL50..4FC BLUISH GRAY,TRIM1#	09/1994 - 08/1995	1
33550-16351E1	EL53,55,NL50..4FC SANDAL WOOD,TRIM4#	12/1997 - 12/2999	1
33550-16350B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018	EL5#,NL50..ATM 12V 1.2W ｿｹｯﾄ無し	09/1994 - 12/2999	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-16060	EL5#,NL50..ATM	09/1994 - 12/2999	1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-07103	EL5#,NL50..ATM	09/1994 - 12/2999	1
33564 - LINK, SHIFT LOCK RELEASE, NO.1
33564-16030	EL5#,NL50..ATM	09/1994 - 12/2999	1
33582B - STOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33582-16040	EL5#,NL50..ATM	09/1994 - 12/2999	1
33589 - LINK, SHIFT LOCK SOLENOID
33589-16030	EL5#,NL50..ATM	09/1994 - 12/2999	1
33589A - SPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK)
90501-07096	EL5#,NL50..ATM	09/1994 - 12/2999	1
33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33594-16060	EL5#,NL50..ATM	09/1994 - 12/2999	1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-16050B0	EL53,55,NL50..4FC BLUISH GRAY,TRIM1#	09/1994 - 08/1996	1
33622-16051B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1996 - 11/1996	1
33622-16050E3	EL53,55,NL50..4FC SANDAL WOOD,TRIM4#	12/1997 - 12/2999	1
33622-16050B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	11/1996 - 12/2999	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-16080B1	EL5#,NL50..ATM SHADOW GRAY,TRIM1#	08/1995 - 08/1996	1
33623-16081E1	EL5#,NL50..ATM SANDAL WOOD,TRIM4#	12/1997 - 12/2999	1
33623-16081B1	EL5#,NL50..ATM SHADOW GRAY,TRIM1#	08/1996 - 12/2999	1
33623-16080B0	EL5#,NL50..ATM BLUISH GRAY,TRIM1#	09/1994 - 08/1995	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-05040	EL5#,NL50..ATM	09/1994 - 12/2999	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-16070	EL5#,NL50..ATM	09/1994 - 12/2999	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-16140	EL5#,NL50..ATM	09/1994 - 12/2999	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-16130	EL5#,NL50..ATM	09/1994 - 12/2999	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-16090	EL5#,NL50..ATM	09/1994 - 12/2999	1
35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
35976-16050E1	EL53,55,NL50..4FC SANDAL WOOD,TRIM4#	12/1997 - 12/2999	1
35976-16050B1	EL53,55,NL50..4FC SHADOW GRAY,TRIM1#	08/1995 - 12/2999	1
35976-16050B0	EL53,55,NL50..4FC BLUISH GRAY,TRIM1#	09/1994 - 08/1995	1
Common parts
90168-26001
90168-40121
90254-02006
91631-60828
93269-14008
Linked diagrams
8401
8410

Part #	Description	Period	Qty
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-10010	EL5#,NL50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ	09/1994 - 08/1996	1
33574-10010	EL5#,NL50..4F,4FC,5F	08/1996 - 12/2999	1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-10030	EL5#,NL50	09/1994 - 12/2999	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-16180	EL53,55..4FC	09/1994 - 11/1994	1
33820-16181	EL53,55..4FC	11/1994 - 12/2999	1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01662	EL53,55,NL50..4FC	09/1994 - 12/2999	1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01663	EL5#,NL50..ATM	09/1994 - 12/2999	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-16050	EL53,55,NL50..4FC	09/1994 - 12/2999	1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-16010	EL53,55,NL50..4FC	09/1994 - 12/2999	1
Common parts
90159-60080
90179-08061
90468-14004
90468-14016
91611-60816
91626-40618
Linked diagrams
3513

EL55-AGPSK (1994)

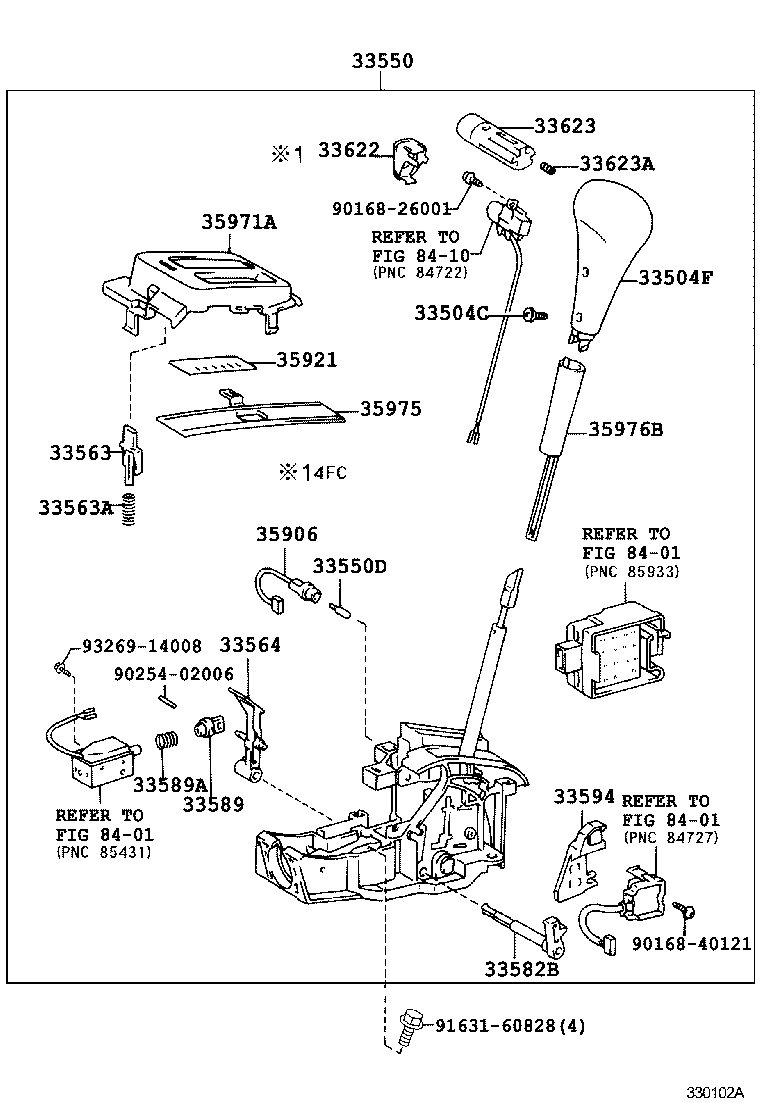

ILLUST NO. 1 OF 2(9409- )ATM

ILLUST NO. 2 OF 2(9409- )4FC
