EL55-AGPSK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )5EFE..4FC

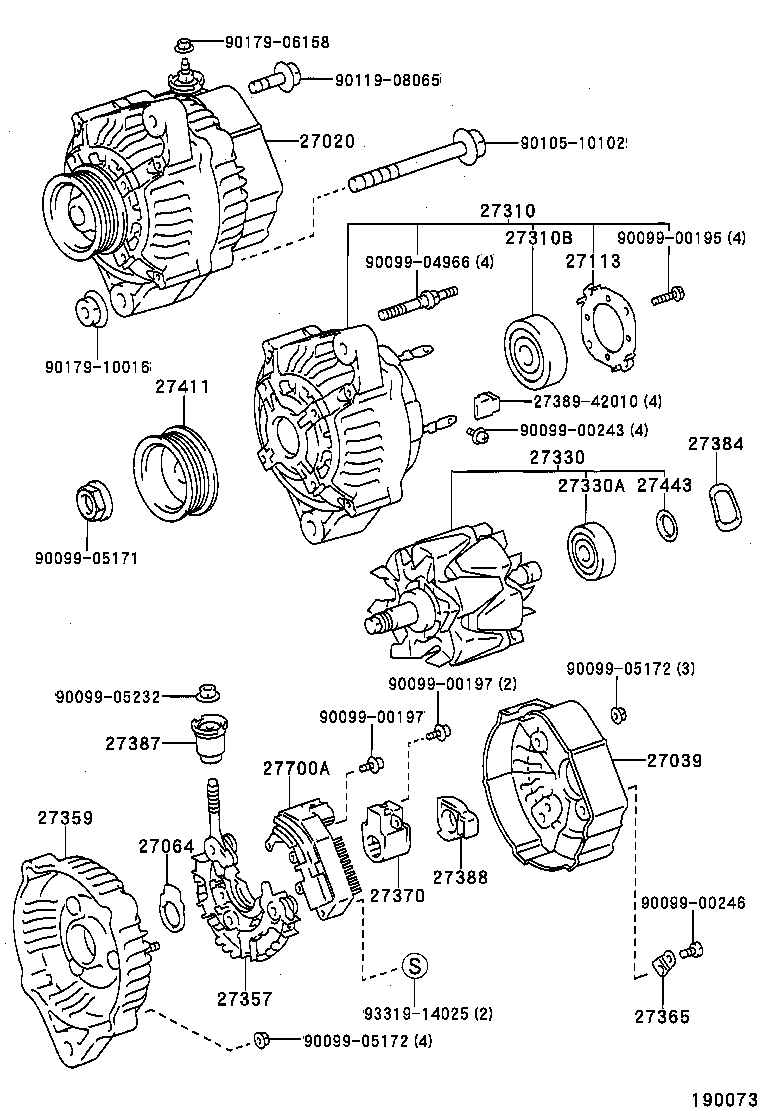

Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-11281 |
5EFE..EL53,55..4FC 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
5EFE..EL53,55..4FC |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1NT..NL50..5F;5EFE..EL53,55..4FC |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-42010 |
5EFE..EL53,55..4FC |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-16270 |
5EFE..EL53,55..4FC |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
5EFE..EL53,55..4FC |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-76030 |
5EFE..EL53,55..4FC |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1NT..NL50;4EFE,5EFE..EL5#..ATM |
1 | ||
| 90099-10140 |
5EFE..EL53,55..4FC |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-55080 |
5EFE..EL53,55..4FC |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16270 |
5EFE..EL53,55..4FC |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1NT..NL50..5F;5EFE..EL53,55..4FC |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
4EFE,5EFE..EL5#..3FC,4F,5F |
1 | ||
| 27370-75060 |
5EFE..EL53,55..4FC |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
1NT..NL50..5F;5EFE..EL53,55..4FC |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
5EFE..EL53,55..4FC |
1 | ||
| 27387-42020 |
5EFE..EL53,55..4FC |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1NT..NL50..5F;5EFE..EL53,55..4FC |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-11060 |
5EFE..EL53,55..4FC |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
4EFE,5EFE,1NT..EL5#,NL50 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74030 |
5EFE..EL53,55..4FC |
1 | ||
| 27700-74030 |
4EFE,5EFE..EL5#..ATM |
1 | ||
| Common parts | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05232 | ||||
| 90105-10102 | ||||
| 90119-08065 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 93319-14025 | ||||
