EL55-AGPDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )AX,JOI,MOA

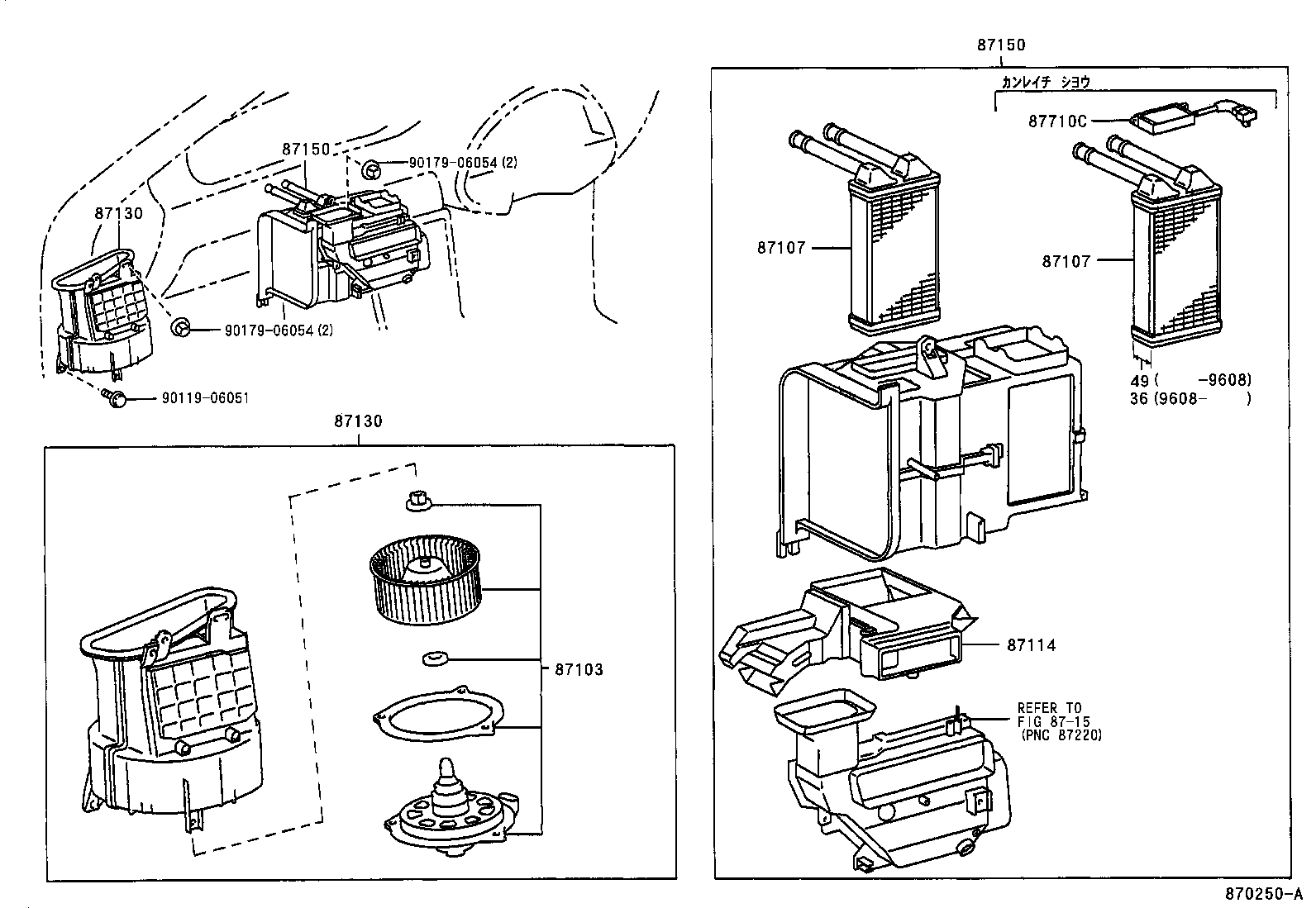

Click highlighted areas on diagram

ﾅｼ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

diagram 87103 87107 87107 87114 87130 87130 8715 87150 87150 87710C 9011906051 9017906054 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-16030

EL5#,NL50

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16230

EL5#

 1
87107-16240

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-42050

EL5#

 1
87107-10340

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16230

EL5#

 1
87107-16240

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-42050

EL5#

 1
87107-10340

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87114 - COVER, HEATER
87114-16060

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87114-16050

EL5#,NL50

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16180

EL5#,NL50

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16180

EL5#,NL50

 1
87150 - RADIATOR ASSY, HEATER
87150-16480

EL5#

 1
87150-16490

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150-16481

EL5#

 1
87150-16491

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-16480

EL5#

 1
87150-16490

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150-16481

EL5#

 1
87150-16491

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
Common parts
90119-06051
90179-06054
Linked diagrams
8715

(9409- )AX,JOI,MOA

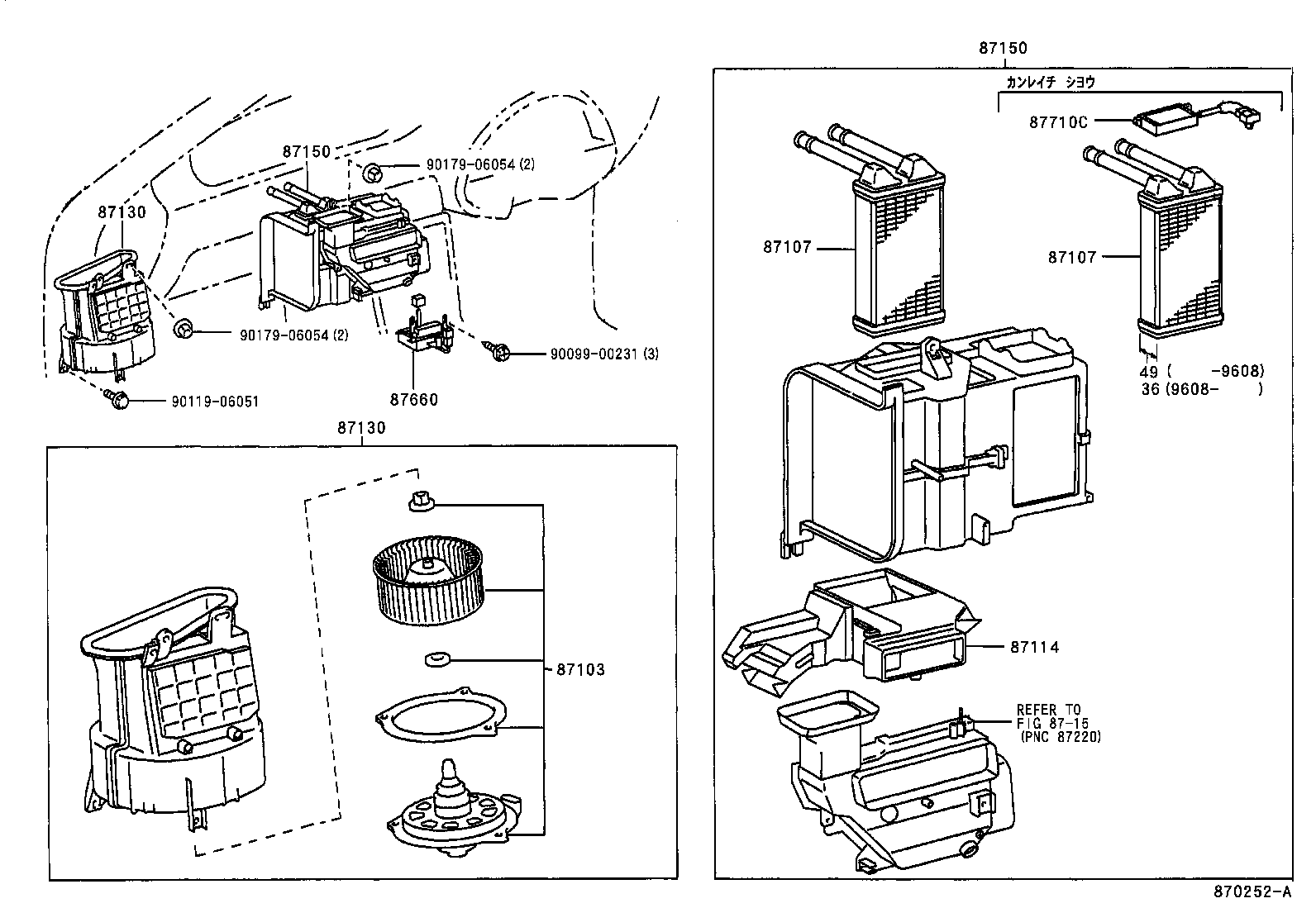

Click highlighted areas on diagram

ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ)

diagram 87103 87107 87107 87114 87130 87130 8715 87150 87150 87660 87710C 9009900231 9011906051 9017906054 9017906054
Part # Description Qty Price
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-16030

EL5#,NL50

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16230

EL5#

 1
87107-16240

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-42050

EL5#

 1
87107-10340

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16230

EL5#

 1
87107-16240

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87107-42050

EL5#

 1
87107-10340

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87114 - COVER, HEATER
87114-16060

EL5#,NL50

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87114-16050

EL5#,NL50

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16180

EL5#,NL50

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16180

EL5#,NL50

 1
87150 - RADIATOR ASSY, HEATER
87150-16480

EL5#

 1
87150-16490

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150-16481

EL5#

 1
87150-16491

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150 - RADIATOR ASSY, HEATER
87150-16480

EL5#

 1
87150-16490

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87150-16481

EL5#

 1
87150-16491

EL5#

ｶﾝﾚｲﾁ ｼﾖｳ,ｲﾗｽﾄｻﾝｼﾖｳ

 1
87660 - SERVO ASSY, AIR CONDITIONER
88660-16050

EL5#,NL50

 1
Common parts
90099-00231
90119-06051
90179-06054
Linked diagrams
8715
