EL55-AGMSK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )EL55

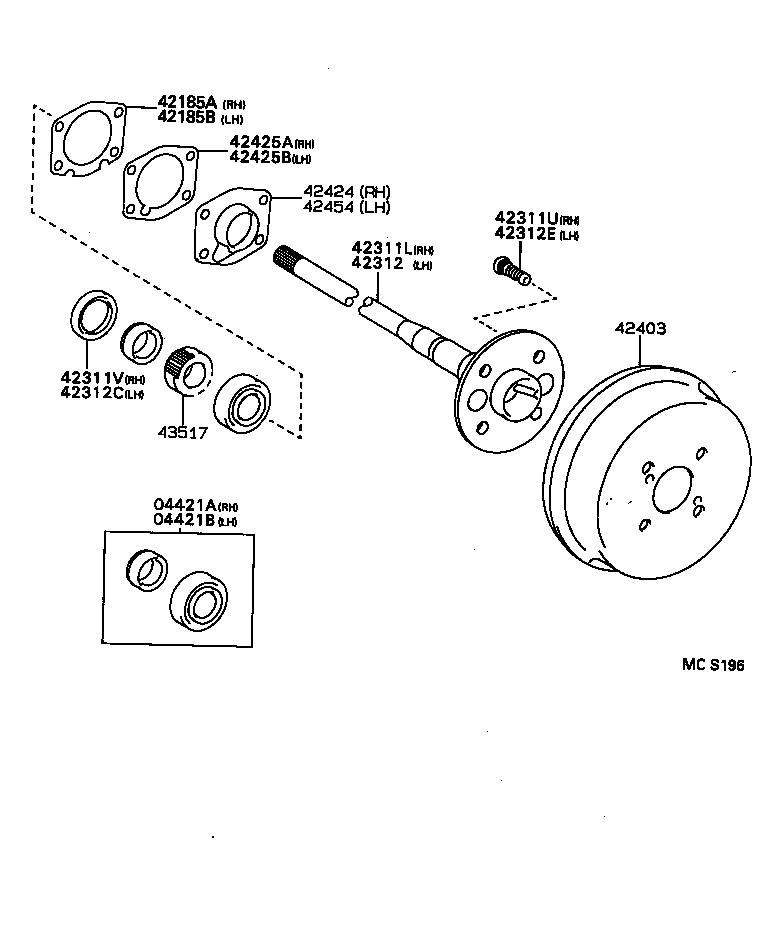

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04421A - BEARING KIT, REAR AXLE SHAFT, RH | ||||
| 04421-12011 |
EL55 |
1 | ||
| 04421B - BEARING KIT, REAR AXLE SHAFT, LH | ||||
| 04421-12011 |
EL55 |
1 | ||
| 42185A - GASKET, REAR AXLE HOUSING END, RH | ||||
| 42185-12010 |
EL55 |
1 | ||
| 42185B - GASKET, REAR AXLE HOUSING END, LH | ||||
| 42185-12010 |
EL55 |
1 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-16060 |
EL55 ｱﾘ(ABS) |
1 | ||
| 42311-16050 |
EL55 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
EL5#,NL50 |
4 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-42055 |
EL55 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-16060 |
EL55 ｱﾘ(ABS) |
1 | ||
| 42311-16050 |
EL55 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-42055 |
EL55 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
EL5#,NL50 |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-16060 |
EL55 |
2 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-20010 |
EL55 |
1 | ||
| 42425A - GASKET, REAR AXLE BEARING RETAINER, RH | ||||
| 42425-20010 |
EL55 |
1 | ||
| 42425B - GASKET, REAR AXLE BEARING RETAINER, LH | ||||
| 42425-20010 |
EL55 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42454-20010 |
EL55 |
1 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-10020 |
EL55 |
2 | ||
