EL55-AGMDK (1994)
Toyota Corsa/Tercel

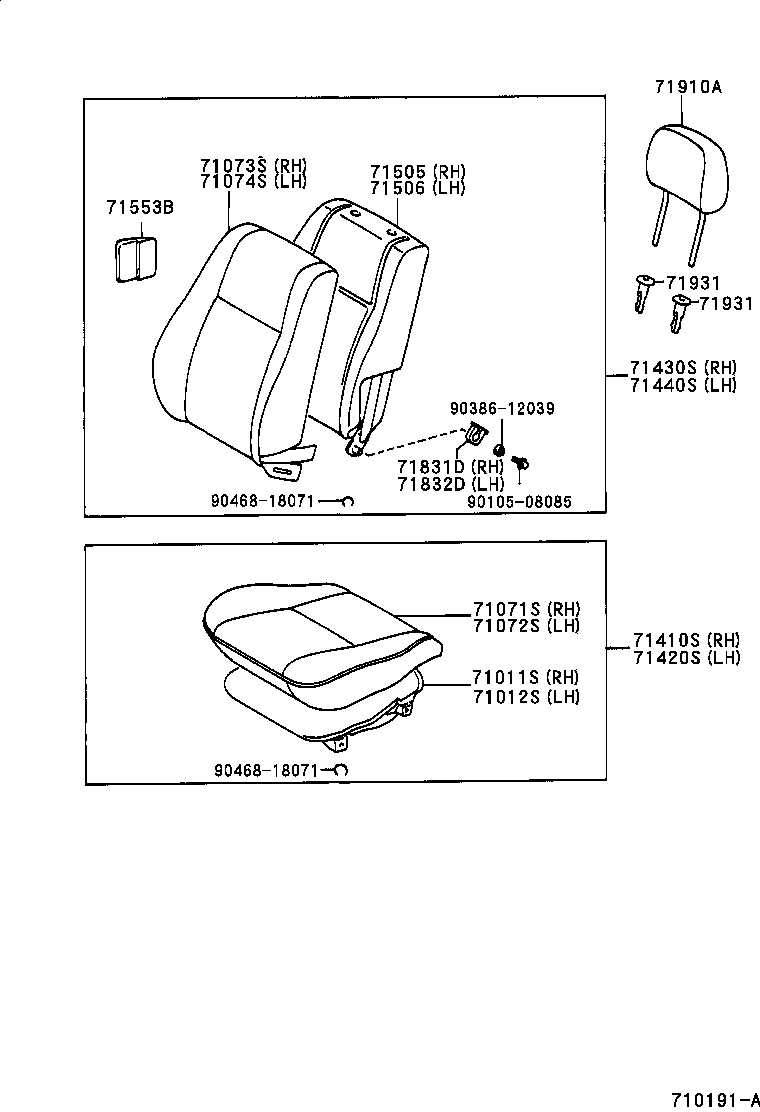

ILLUST NO. 1 OF 2(9409-9608)AX,JOI,MOA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16140 |
EL55..AX,JOI,MOA |
1 | ||
| 71011-16140 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL55 |
1 | ||
| 71012-16080 |
EL5#,NL50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16130B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320B2 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16230B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71518-16320B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16560B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71518-16560E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16130B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16230B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320B2 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71528-16150E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71528-16150B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71528-16140B0 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71528-16140E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G470B0 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G240B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G380B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G470B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G650E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71073-1G650B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71073-1G470E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1G040B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G270B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71074-1G150B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G270E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71074-1G190B0 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G190B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G190E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G220B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400B2 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400B2 |
EL55..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71410-1G510B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G510E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G180B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G290B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G390E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71420-1G400E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420-1G400B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G390B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G510B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G330B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71040-16060E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71040-16050E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71040-16050B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16060B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G280B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-16010E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71440-1G390B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-16010B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-16020B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-16020E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16130 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71505-16130 |
EL55..AX,JOI,MOA |
1 | ||
| 71505-16180 |
EL55..AX,JOI,MOA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-16050 |
EL55..AX,JOI,MOA |
1 | ||
| 71506-16070 |
EL55..AX,JOI,MOA |
1 | ||
| 71506-16050 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16110 |
EL55..AX,JOI,MOA |
2 | ||
| 71553-16110 |
EL5#,NL50 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL55 |
1 | ||
| 71831-16010 |
EL5#,NL50 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16330B1 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16330B4 |
EL5#,NL50..AX,JOI,MOA BLUE GRAY,TRIM1# |
2 | ||
| 71910-16580B0 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16330E0 |
EL5#,NL50..AX,JOI,MOA MD.OAK,TRIM4# |
2 | ||
| 71910-16580E0 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71910-16520B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16580B1 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
ILLUST NO. 2 OF 2(9409-9608)EL51,53,NL50 ; (9409- )EL55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16160B1 |
EL55..AX,JOI,MOA SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16160E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71811-16160B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16110B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16110E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16190B0 |
EL55 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16190B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-16190E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16150B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-16150E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71862-16150B0 |
EL55 BLUISH GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16260 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 72010-16260 |
EL55..AX,JOI,MOA |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16210 |
EL55..3DS..(JOI,MOA) |
1 | ||
| 72020-16210 |
EL51,55,NL50..3DS..(JOI,MOA) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL55 |
1 | ||
| 72123-16050 |
EL5#,NL50 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL5#,NL50 |
1 | ||
| 72124-10060 |
EL55 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16230 |
EL55..AX,JOI,MOA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL55 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL55 |
1 | ||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16210 |
EL55..4DS..VX;EL55..AX,JOI,MOA,VITX |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL55 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL55 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10041P0 |
EL55 GRAY,TRIM1# |
1 | ||
| 72525-10041E0 |
EL55 OAK,TRIM4# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041P0 |
EL55 GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041E0 |
EL55 OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90150-40012 | ||||
| 90167-40044 | ||||
ILLUST NO. 2 OF 2(9409-9608)EL51,53,NL50 ; (9409- )EL55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-16160B1 |
EL55..AX,JOI,MOA SHADOW GRAY,TRIM1# |
1 | ||
| 71811-16160E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71811-16160B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-16110B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 71812-16110B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71812-16110E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16190B0 |
EL55 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-16190B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71861-16190E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-16150B1 |
EL55 SHADOW GRAY,TRIM1# |
1 | ||
| 71862-16150E0 |
EL55 OAK,TRIM4# |
1 | ||
| 71862-16150B0 |
EL55 BLUISH GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16260 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 72010-16260 |
EL55..AX,JOI,MOA |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16210 |
EL55..3DS..(JOI,MOA) |
1 | ||
| 72020-16210 |
EL51,55,NL50..3DS..(JOI,MOA) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL55 |
1 | ||
| 72123-16050 |
EL5#,NL50 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL5#,NL50 |
1 | ||
| 72124-10060 |
EL55 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-22020 |
EL55 外側 |
2 | ||
| 72129-35010 |
EL55 内側 |
2 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16230 |
EL55..AX,JOI,MOA |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL55 |
1 | ||
| 72137-16030 |
EL5#,NL50 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL55 |
1 | ||
| 72138-16030 |
EL5#,NL50 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16210 |
EL55..4DS..VX;EL55..AX,JOI,MOA,VITX |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL55 |
1 | ||
| 72157-16050 |
EL5#,NL50 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL55 |
1 | ||
| 72158-16050 |
EL5#,NL50 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10041P0 |
EL55 GRAY,TRIM1# |
1 | ||
| 72525-10041E0 |
EL55 OAK,TRIM4# |
1 | ||
| 72525-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-10040B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041P0 |
EL55 GRAY,TRIM1# |
1 | ||
| 72526-10041B0 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526-10041E0 |
EL55 OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90150-40012 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
ILLUST NO. 1 OF 2(9608- )EL55..AX,JOI,MOA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16140 |
EL55..AX,JOI,MOA |
1 | ||
| 71011-16140 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16080 |
EL55 |
1 | ||
| 71012-16080 |
EL5#,NL50 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-16130B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320B2 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16230B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71518-16320B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16560B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71518-16560E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71518-16130B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16230B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71518-16320B2 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71528-16150E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71528-16150B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71528-16140B0 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71528-16140E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1G470B0 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G240B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G380B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G470B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71073-1G650E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71073-1G650B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71073-1G470E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-1G040B0 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G270B0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71074-1G150B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G270E0 |
EL55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71074-1G190B0 |
EL55..3DS..(JOI,MOA) BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G190B2 |
EL55..AX,JOI,MOA BLUISH GRAY,TRIM1# |
1 | ||
| 71074-1G190E0 |
EL55..AX,JOI,MOA OAK,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G220B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400B2 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400B2 |
EL55..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-1G400E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71410-1G510B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-1G510E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1G180B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G290B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71420-1G390E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71420-1G400E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71420-1G400B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-1G390B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G510B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430-1G330B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71040-16060E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71040-16050E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71040-16050B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71040-16060B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G280B0 |
EL5#,NL50..AX,JOI,MOA ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-16010E0 |
EL55..AX,JOI,MOA ***,OAK,TRIM4# |
1 | ||
| 71440-1G390B0 |
EL55..3DS..(JOI,MOA) ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71070-16010B0 |
EL55..AX,JOI,MOA ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-16020B0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71070-16020E0 |
EL55..AX,JOI,MOA ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-16130 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71505-16130 |
EL55..AX,JOI,MOA |
1 | ||
| 71505-16180 |
EL55..AX,JOI,MOA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-16050 |
EL55..AX,JOI,MOA |
1 | ||
| 71506-16070 |
EL55..AX,JOI,MOA |
1 | ||
| 71506-16050 |
EL5#,NL50..AX,JOI,MOA |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16110 |
EL55..AX,JOI,MOA |
2 | ||
| 71553-16110 |
EL5#,NL50 |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL55 |
1 | ||
| 71831-16010 |
EL5#,NL50 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
EL55 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-16330B1 |
EL5#,NL50..AX,JOI,MOA BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16330B4 |
EL5#,NL50..AX,JOI,MOA BLUE GRAY,TRIM1# |
2 | ||
| 71910-16580B0 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16330E0 |
EL5#,NL50..AX,JOI,MOA MD.OAK,TRIM4# |
2 | ||
| 71910-16580E0 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71910-16520B0 |
EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱ ｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽ ｴｸｽﾄﾗ,BLUISH GRAY,TRIM1# |
2 | ||
| 71910-16580B1 |
EL51,55..AX,JOI,MOA ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070B7 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-10070B2 |
EL5#,NL50 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-10020B2 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-10020B6 |
EL5#,NL50 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
