EL55-AEPXK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4EFE,5EFE

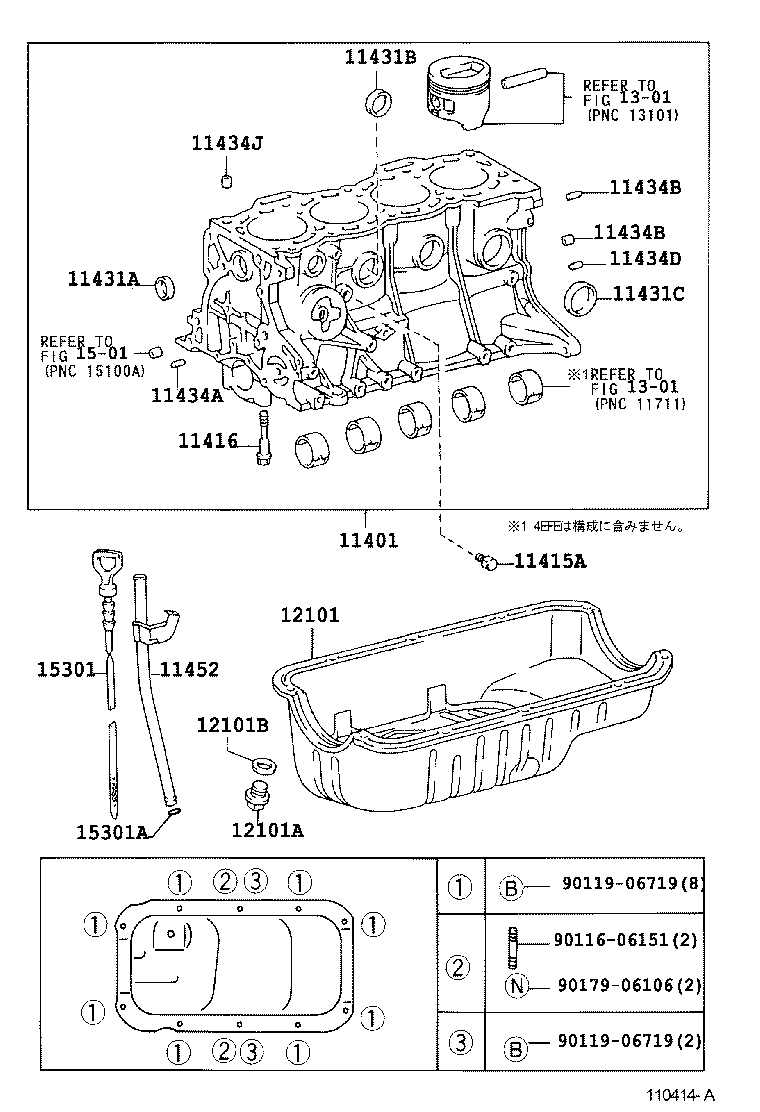

Click highlighted areas on diagram

diagram 11401 11415A 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1301 1501 15301 15301A 9011606151 9011906719 9011906719 9017906106
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19599

5EFE..EL53,55

 1
11401-19598

5EFE..EL53,55

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

4EFE,5EFE..EL5#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10007

5EFE..EL53,55

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

4EFE,5EFE..EL5#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

4EFE,5EFE..EL5#

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

4EFE,5EFE..EL5#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

4EFE,5EFE..EL5#

長さ=11,外径=6

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

4EFE,5EFE..EL5#

長さ=20,外径=10

 1
90253-15003

4EFE,5EFE..EL5#

長さ=17,外径=15

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10017

4EFE,5EFE..EL5#

長さ=20,外径=10

 1
90253-15003

4EFE,5EFE..EL5#

長さ=17,外径=15

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

4EFE,5EFE..EL5#

長さ=11,外径=6

 1
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

4EFE,5EFE..EL5#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-11040

4EFE,5EFE..EL5#

 1
11452-11041

4EFE,5EFE..EL5#

 1
12101 - PAN SUB-ASSY, OIL
12101-11090

5EFE..EL55

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

4EFE,5EFE..EL5#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

4EFE,5EFE..EL5#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11050

4EFE,5EFE..EL5#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96721-19010

4EFE,5EFE..EL5#

 1
96711-19010

4EFE,5EFE..EL5#

 1
Common parts
90116-06151
90119-06719
90179-06106
Linked diagrams
1301
1501
