EL55-AEMXK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

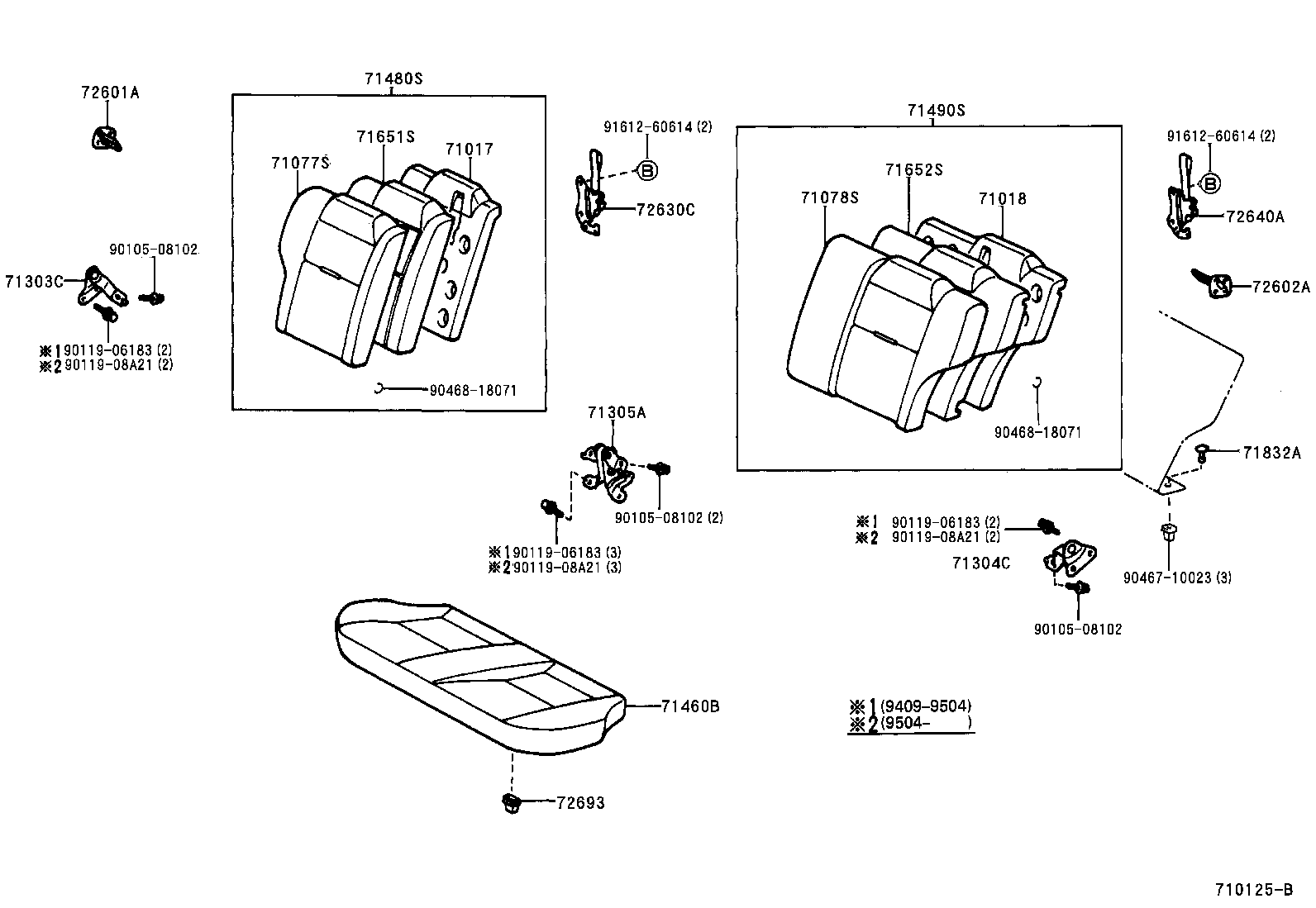

(9409-9712)4DS..VITX,VX

Click highlighted areas on diagram

diagram 71017 71018 71077S 71078S 71303C 71304C 71305A 71460B 71480S 71490S 71651S 71652S 71832A 72601A 72602A 72630C 72640A 72693 9010508102 9010508102 9010508102 9011906183 9011906183 9011906183 9011908A21 9011908A21 9011908A21 9046710023 9046818071 9046818071 9161260614 9161260614
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-16270

EL53,55..4DS..(VITX,VX)

 1
71017-16200

EL53,55,NL50..4DS..(VITX,VX)

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-16140

EL53,55..4DS..(VITX,VX)

 1
71018-16110

EL53,55,NL50..4DS..(VITX,VX)

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1G730B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S190B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S040B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S190E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1G050B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71078-1G100B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71078-1G140E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71078-1G120B0

EL53,55,NL50..4DS..(VITX,VX)

SHADOW GRAY,TRIM1#

 1
71078-1G140B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-16050

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71303-16070

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71303-16070

EL53,55..4DS..(VITX,VX)

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-16050

EL53,55..4DS..(VITX,VX)

 1
71304-16010

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71304-16050

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
71305-16070

EL53,55,NL50..4DS..(VITX,VX)

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G020B0

EL55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71460-1G290B0

EL55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71460-1G400B0

EL55..4DS..(VITX,VX)

SHADOW GRAY,TRIM1#

 1
71460-1G400E0

EL55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1S240E0

EL53,55..4DS..(VITX,VX)

***,OAK,TRIM4#

 1
71480-1G850B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71480-1S240B0

EL53,55..4DS..(VITX,VX)

***,SHADOW GRAY,TRIM1#

 1
71480-1S120B0

EL53,55,NL50..4DS..(VITX,VX)

***,BLUISH GRAY,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1G150B0

EL53,55..4DS..(VITX,VX)

***,SHADOW GRAY,TRIM1#

 1
71490-1G110B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71490-1G150E0

EL53,55..4DS..(VITX,VX)

***,OAK,TRIM4#

 1
71490-1G100B0

EL53,55,NL50..4DS..(VITX,VX)

***,BLUISH GRAY,TRIM1#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-16390

EL53,55..4DS..(VITX,VX)

 1
71651-16350

EL53,55,NL50..4DS..(VITX,VX)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-16180

EL53,55..4DS..(VITX,VX)

 1
71652-16160

EL53,55,NL50..4DS..(VITX,VX)

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0702622

EL51,NL50..3DS;EL55..3DS..JOI;EL53,55..CYN,MOA,VITX,VX

BLACK,TRIM1#,4#

 3
90467-0702622

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

BLACK,TRIM1#

 3
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-16110

EL53,55..4DS..(VITX,VX)

 1
72601-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
72601-16110

EL53,55..4DS..(VITX,VX)

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-16180B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72630-16230E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
72630-16230B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72630-16230B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72630-16230E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
72630-16180B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL5#,NL50

 2
Common parts
90105-08102
90119-06183
90119-08A21
90467-10023
90468-18071
91612-60614

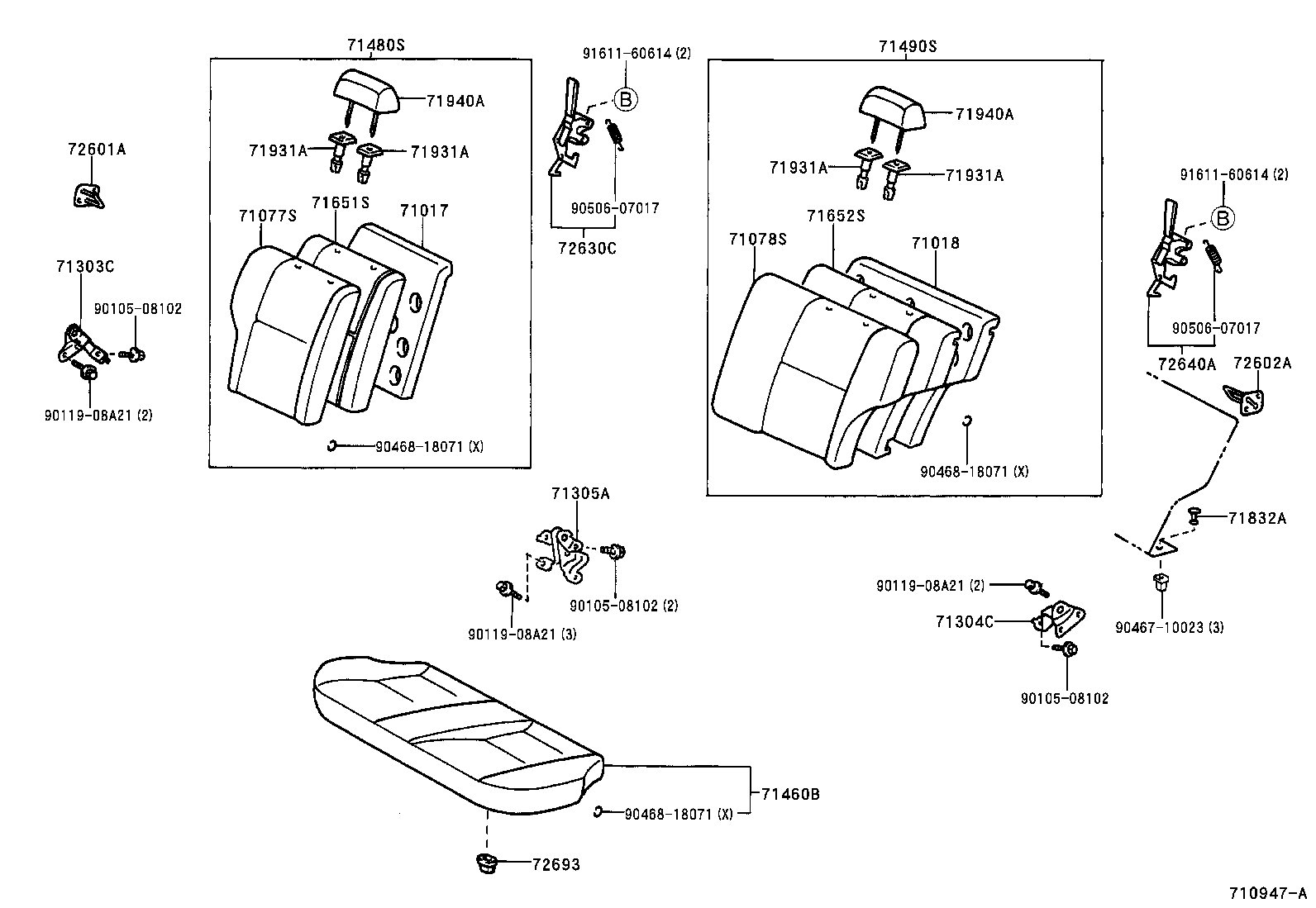

(9712- )4DS..VITX,VX

Click highlighted areas on diagram

diagram 71017 71018 71077S 71078S 71303C 71304C 71305A 71460B 71480S 71490S 71651S 71652S 71832A 71931A 71931A 71931A 71931A 71940A 71940A 72601A 72602A 72630C 72640A 72693 9010508102 9010508102 9010508102 9011908A21 9011908A21 9011908A21 9046710023 9046818071 9046818071 9046818071 9050607017 9050607017 9161160614 9161160614
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-16270

EL53,55..4DS..(VITX,VX)

 1
71017-16200

EL53,55,NL50..4DS..(VITX,VX)

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-16140

EL53,55..4DS..(VITX,VX)

 1
71018-16110

EL53,55,NL50..4DS..(VITX,VX)

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-1G730B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S190B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S040B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71077-1S190E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-1G050B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71078-1G100B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71078-1G140E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71078-1G120B0

EL53,55,NL50..4DS..(VITX,VX)

SHADOW GRAY,TRIM1#

 1
71078-1G140B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-16050

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71303-16070

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71303-16070

EL53,55..4DS..(VITX,VX)

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-16050

EL53,55..4DS..(VITX,VX)

 1
71304-16010

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71304-16050

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

 1
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
71305-16070

EL53,55,NL50..4DS..(VITX,VX)

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-1G020B0

EL55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71460-1G290B0

EL55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71460-1G400B0

EL55..4DS..(VITX,VX)

SHADOW GRAY,TRIM1#

 1
71460-1G400E0

EL55..4DS..(VITX,VX)

OAK,TRIM4#

 1
71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)
71480-1S240E0

EL53,55..4DS..(VITX,VX)

***,OAK,TRIM4#

 1
71480-1G850B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71480-1S240B0

EL53,55..4DS..(VITX,VX)

***,SHADOW GRAY,TRIM1#

 1
71480-1S120B0

EL53,55,NL50..4DS..(VITX,VX)

***,BLUISH GRAY,TRIM1#

 1
71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)
71490-1G150B0

EL53,55..4DS..(VITX,VX)

***,SHADOW GRAY,TRIM1#

 1
71490-1G110B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
71490-1G150E0

EL53,55..4DS..(VITX,VX)

***,OAK,TRIM4#

 1
71490-1G100B0

EL53,55,NL50..4DS..(VITX,VX)

***,BLUISH GRAY,TRIM1#

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-16390

EL53,55..4DS..(VITX,VX)

 1
71651-16350

EL53,55,NL50..4DS..(VITX,VX)

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-16180

EL53,55..4DS..(VITX,VX)

 1
71652-16160

EL53,55,NL50..4DS..(VITX,VX)

 1
71832A - CLIP, REAR SEAT BACK CARPET OR MAT
90467-0702622

EL51,NL50..3DS;EL55..3DS..JOI;EL53,55..CYN,MOA,VITX,VX

BLACK,TRIM1#,4#

 3
90467-0702622

EL51..3DS;EL55,NL50..3DS..JOI;EL53,55,NL50..CYN,MOA,VITX,VX

BLACK,TRIM1#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71931-32020B2

EL5#,NL50

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

EL5#,NL50

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
71930-44010E3

EL5#,NL50

ﾛｯｸ付,MD.OAK,TRIM4#

 2
71931-32020E6

EL5#,NL50

ﾛｯｸ無,MD.OAK,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-32020B2

EL5#,NL50

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

EL5#,NL50

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
71930-44010E3

EL5#,NL50

ﾛｯｸ付,MD.OAK,TRIM4#

 2
71931-32020E6

EL5#,NL50

ﾛｯｸ無,MD.OAK,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-32020B2

EL5#,NL50

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

EL5#,NL50

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
71930-44010E3

EL5#,NL50

ﾛｯｸ付,MD.OAK,TRIM4#

 2
71931-32020E6

EL5#,NL50

ﾛｯｸ無,MD.OAK,TRIM4#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-32020B2

EL5#,NL50

ﾛｯｸ無,BLUE GRAY,TRIM1#

 2
71930-44010B0

EL5#,NL50

ﾛｯｸ付,BLUE GRAY,TRIM1#

 2
71930-44010E3

EL5#,NL50

ﾛｯｸ付,MD.OAK,TRIM4#

 2
71931-32020E6

EL5#,NL50

ﾛｯｸ無,MD.OAK,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-16070B0

EL53,55..CYN,VITX,VX

BLUISH GRAY,TRIM1#

 2
71940-16070E0

EL53,55..CYN,VITX,VX

OAK,TRIM4#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-16070B0

EL53,55..CYN,VITX,VX

BLUISH GRAY,TRIM1#

 2
71940-16070E0

EL53,55..CYN,VITX,VX

OAK,TRIM4#

 2
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-16110

EL53,55..4DS..(VITX,VX)

 1
72601-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72601-16080

EL53,55,NL50..4DS..(VITX,VX)

 1
72601-16110

EL53,55..4DS..(VITX,VX)

 1
72630C - LOCK ASSY, REAR SEAT BACK, RH
72630-16180B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72630-16230E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
72630-16230B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72640A - LOCK ASSY, REAR SEAT BACK, LH
72630-16230B0

EL53,55..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72630-16230E0

EL53,55..4DS..(VITX,VX)

OAK,TRIM4#

 1
72630-16180B0

EL53,55,NL50..4DS..(VITX,VX)

BLUISH GRAY,TRIM1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-20040

EL5#,NL50

 2
Common parts
90105-08102
90119-08A21
90467-10023
90468-18071
90506-07017
91611-60614
