EL53-BGPSK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409-9712)CRS

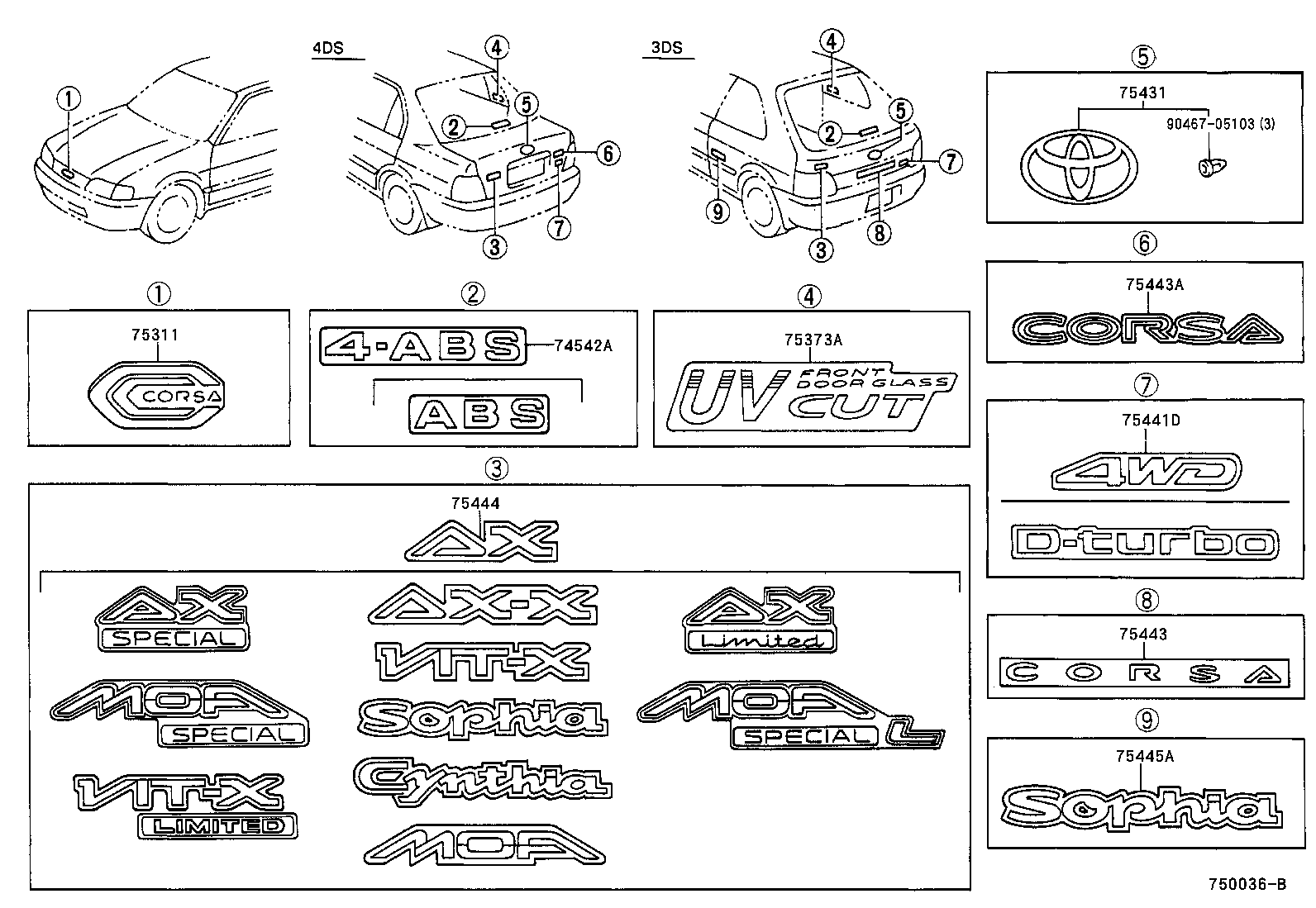

Click highlighted areas on diagram

diagram 74542A 75311 75373A 75431 75441D 75443 75443A 75444 75445A 9046705103
Part # Description Qty Price
74542A - PLATE, REAR WINDOW MARK
74542-16341

EL5#,NL50

ABS

 1
74542-16340

EL5#,NL50

4−ABS

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16630

EL5#,NL50..CRS..3DS

 1
75311-16550

EL5#,NL50..CRS

 1
75373A - PLATE, QUARTER WINDOW MARK
75373-16140

EL5#,NL50

UV CUT

 1
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75441-16310

EL5#,NL50..3DS

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-16170

EL5#,NL50..CRS..3DS

CORSA

 1
75443-16200

EL5#,NL50..CRS..3DS

CORSA

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-16810

EL53,55..CYN

CYNTHIA

 1
Common parts
90467-05103

(9712- )CRS

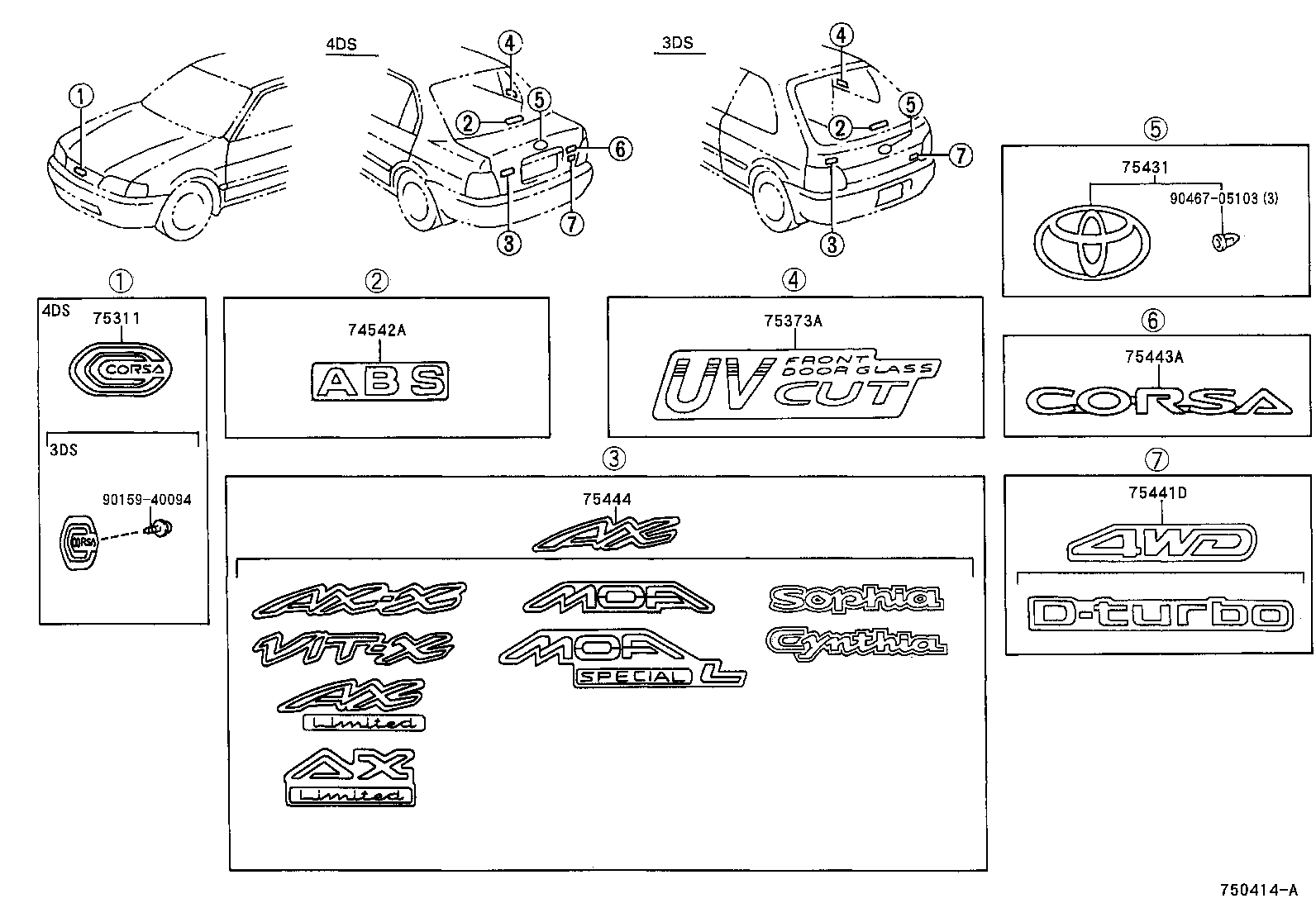

Click highlighted areas on diagram

diagram 74542A 75311 75373A 75431 75441D 75443A 75444 9015940094 9046705103
Part # Description Qty Price
74542A - PLATE, REAR WINDOW MARK
74542-16341

EL5#,NL50

ABS

 1
74542-16340

EL5#,NL50

4−ABS

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-16630

EL5#,NL50..CRS..3DS

 1
75311-16550

EL5#,NL50..CRS

 1
75373A - PLATE, QUARTER WINDOW MARK
75373-16140

EL5#,NL50

UV CUT

 1
75431 - EMBLEM, LUGGAGE COMPARTMENT DOOR
75441-16310

EL5#,NL50..3DS

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-16810

EL53,55..CYN

CYNTHIA

 1
Common parts
90159-40094
90467-05103
