EL53-BEPXK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4FC

Click highlighted areas on diagram

A242L,A244F,A241E

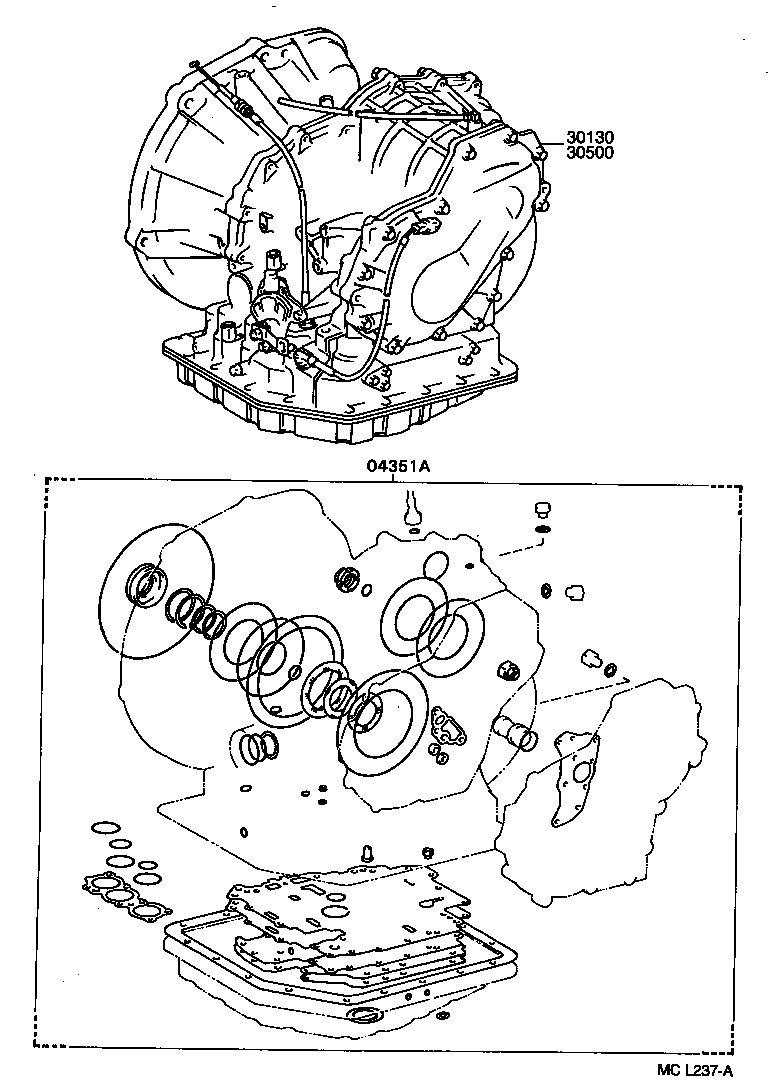

diagram 04351A 30130 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-16070

EL53,55,NL50..4FC

 1
30130 - TRANSAXLE ASSY, REBUILT
30130-16471

EL53..4FC

 1
30130-16470

EL53..4FC

 1
30130-16650

EL53..4FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-16470

EL53..4FC

 1
30500-16471

EL53..4FC

 1
30500-16650

EL53..4FC

 1
