Toyota Corsa/tercel EL53 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
CORSA/TERCEL
EL53-BEPDK (1994)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EL53-BEPDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

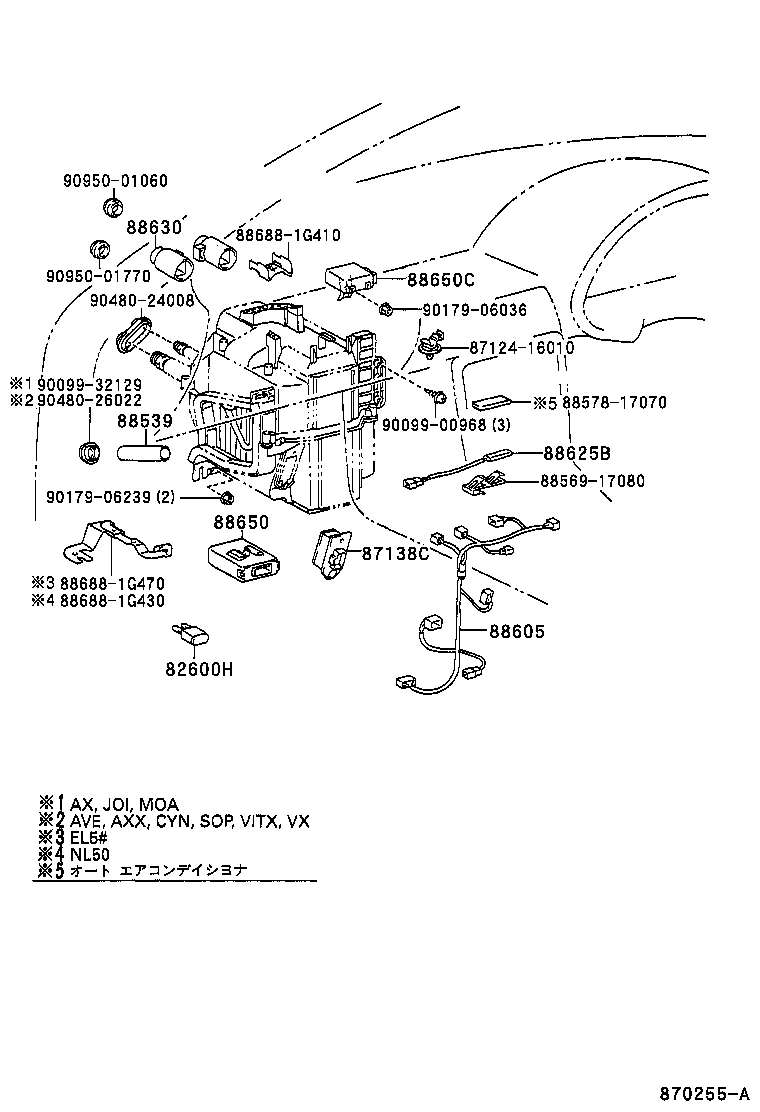

ILLUST NO. 1 OF 3(9409-9608)

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09009	EL5#,NL50 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/1994 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-16150	EL5#,NL50 ｵ-ﾄｴｱｺﾝ	09/1994 - 08/1996	1
87138-16140	EL5#	12/1997 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16040	EL5#,NL50	09/1994 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1G880	EL5#	09/1994 - 08/1996	1
88605-1S310	EL5#..AX,JOI,MOA	08/1996 - 12/2999	1
88605-1S110	EL5#..AX,JOI,MOA ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	09/1994 - 08/1996	1
88625B - THERMISTOR, COOLER NO.3
88625-16180	EL5#,NL50..AX,JOI,MOA	09/1994 - 08/1996	1
88630 - RELAY ASSY, COOLER
88630-95702	EL5#,NL50	09/1994 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16620	EL5#	09/1994 - 08/1996	1
88650-10470	EL5#	08/1996 - 12/2999	1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-16610	EL5#,NL50	09/1994 - 08/1996	1
Common parts
87124-16010
88569-17080
88578-17070
88688-1G410
88688-1G430
88688-1G470
90099-00968
90099-32129
90179-06036
90179-06239
90480-24008
90480-26022
90950-01060
90950-01770

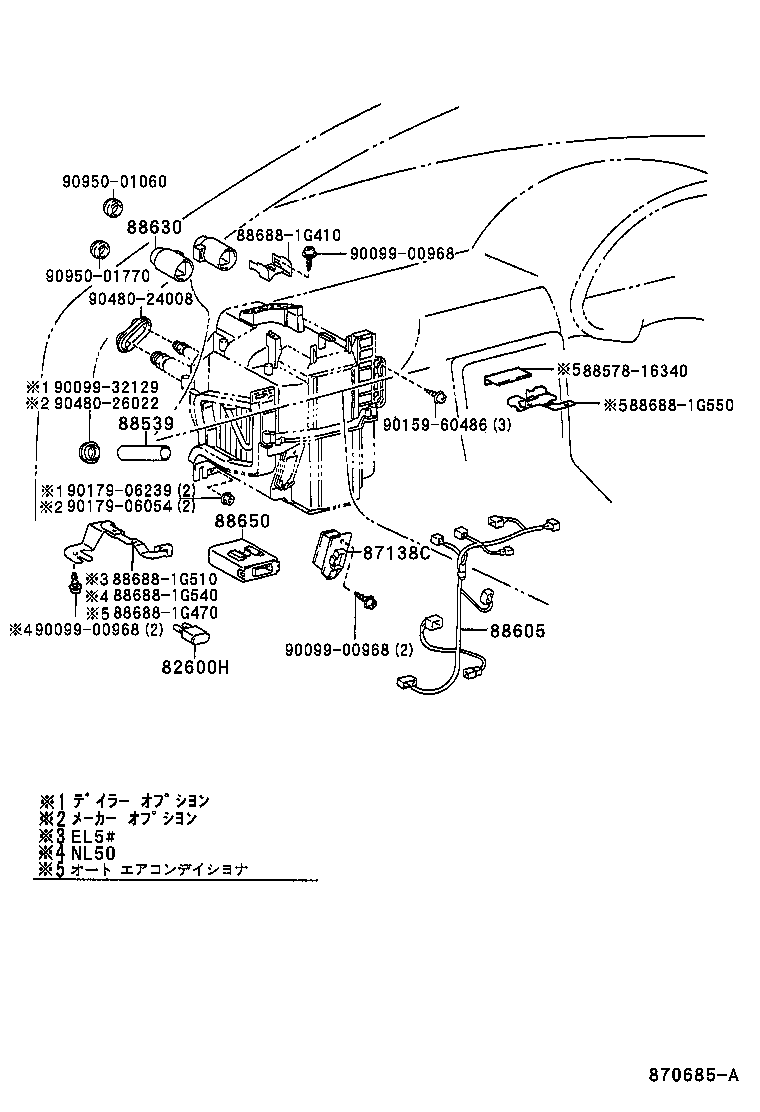

ILLUST NO. 1 OF 3(9608- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09009	EL5#,NL50 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/1994 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-16150	EL5#,NL50 ｵ-ﾄｴｱｺﾝ	09/1994 - 08/1996	1
87138-16140	EL5#	12/1997 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-16040	EL5#,NL50	09/1994 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1G880	EL5#	09/1994 - 08/1996	1
88605-1S310	EL5#..AX,JOI,MOA	08/1996 - 12/2999	1
88605-1S110	EL5#..AX,JOI,MOA ﾃﾞｲ-ﾗ- ｵﾌﾟｼﾖﾝ	09/1994 - 08/1996	1
88630 - RELAY ASSY, COOLER
88630-95702	EL5#,NL50	09/1994 - 12/2999	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16620	EL5#	09/1994 - 08/1996	1
88650-10470	EL5#	08/1996 - 12/2999	1
Common parts
88578-16340
88688-1G410
88688-1G470
88688-1G510
88688-1G540
88688-1G550
90099-00968
90099-32129
90159-60486
90179-06054
90179-06239
90480-24008
90480-26022
90950-01060
90950-01770

ILLUST NO. 2 OF 3(9608-9712) ; (9712- )AX,JOI,MOA

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16131	EL5#,NL50	01/1995 - 08/1996	1
88501-10140	EL5#,NL50..AX,JOI,MOA	12/1997 - 11/1998	1
88501-10140	EL5#..AX,JOI,MOA	08/1996 - 12/1997	1
88501-16160	EL5#	11/1998 - 12/2999	1
88501-16130	EL5#,NL50	09/1994 - 01/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16170	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16170	EL5#,NL50	09/1994 - 12/1997	1
88521-16010	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-16180	EL5#,NL50	09/1994 - 12/1997	1
88502-16180	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16240	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-16650	EL5#,NL50	09/1994 - 08/1996	1
88510-1G090	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88510-1G040	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88510-1G040	EL5#	08/1996 - 12/1997	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EL5#,NL50	09/1994 - 12/1997	1
88515-20100	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88515-16060	EL5# ｱﾘ(ｴｱﾌｲﾙﾀ)	11/1998 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-12230	EL5#,NL50	09/1994 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16250	EL5#,NL50	09/1994 - 12/1997	1
88710-16380	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88710-16250	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
Common parts
87116-14010
88578-16280
88578-16290
88626-28010
90099-00968
90099-04381

ILLUST NO. 2 OF 3(9712- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
87529 - PLATE, AIR FILTER CAUTION
87529-50020	EL5#	11/1998 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16131	EL5#,NL50	01/1995 - 08/1996	1
88501-10140	EL5#,NL50..AX,JOI,MOA	12/1997 - 11/1998	1
88501-10140	EL5#..AX,JOI,MOA	08/1996 - 12/1997	1
88501-16160	EL5#	11/1998 - 12/2999	1
88501-16130	EL5#,NL50	09/1994 - 01/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16170	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16170	EL5#,NL50	09/1994 - 12/1997	1
88521-16010	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-16180	EL5#,NL50	09/1994 - 12/1997	1
88502-16180	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16240	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-16010	EL5#	11/1998 - 12/2999	2
88510 - UNIT ASSY, COOLER
88510-16650	EL5#,NL50	09/1994 - 08/1996	1
88510-1G090	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88510-1G040	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88510-1G040	EL5#	08/1996 - 12/1997	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EL5#,NL50	09/1994 - 12/1997	1
88515-20100	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88515-16060	EL5# ｱﾘ(ｴｱﾌｲﾙﾀ)	11/1998 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-12230	EL5#,NL50	09/1994 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16250	EL5#,NL50	09/1994 - 12/1997	1
88710-16380	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88710-16250	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88892J - COVER SUB-ASSY
88892-16160	EL5#	11/1998 - 12/2999	1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-16040	EL5#	11/1998 - 12/2999	1
Common parts
87116-14010
88578-16280
88578-16290
88626-28010
88718-16790
90099-00968
90099-04497

ILLUST NO. 2 OF 3(9409-9608)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16131	EL5#,NL50	01/1995 - 08/1996	1
88501-10140	EL5#,NL50..AX,JOI,MOA	12/1997 - 11/1998	1
88501-10140	EL5#..AX,JOI,MOA	08/1996 - 12/1997	1
88501-16160	EL5#	11/1998 - 12/2999	1
88501-16130	EL5#,NL50	09/1994 - 01/1995	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16170	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16170	EL5#,NL50	09/1994 - 12/1997	1
88521-16010	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-16180	EL5#,NL50	09/1994 - 12/1997	1
88502-16180	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88502-16240	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88510 - UNIT ASSY, COOLER
88510-16650	EL5#,NL50	09/1994 - 08/1996	1
88510-1G090	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88510-1G040	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88510-1G040	EL5#	08/1996 - 12/1997	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EL5#,NL50	09/1994 - 12/1997	1
88515-20100	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
88515-16060	EL5# ｱﾘ(ｴｱﾌｲﾙﾀ)	11/1998 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-12230	EL5#,NL50	09/1994 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16250	EL5#,NL50	09/1994 - 12/1997	1
88710-16380	EL5#..AX,JOI,MOA ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	11/1998 - 12/2999	1
88710-16250	EL5#,NL50..AX,JOI,MOA	12/1997 - 12/2999	1
Common parts
87116-14010
88578-16280
88578-16290
88626-28010
90099-00968
90099-04381

ILLUST NO. 3 OF 3(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
