EL53-BEPDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

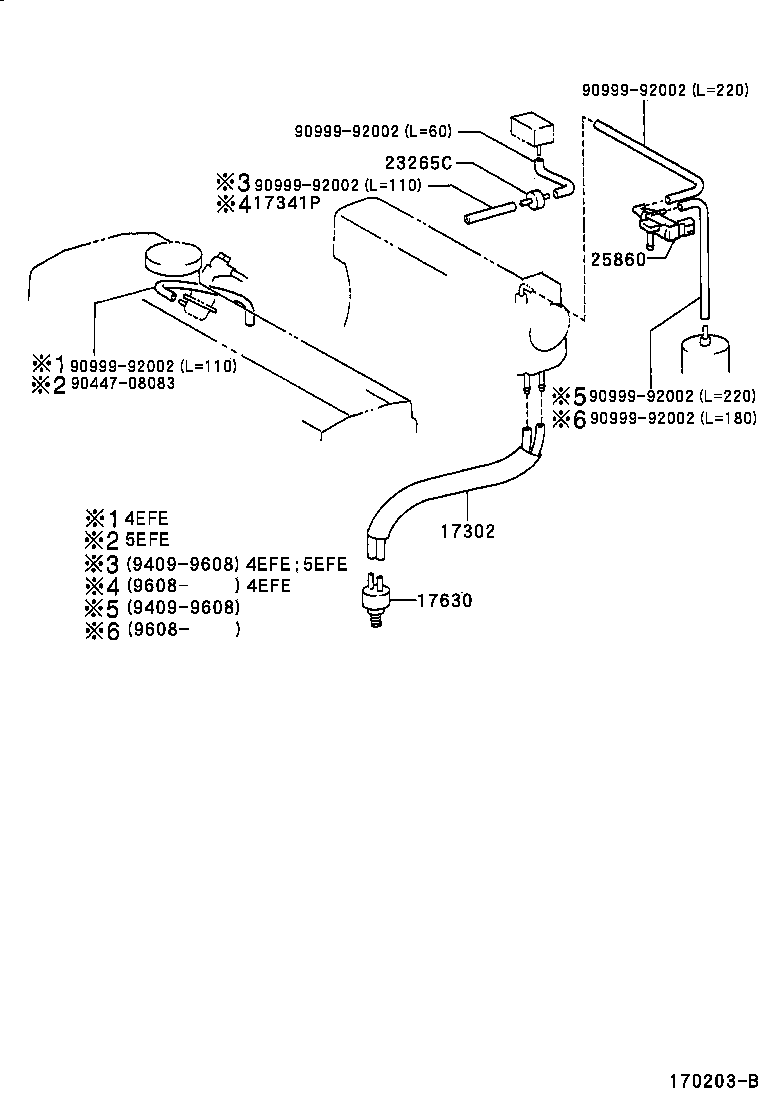

(9409- )4EFE,5EFE

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9409-9712)4EFE,5EFE

Click highlighted areas on diagram

diagram 17302 17341P 17630 23265C 25860 9044708083 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-11010

4EFE,5EFE..EL5#

 1
17302-11011

4EFE,5EFE..EL5#

 1
17341P - HOSE, AIR
17341-11400

4EFE,5EFE..EL5#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-11070

4EFE,5EFE..EL5#

 1
23265C - FILTER, GAS
90917-11030

4EFE,5EFE..EL5#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-11320

4EFE,5EFE..EL5#

 1
Common parts
90447-08083
90999-92002

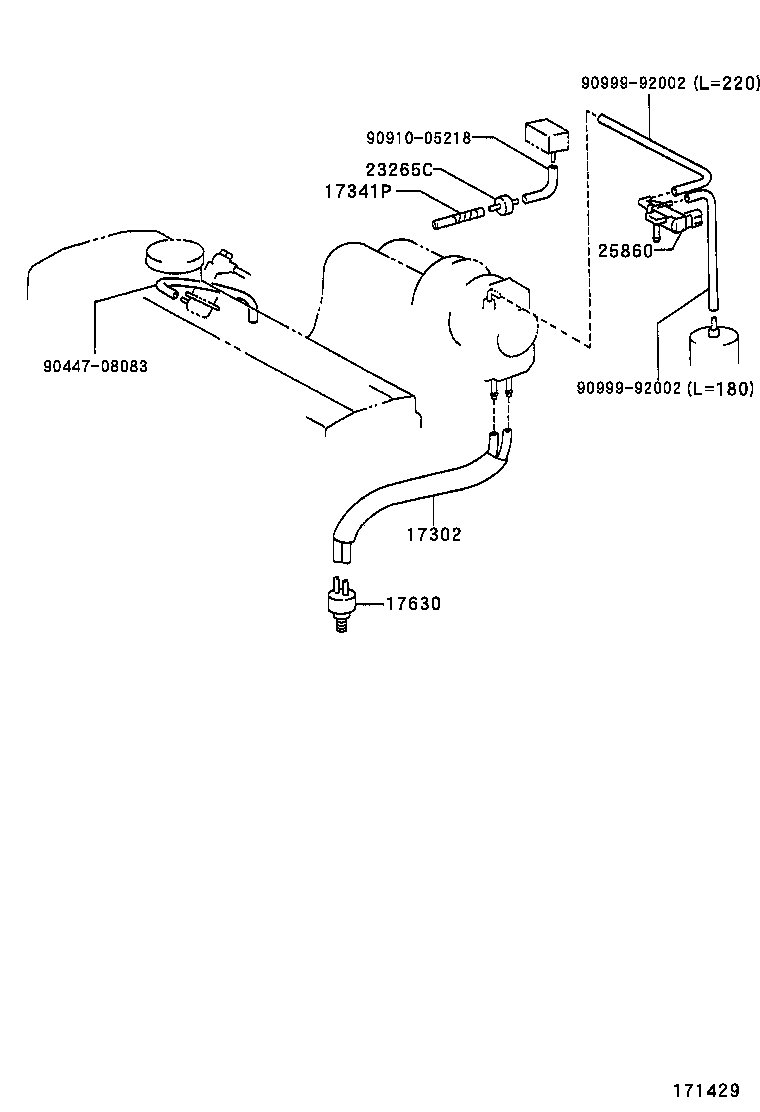

(9712- )4EFE,5EFE

Click highlighted areas on diagram

diagram 17302 17341P 17630 23265C 25860 9044708083 9091005218 9099992002 9099992002
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-11010

4EFE,5EFE..EL5#

 1
17302-11011

4EFE,5EFE..EL5#

 1
17341P - HOSE, AIR
17341-11400

4EFE,5EFE..EL5#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-11070

4EFE,5EFE..EL5#

 1
23265C - FILTER, GAS
90917-11030

4EFE,5EFE..EL5#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-11320

4EFE,5EFE..EL5#

 1
Common parts
90447-08083
90910-05218
90999-92002
