Toyota Corsa/tercel EL53 MANIFOLD

EL53-BEPDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

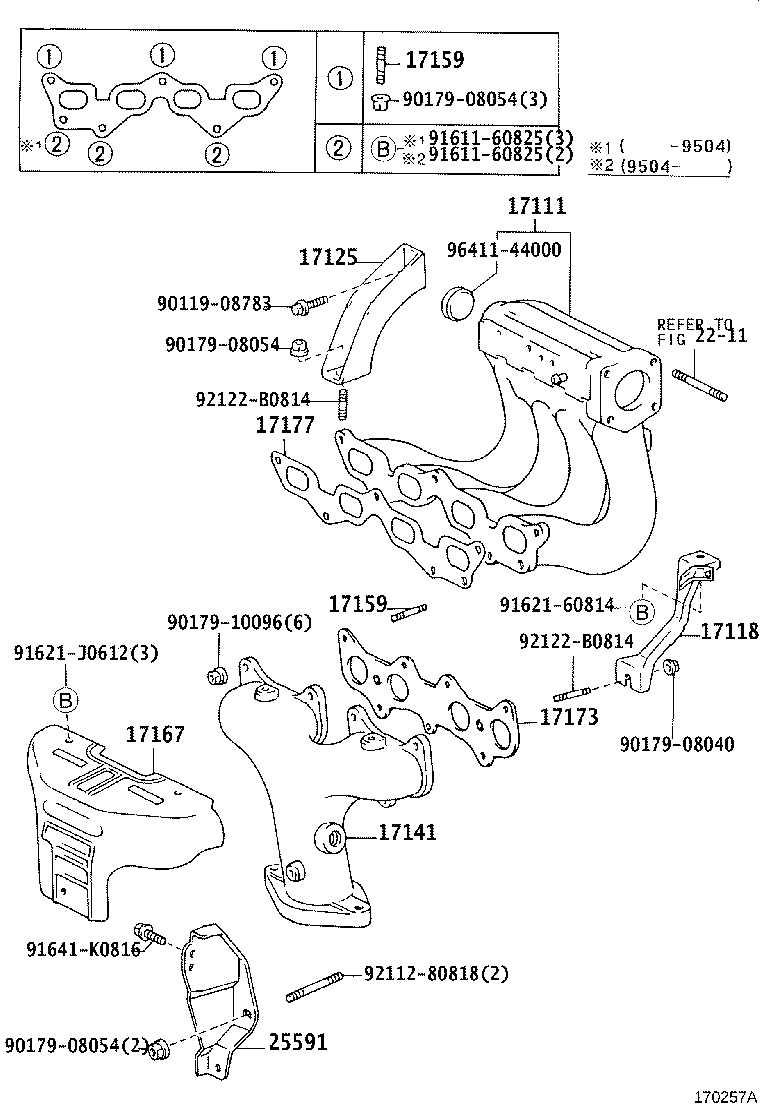

(9409-9608)4EFE,5EFE..EL51,53 ; (9608-9712)5EFE..EL53

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11380	5EFE..EL53,55	12/1997 - 12/2999	1
17101-11321	5EFE..EL53,55	08/1996 - 12/1997	1
17101-11321	4EFE,5EFE..EL5#	04/1995 - 08/1996	1
17101-11320	4EFE,5EFE..EL5#	09/1994 - 04/1995	1
17118 - STAY, MANIFOLD
17118-11270	5EFE..EL53,55	08/1996 - 12/1997	1
17118-11290	5EFE..EL53	12/1997 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-11050	4EFE,5EFE..EL5#	09/1994 - 08/1996	1
17125-11060	4EFE,5EFE..EL5#	12/1997 - 12/2999	1
17125-11050	5EFE..EL53,55	08/1996 - 12/1997	1
17141 - MANIFOLD, EXHAUST
17141-11300	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	02/1995 - 12/2999	6
92122-61025	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	09/1994 - 02/1995	6
92132-60825	4EFE,5EFE..EL5# ｲﾝﾃｰｸﾏﾆﾎﾙﾄﾞ	09/1994 - 12/2999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	02/1995 - 12/2999	6
92122-61025	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	09/1994 - 02/1995	6
92132-60825	4EFE,5EFE..EL5# ｲﾝﾃｰｸﾏﾆﾎﾙﾄﾞ	09/1994 - 12/2999	3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11310	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11050	5EFE..EL53,55	09/1994 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11070	4EFE,5EFE..EL5#	04/1995 - 12/2999	1
17177-11021	4EFE,5EFE..EL5#	09/1994 - 04/1995	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-11080	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
Common parts
90119-08783
90179-08040
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
91641-K0816
92112-80818
92122-B0814
96411-44000
Linked diagrams
2211

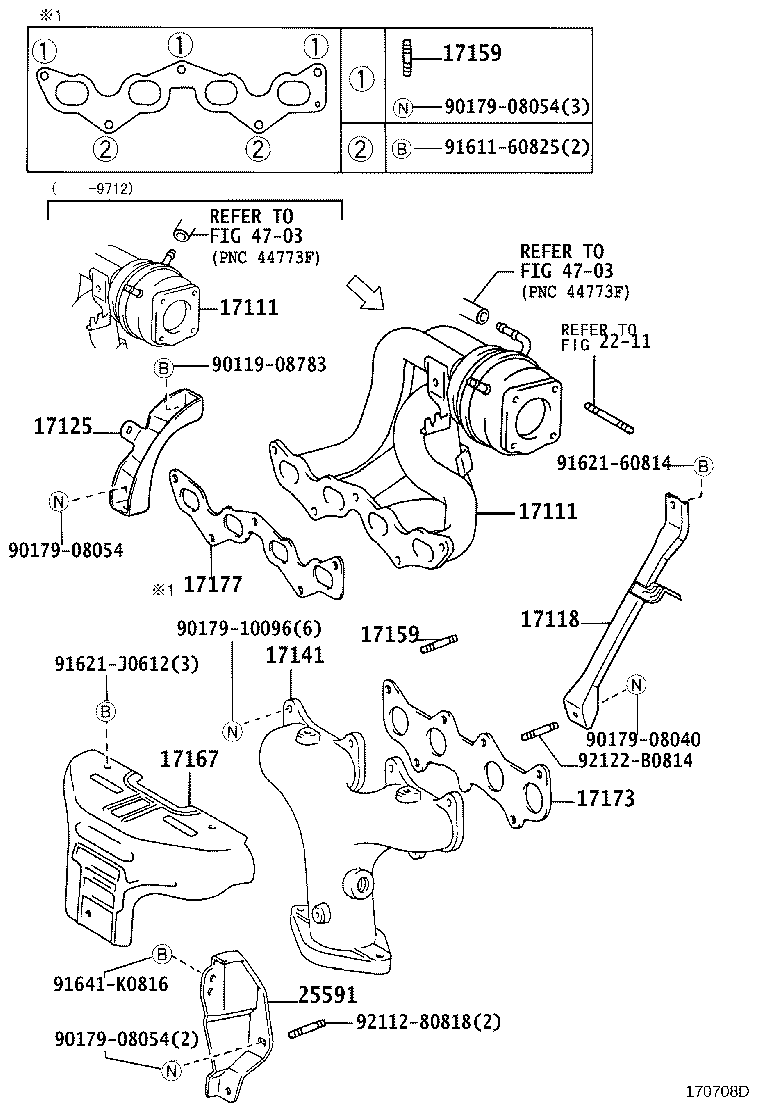

(9608- )4EFE ; (9712- )5EFE..EL53

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-11380	5EFE..EL53,55	12/1997 - 12/2999	1
17101-11321	5EFE..EL53,55	08/1996 - 12/1997	1
17101-11321	4EFE,5EFE..EL5#	04/1995 - 08/1996	1
17101-11320	4EFE,5EFE..EL5#	09/1994 - 04/1995	1
17111 - MANIFOLD, INTAKE
17101-11380	5EFE..EL53,55	12/1997 - 12/2999	1
17101-11321	5EFE..EL53,55	08/1996 - 12/1997	1
17101-11321	4EFE,5EFE..EL5#	04/1995 - 08/1996	1
17101-11320	4EFE,5EFE..EL5#	09/1994 - 04/1995	1
17118 - STAY, MANIFOLD
17118-11270	5EFE..EL53,55	08/1996 - 12/1997	1
17118-11290	5EFE..EL53	12/1997 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-11050	4EFE,5EFE..EL5#	09/1994 - 08/1996	1
17125-11060	4EFE,5EFE..EL5#	12/1997 - 12/2999	1
17125-11050	5EFE..EL53,55	08/1996 - 12/1997	1
17141 - MANIFOLD, EXHAUST
17141-11300	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	02/1995 - 12/2999	6
92122-61025	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	09/1994 - 02/1995	6
92132-60825	4EFE,5EFE..EL5# ｲﾝﾃｰｸﾏﾆﾎﾙﾄﾞ	09/1994 - 12/2999	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10196	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	02/1995 - 12/2999	6
92122-61025	4EFE,5EFE..EL5# ｴｷｿﾞｰｽﾄﾏﾆﾎﾙﾄﾞ	09/1994 - 02/1995	6
92132-60825	4EFE,5EFE..EL5# ｲﾝﾃｰｸﾏﾆﾎﾙﾄﾞ	09/1994 - 12/2999	3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-11310	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-11050	5EFE..EL53,55	09/1994 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-11070	4EFE,5EFE..EL5#	04/1995 - 12/2999	1
17177-11021	4EFE,5EFE..EL5#	09/1994 - 04/1995	1
25591 - BRACKET, MANIFOLD SUPPORT
25591-11080	4EFE,5EFE..EL51,53	09/1994 - 12/2999	1
Common parts
90119-08783
90179-08040
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
91641-K0816
92112-80818
92122-B0814
Linked diagrams
2211
4703

EL53-BEPDK (1994)

(9409-9608)4EFE,5EFE..EL51,53 ; (9608-9712)5EFE..EL53

(9608- )4EFE ; (9712- )5EFE..EL53
