EL53-BEMDK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )4DS

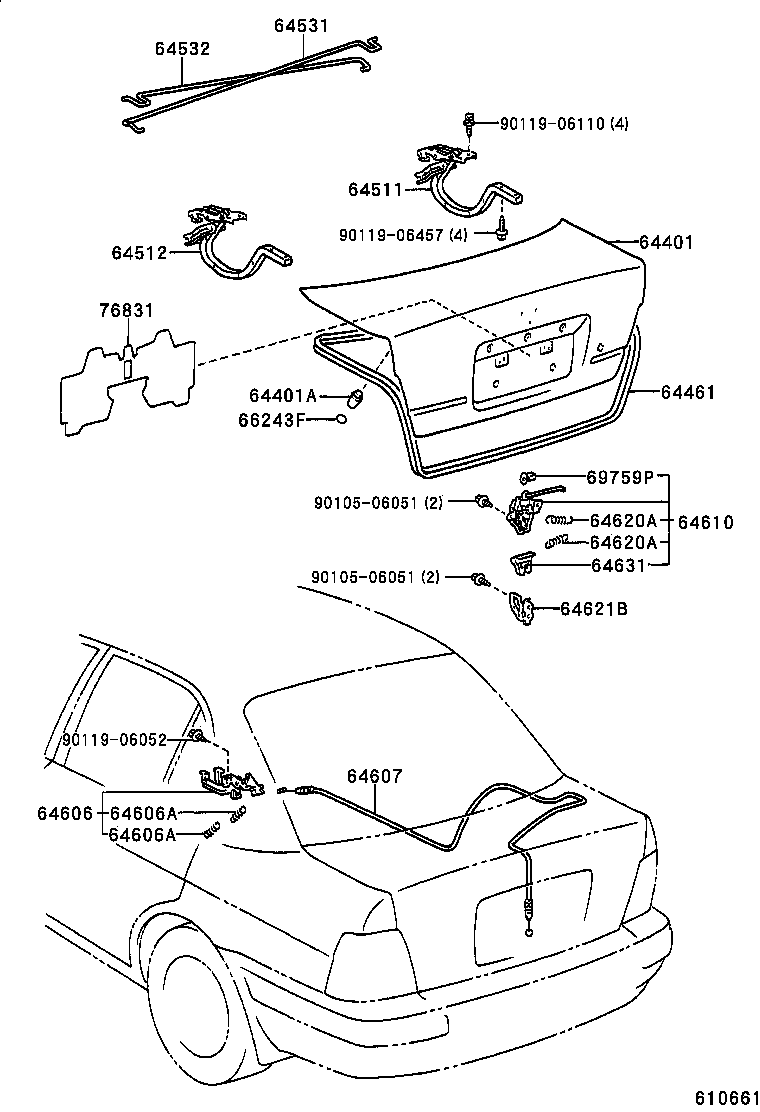

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-16200 |
EL5#,NL50..4DS |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09077 |
EL5#,NL50..4DS |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-16150 |
EL5#,NL50..4DS |
1 | ||
| 64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH | ||||
| 64510-16030 |
EL5#,NL50..4DS |
1 | ||
| 64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH | ||||
| 64510-16030 |
EL5#,NL50..4DS |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-16180 |
EL5#,NL50..4DS |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-16180 |
EL5#,NL50..4DS |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-16050 |
EL5#,NL50..4DS |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
EL5#,NL50..4DS |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
EL5#,NL50..4DS |
2 | ||
| 64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-16340 |
EL5#,NL50..4DS |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-16090 |
EL5#,NL50..4DS |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
EL5#,NL50..4DS |
1 | ||
| 90905-06021 |
EL5#,NL50..4DS |
1 | ||
| 64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK) | ||||
| 90506-05001 |
EL5#,NL50..4DS |
1 | ||
| 90905-06021 |
EL5#,NL50..4DS |
1 | ||
| 64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 64621-16020 |
EL5#,NL50..4DS |
1 | ||
| 64631 - PROTECTOR, LUGGAGE DOOR LOCK | ||||
| 64631-16020 |
EL5#,NL50..4DS |
1 | ||
| 66243F - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-20010 |
EL5#,NL50..4DS |
2 | ||
| 69759P - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24050 |
EL5#,NL50..4DS |
1 | ||
| 76831 - COVER, BACK DOOR FINISH PANEL | ||||
| 76831-16010 |
EL5#,NL50..4DS |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06052 | ||||
| 90119-06110 | ||||
| 90119-06457 | ||||
