EL51-BGHNK (1994)
Toyota Corsa/Tercel

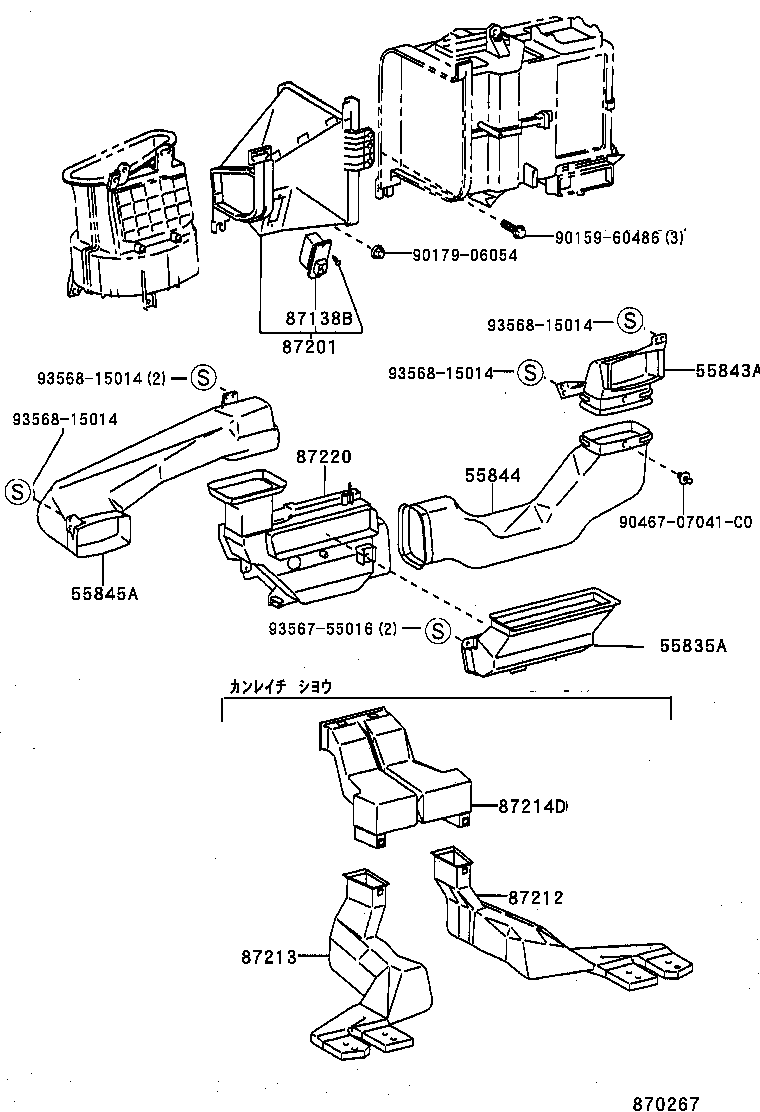

ILLUST NO. 2 OF 3(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-16080 |
EL5#,NL50 |
1 | ||
| 55835-16060 |
EL5#,NL50 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-16110 |
EL5#,NL50 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-16090 |
EL5#,NL50 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-16090 |
EL5#,NL50 |
1 | ||
| 55845-16110 |
EL5#,NL50 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-16060 |
EL5#,NL50 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-16060 |
EL5#,NL50 |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87215-16020 |
EL5#,NL50 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-16030 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87220-16030 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87220-16050 |
EL5#,NL50 |
1 | ||
| 87220-16051 |
EL5#,NL50 |
1 | ||
| Common parts | ||||
| 90159-60486 | ||||
| 90179-06054 | ||||
| 90467-07041C0 | ||||
| 93567-55016 | ||||
| 93568-15014 | ||||

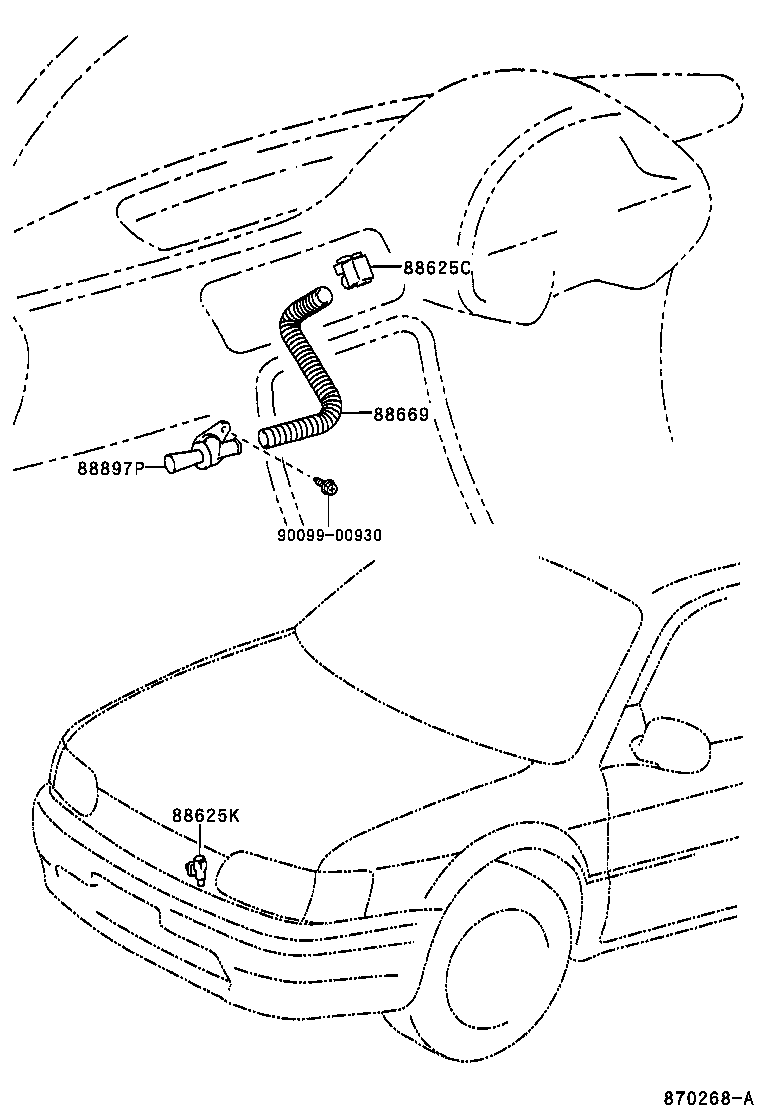

ILLUST NO. 3 OF 3(9409- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-20490 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88625-33010 |
EL5#,NL50 |
1 | ||
| 88625-33010 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-16200 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88625-16200 |
EL5#,NL50 |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-16060 |
EL5#,NL50 |
1 | ||
| 88669-16060 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-22100 |
EL5#,NL50 |
1 | ||
| 88897-22100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| Common parts | ||||
| 90099-00930 | ||||

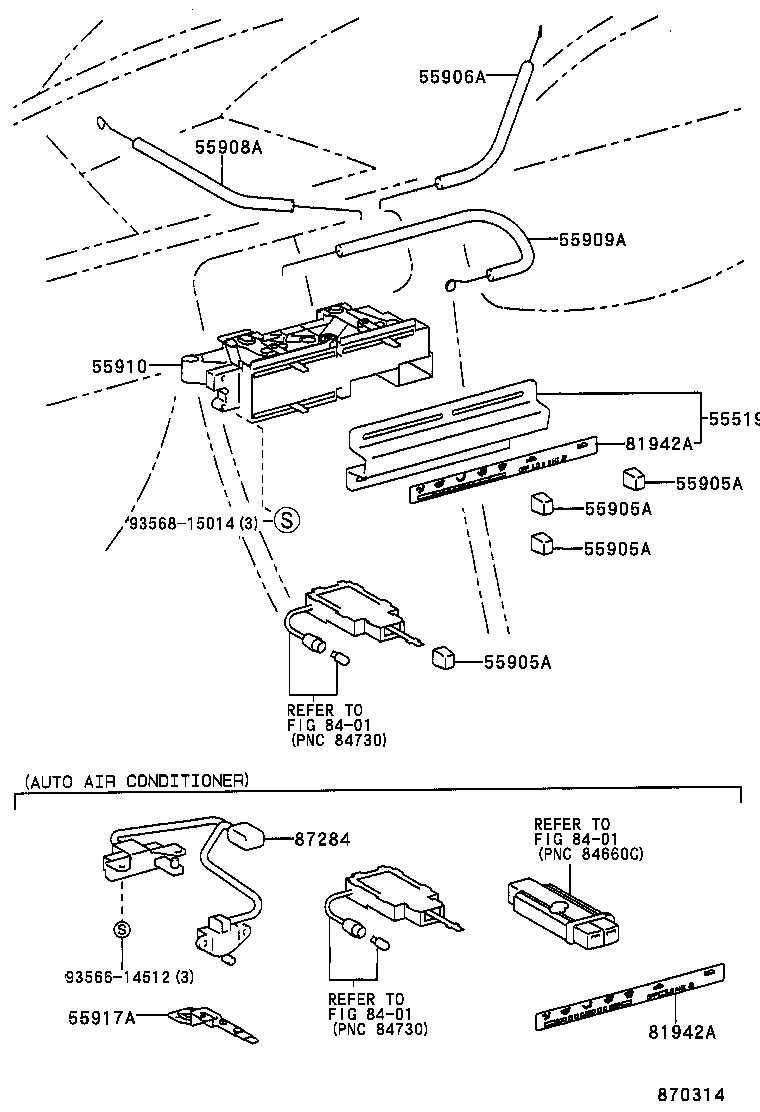

ILLUST NO. 1 OF 3(9409-9608)
LEVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16230 |
EL5# ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 55519-16110 |
EL5#,NL50 |
1 | ||
| 55519-16090 |
EL5#,NL50 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16090 |
EL5#,NL50 |
1 | ||
| 55906-16120 |
EL5#,NL50 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16100 |
EL5#,NL50 |
1 | ||
| 55908-16120 |
EL5#,NL50 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16130 |
EL5#,NL50 |
1 | ||
| 55909-16100 |
EL5#,NL50 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16310 |
EL5#,NL50 |
1 | ||
| 55910-16200 |
EL5#,NL50 |
1 | ||
| 55910-16270 |
EL5#,NL50 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16250 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 81942-16310 |
EL5#,NL50 |
1 | ||
| 81942-16260 |
EL5#,NL50 |
1 | ||
| 81942-16200 |
EL5#,NL50 |
1 | ||
| 81942-16261 |
EL5#,NL50 |
1 | ||
| 81942-16250 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16250 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 81942-16310 |
EL5#,NL50 |
1 | ||
| 81942-16260 |
EL5#,NL50 |
1 | ||
| 81942-16200 |
EL5#,NL50 |
1 | ||
| 81942-16261 |
EL5#,NL50 |
1 | ||
| 81942-16250 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88032-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93568-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

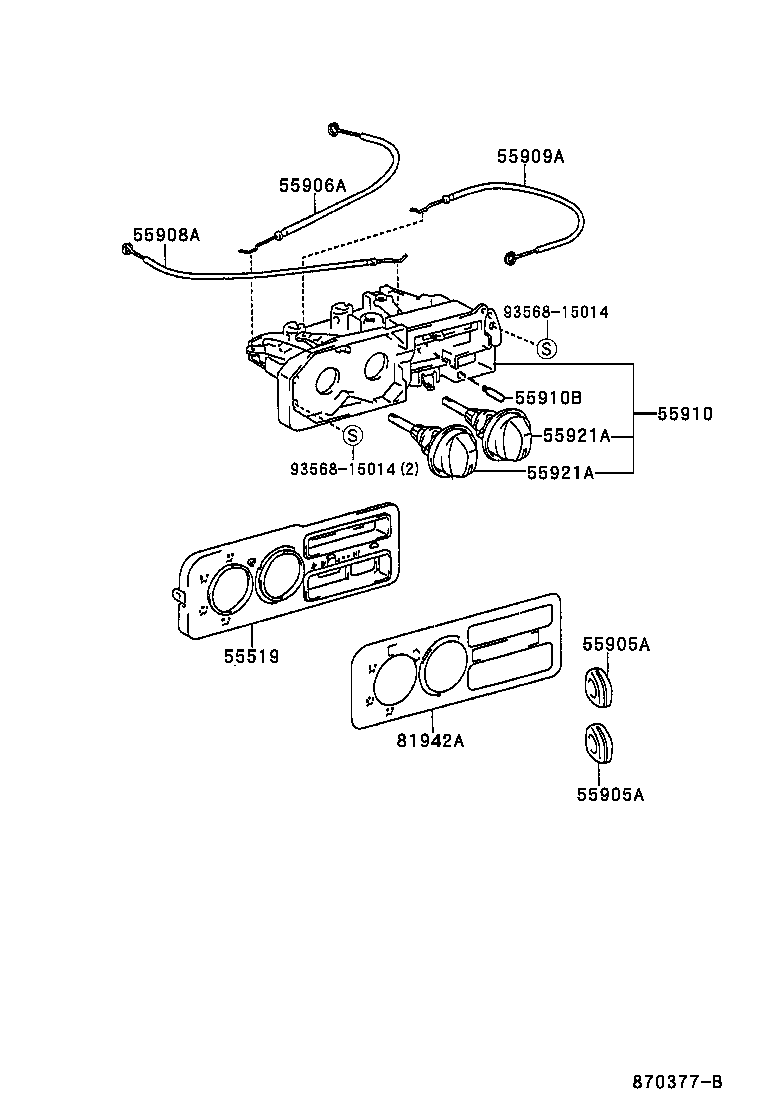

ILLUST NO. 1 OF 3(9608- )
ﾀﾞｲｱﾙ ﾀｲﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16230 |
EL5# ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 55519-16110 |
EL5#,NL50 |
1 | ||
| 55519-16090 |
EL5#,NL50 |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16090 |
EL5#,NL50 |
1 | ||
| 55906-16120 |
EL5#,NL50 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16100 |
EL5#,NL50 |
1 | ||
| 55908-16120 |
EL5#,NL50 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16130 |
EL5#,NL50 |
1 | ||
| 55909-16100 |
EL5#,NL50 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16310 |
EL5#,NL50 |
1 | ||
| 55910-16200 |
EL5#,NL50 |
1 | ||
| 55910-16270 |
EL5#,NL50 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90981-11014 |
EL5#,NL50 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-10040 |
EL5#,NL50 |
2 | ||
| 55921-16010 |
EL5#,NL50 |
2 | ||
| 55921A - RETAINER, HEATER CONTROL | ||||
| 55921-10040 |
EL5#,NL50 |
2 | ||
| 55921-16010 |
EL5#,NL50 |
2 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16250 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 81942-16310 |
EL5#,NL50 |
1 | ||
| 81942-16260 |
EL5#,NL50 |
1 | ||
| 81942-16200 |
EL5#,NL50 |
1 | ||
| 81942-16261 |
EL5#,NL50 |
1 | ||
| 81942-16250 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| Common parts | ||||
| 93568-15014 | ||||

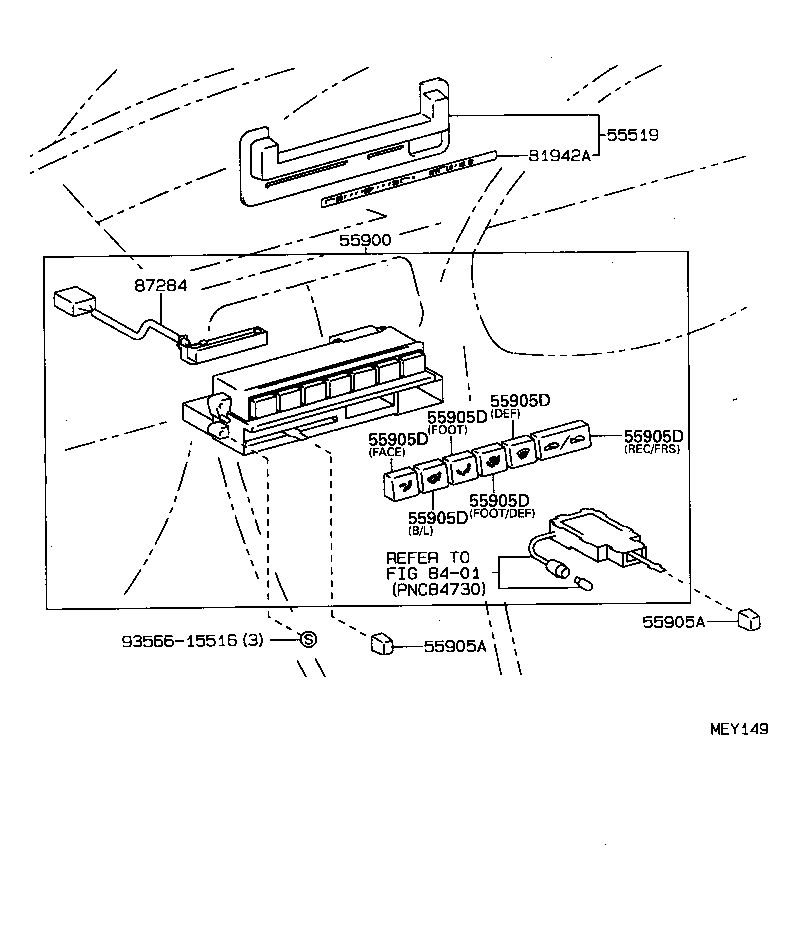

ILLUST NO. 1 OF 3(9409- )
PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55519-16230 |
EL5# ｱﾘ(ﾏﾆﾕｱﾙｴｱｺﾝ) |
1 | ||
| 55519-16110 |
EL5#,NL50 |
1 | ||
| 55519-16090 |
EL5#,NL50 |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-16270 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 55900-16270 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL5#,NL50 |
4 | ||
| 55905-89115 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905D - KNOB SUB-ASSY, CONTROL | ||||
| 55905-16090 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16090 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FACE |
1 | ||
| 55905-16110 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16140 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 55905-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX BI-LEVEL |
1 | ||
| 55905-16120 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16110 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT |
1 | ||
| 55905-16120 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX FOOT/DEF |
1 | ||
| 55905-16130 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16130 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX DEF |
1 | ||
| 55905-16140 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX 内気/外気 |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16250 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 81942-16310 |
EL5#,NL50 |
1 | ||
| 81942-16260 |
EL5#,NL50 |
1 | ||
| 81942-16200 |
EL5#,NL50 |
1 | ||
| 81942-16261 |
EL5#,NL50 |
1 | ||
| 81942-16250 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX ｱﾘ(ﾒ-ｶ ｵﾌﾟｼﾖﾝ ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-16100 |
EL5#,NL50..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| 88032-16100 |
EL5#..AVE,AXX,CYN,SOP,VITX,VX |
1 | ||
| Common parts | ||||
| 93566-15516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
