EL51-AGKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

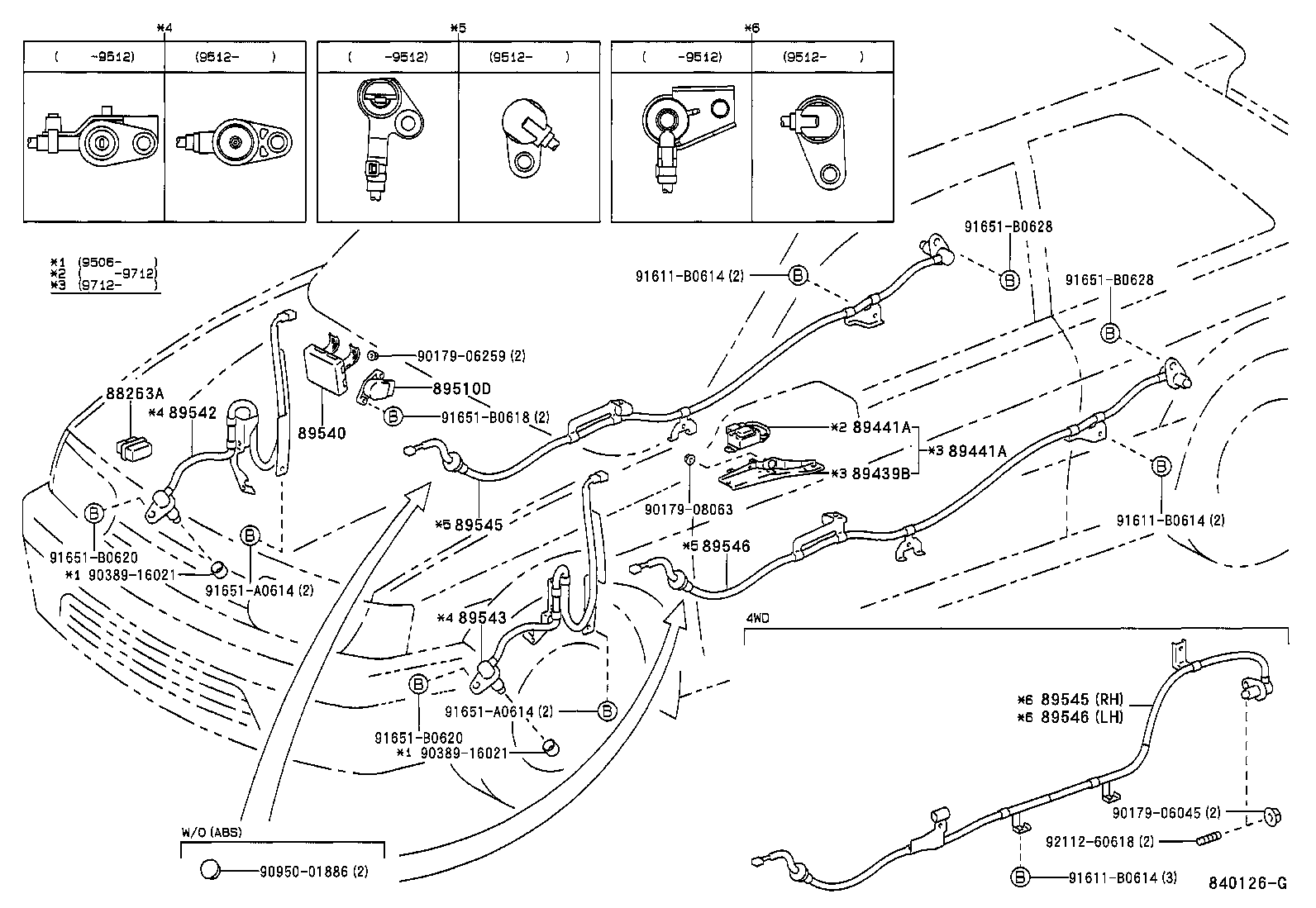

Click highlighted areas on diagram

diagram 88263A 89439B 89441A 89441A 89510D 89540 89542 89543 89545 89545 89546 89546 9017906045 9017906259 9017908063 9038916021 9038916021 9095001886 91611B0614 91611B0614 91611B0614 91651A0614 91651A0614 91651B0618 91651B0620 91651B0620 91651B0628 91651B0628 9211260618
Part # Description Qty Price
88263A - RELAY, SKID CONTROL
88263-16010

EL5#,NL50

 1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-46010

EL5#,NL50

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-16060

EL51,53,NL50

 1
89540-16110

EL51,53,NL50

 1
89540-16061

EL51,53,NL50

 1
89542 - SENSOR, SPEED, FRONT RH
89542-10020

EL5#,NL50

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
89542-16010

EL5#,NL50

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
89543 - SENSOR, SPEED, FRONT LH
89543-10020

EL5#,NL50

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
89543-16010

EL5#,NL50

ｲﾗｽﾄ ｻﾝｼﾖｳ

 1
89545 - SENSOR, SPEED, REAR RH
89545-16050

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89545-16050

 1
89545-16020

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89545-16020

 1
89545 - SENSOR, SPEED, REAR RH
89545-16050

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89545-16050

 1
89545-16020

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89545-16020

 1
89546 - SENSOR, SPEED, REAR LH
89546-16020

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89546-16020

 1
89546-16050

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89546-16050

 1
89546 - SENSOR, SPEED, REAR LH
89546-16020

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89546-16020

 1
89546-16050

EL51,NL50..AVE,AX,AXX,JOI,MOA,SOP

ｲﾗｽﾄ ｻﾝｼﾖｳ & ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=89546-16050

 1
Common parts
90179-06045
90179-06259
90179-08063
90389-16021
90950-01886
91611-B0614
91651-A0614
91651-B0618
91651-B0620
91651-B0628
92112-60618
