EL51-AGKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )3DS

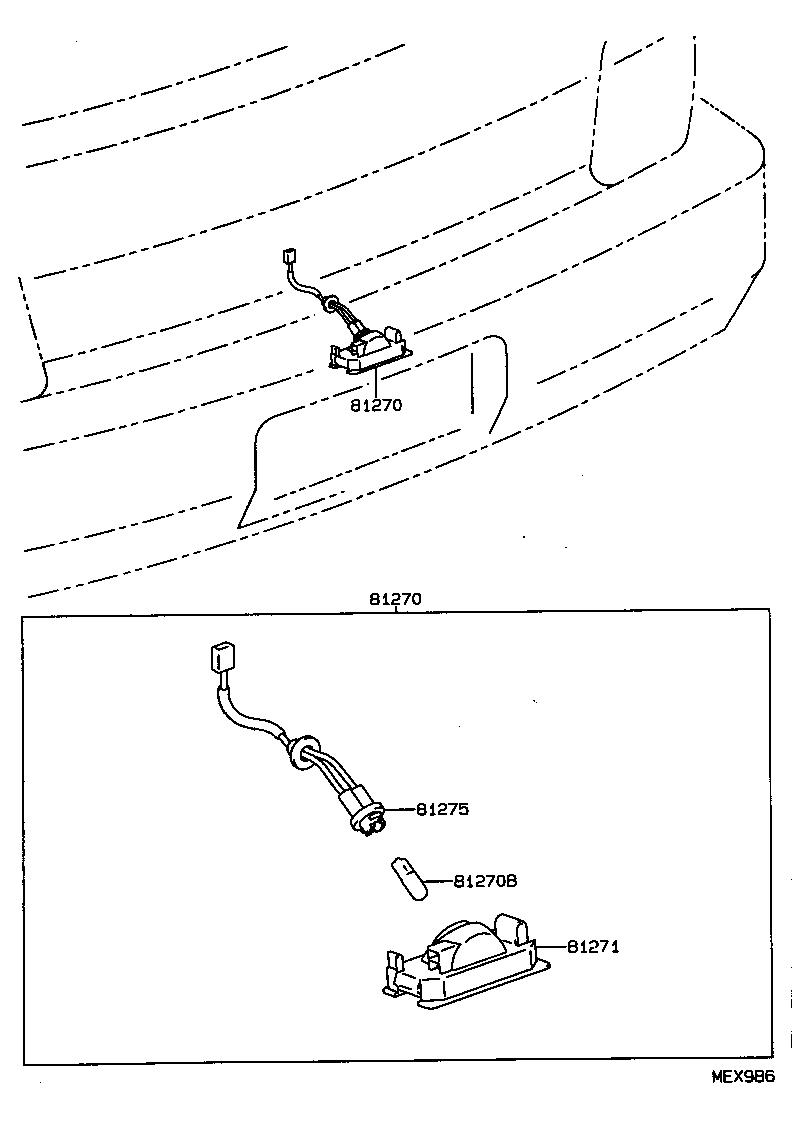

Click highlighted areas on diagram

diagram 81270 81270 81270B 81271 81275
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-16260

EL5#,NL50..3DS

 1
81270 - LAMP ASSY, LICENSE PLATE
81270-16260

EL5#,NL50..3DS

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

EL5#,NL50..3DS

12V 5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-16260

EL5#,NL50..3DS

 1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-16260

EL5#,NL50..3DS

 1
