EL51-AGKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )3DS

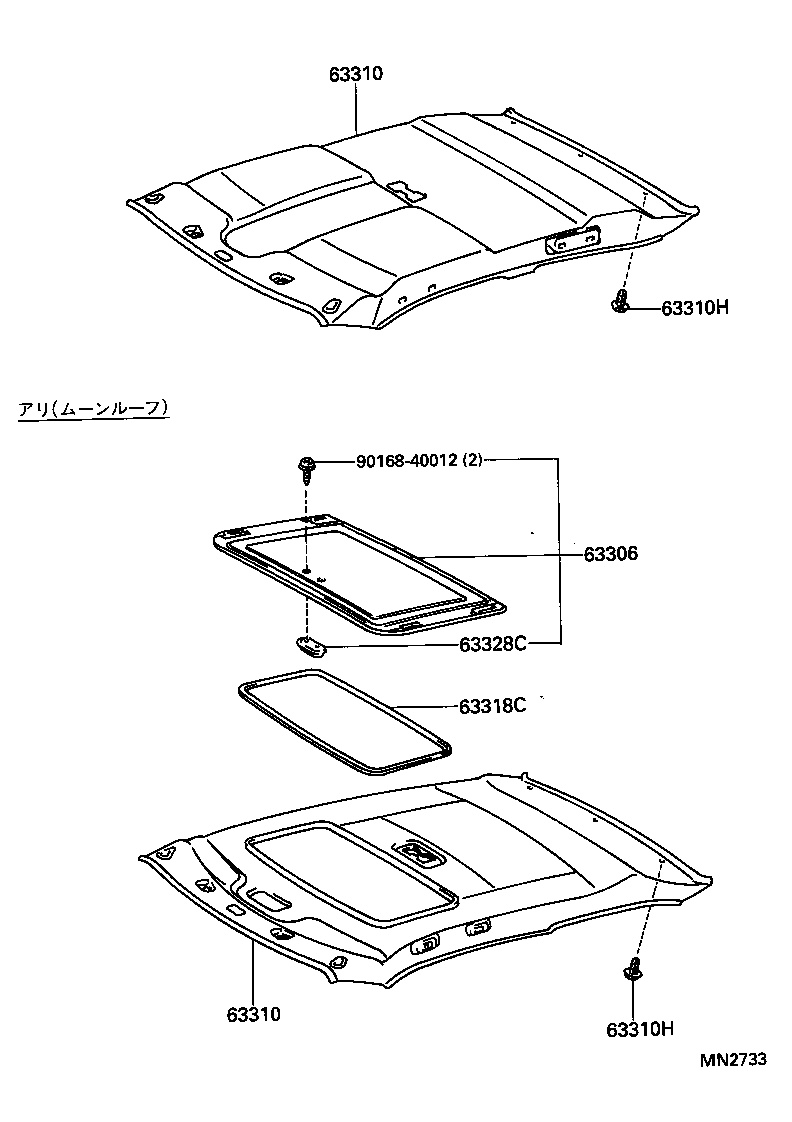

Click highlighted areas on diagram

diagram 63306 63310 63310 63310H 63310H 63318C 63328C 9016840012
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-16350B0

EL5#,NL50..3DS

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16351E0

EL5#,NL50..3DS

LT. BEIGE,TRIM4#

 1
63310-16351B0

EL5#,NL50..3DS

LIGHT BLUISH GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-16350B0

EL5#,NL50..3DS

LIGHT BLUISH GRAY,TRIM1#

 1
63310-16351E0

EL5#,NL50..3DS

LT. BEIGE,TRIM4#

 1
63310-16351B0

EL5#,NL50..3DS

LIGHT BLUISH GRAY,TRIM1#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B0

EL5#,NL50..3DS

BLUISH GRAY,TRIM1#

 3
90467-05021B1

EL5#,NL50..3DS

LT.BLUISH GRAY,TRIM18

 3
90467-05021B1

EL5#,NL50

LT.BLUISH GRAY,TRIM1#

 3
90467-05021E1

EL5#,NL50

MD.OAK,TRIM4#

 3
63310H - CLIP(FOR ROOF HEADLINING)
90467-05021B0

EL5#,NL50..3DS

BLUISH GRAY,TRIM1#

 3
90467-05021B1

EL5#,NL50..3DS

LT.BLUISH GRAY,TRIM18

 3
90467-05021B1

EL5#,NL50

LT.BLUISH GRAY,TRIM1#

 3
90467-05021E1

EL5#,NL50

MD.OAK,TRIM4#

 3
Common parts
90168-40012
