EL51-AGHNK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

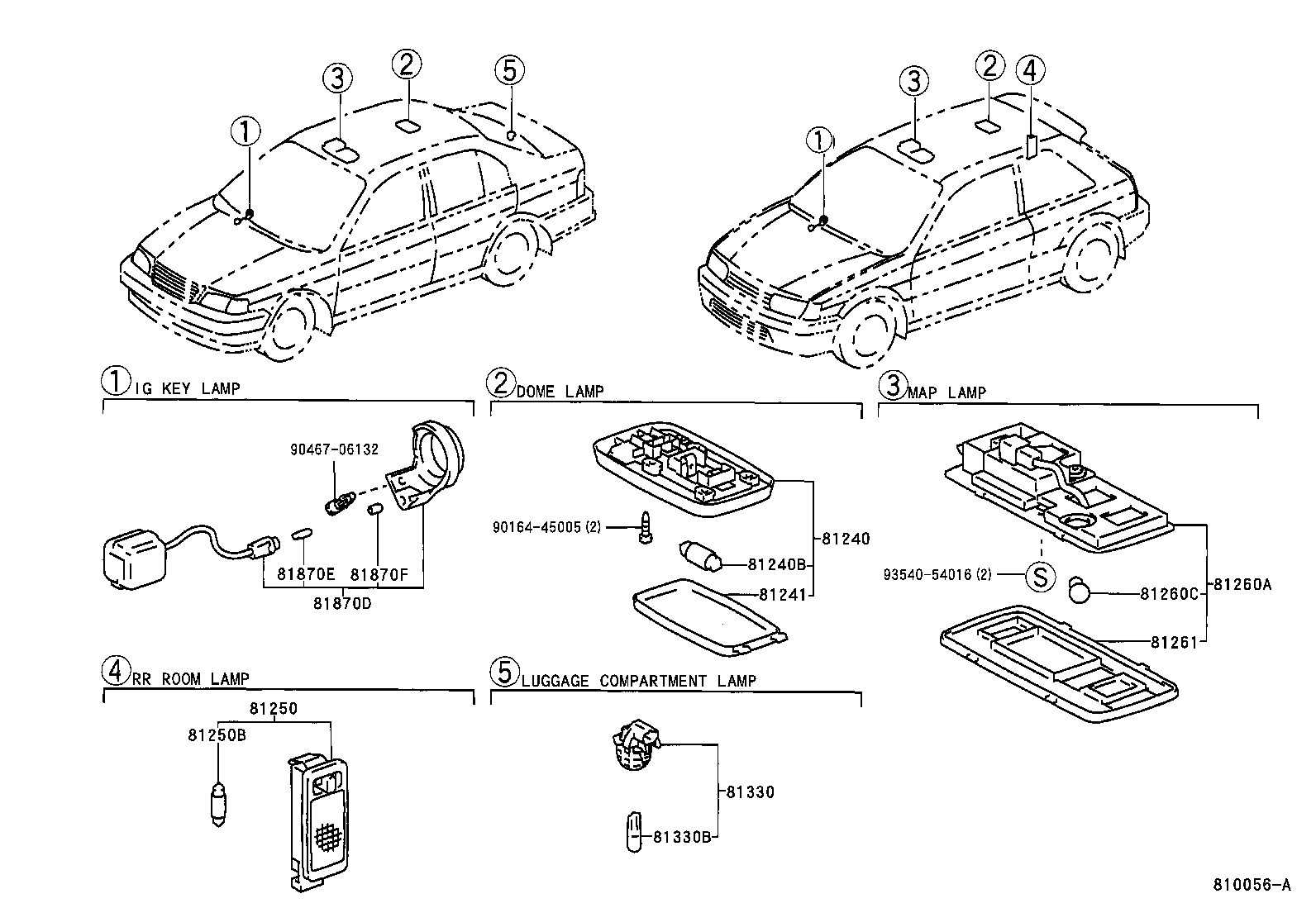

Click highlighted areas on diagram

diagram 81240 81240B 81241 81250 81250B 81260A 81260C 81261 81330 81330B 81870D 81870E 81870F 9016445005 9046706132 9354054016
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060B1

EL5#,NL50

LT.BLUISH GRAY,TRIM1#

 1
81240-12060E0

EL5#,NL50

MD.OAK,TRIM4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

EL5#,NL50

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-12020

EL5#,NL50

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-16040

EL5#..3DS..(AVE,CYN,SOP,VX)

 1
81250B - BULB, ROOM LAMP, NO.2
90981-11016

EL5#..3DS..(AVE,CYN,SOP,VX)

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-20160B0

EL5#..3DS..(AVE,CYN,SOP,VX)

LT.BLUISH GRAY,TRIM1#

 1
81260-20160E3

EL5#..3DS..(AVE,CYN,SOP,VX)

MD.OAK,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-12014

EL5#..3DS..(AVE,CYN,SOP,VX)

12V 10W

 1
81261 - LENS AND COVER, MAP LAMP
81261-20160B1

EL5#..3DS..(AVE,CYN,SOP,VX)

LT.BLUISH GRAY,TRIM1#

 1
81261-20160E2

EL5#..3DS..(AVE,CYN,SOP,VX)

MD.OAK,TRIM4#

 1
Common parts
90164-45005
90467-06132
93540-54016
