EL51-AGHNK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )3DS

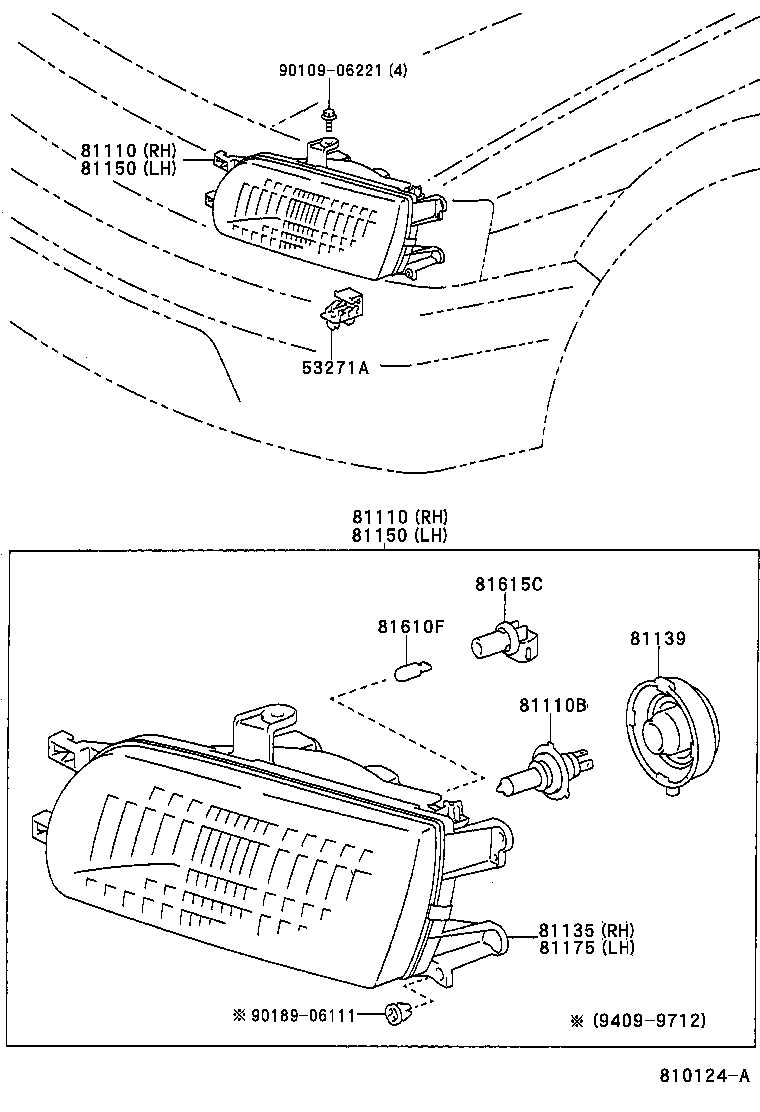

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-12060 |
EL5#,NL50 |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16580 |
EL5#,NL50..3DS |
1 | ||
| 81110-16730 |
EL5#,NL50..3DS |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-16580 |
EL5#,NL50..3DS |
1 | ||
| 81110-16730 |
EL5#,NL50..3DS |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-22004 |
EL5#,NL50..3DS 12V 60/55W,*HAL *WH |
2 | ||
| 90981-13015 |
EL5#,NL50 12V 60/55W,*HAL *WH |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-16730 |
EL5#,NL50..3DS |
1 | ||
| 81130-16580 |
EL5#,NL50..3DS |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 90075-65002 |
EL5#,NL50..3DS |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16730 |
EL5#,NL50..3DS |
1 | ||
| 81150-16580 |
EL5#,NL50..3DS |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-16730 |
EL5#,NL50..3DS |
1 | ||
| 81150-16580 |
EL5#,NL50..3DS |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-16580 |
EL5#,NL50..3DS |
1 | ||
| 81170-16730 |
EL5#,NL50..3DS |
1 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
EL5#,NL50 12V 5W |
2 | ||
| 81615C - SOCKET & WIRE, CLEARANCE LAMP | ||||
| 90075-99044 |
EL5#,NL50 |
2 | ||
| 90075-60004 |
EL5#,NL50..3DS |
2 | ||
| Common parts | ||||
| 90109-06221 | ||||
| 90189-06111 | ||||
