EL51-AGHDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )3FC

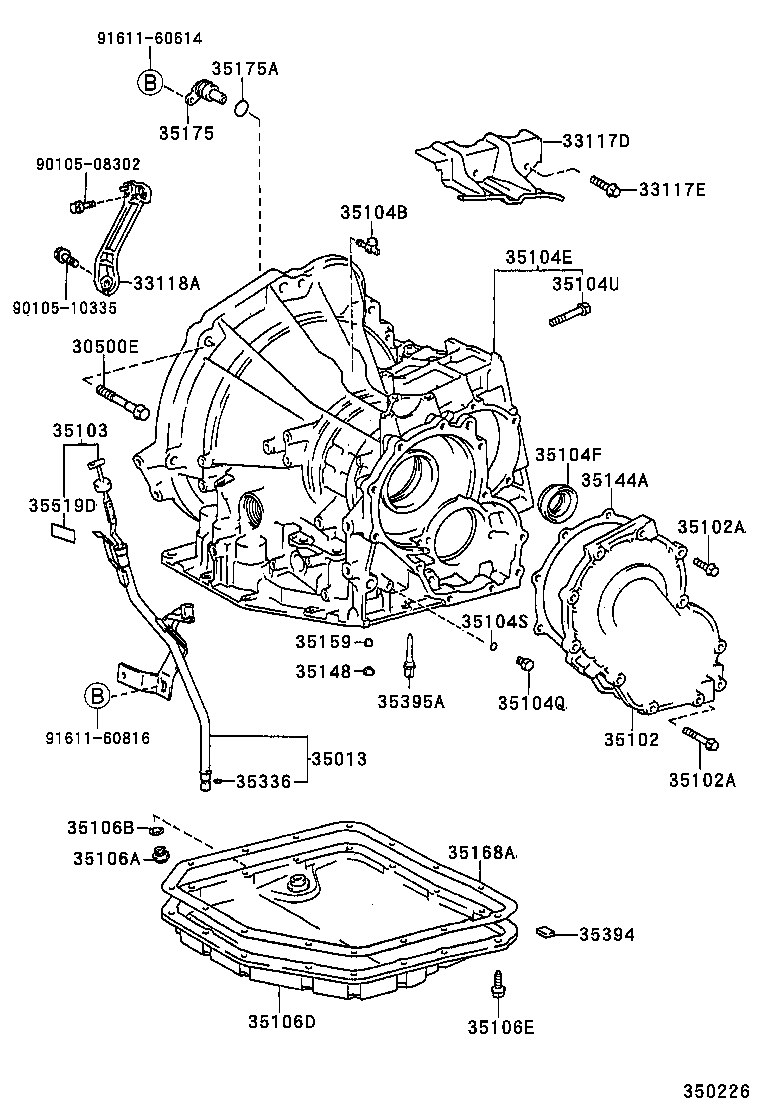

Click highlighted areas on diagram

A132L

diagram 30500E 33117D 33117E 33118A 35013 35102 35102A 35102A 35103 35104B 35104E 35104F 35104Q 35104S 35104U 35106A 35106B 35106D 35106E 35144A 35148 35159 35168A 35175 35175A 35336 35394 35395A 35519D 9010508302 9010510335 9161160614 9161160816
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90119-12168

EL5#,NL50..ATM

*12−1.25PX55−30

 1
91612-41025

EL51,55..ATM

*10−1.25PX25−25

 2
91621-60614

EL51,55..ATM

*6−1.00PX14−14

 1
91619-61245

EL5#,NL50..ATM

*12−1.25PX45−30

 2
90105-10097

EL5#..ATM

*10−1.25PX60−22

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-10011

EL51..3FC

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

EL5#,NL50..ATM

 2
33118A - PLATE, STIFFENER, RH(ATM)
33118-16020

EL51,53..ATM

 1
33118-16030

EL51,53..ATM

 1
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-16270

EL51..3FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-10011

EL51..3FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

EL51..3FC

*8−1.25PX28−28

 9
90105-08056

EL51..3FC

*8−1.25PX40−40

 2
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08050

EL51..3FC

*8−1.25PX28−28

 9
90105-08056

EL51..3FC

*8−1.25PX40−40

 2
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-16230

EL51..3FC

 1
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03089

EL51..3FC

 1
35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104-10043

EL51..3FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34012

EL51..3FC

 1
90311-34023

EL51..3FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

EL51..3FC

 2
35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196

EL51..3FC

 2
35104U - BOLT (FOR TRANSAXLE CASE)
90105-10008

EL51..3FC

*10−1.25PX53−26

 2
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18016

EL51..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
90430-18008

EL51..3FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-10022

EL51..3FC

 1
35106E - BOLT (FOR TRANSAXLE OIL PAN)
90119-06173

EL51..3FC

 15
35144A - GASKET, TRANSAXLE REAR COVER
35144-12030

EL51..3FC

 1
35144-12020

EL51..3FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

EL5#,NL50..ATM

 1
35159 - GASKET, BRAKE DRUM
35159-32011

EL51..3FC

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-32010

EL51..3FC

 1
35175 - CAP, TRANSAXLE CASE, NO.2
35175-32010

EL51..3FC

 1
35175A - RING, O (FOR TRANSAXLE CASE CAP)
90301-21002

EL51..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

EL5#,NL50..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

EL51,53,NL50..ATM

 2
35395A - STRAINER, GOVERNOR OIL
35395-32030

EL51..3FC

 1
35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION
35519-32040

EL51..3FC

 1
Common parts
90105-08302
90105-10335
91611-60614
91611-60816
