EL51-AEKNK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )4DS

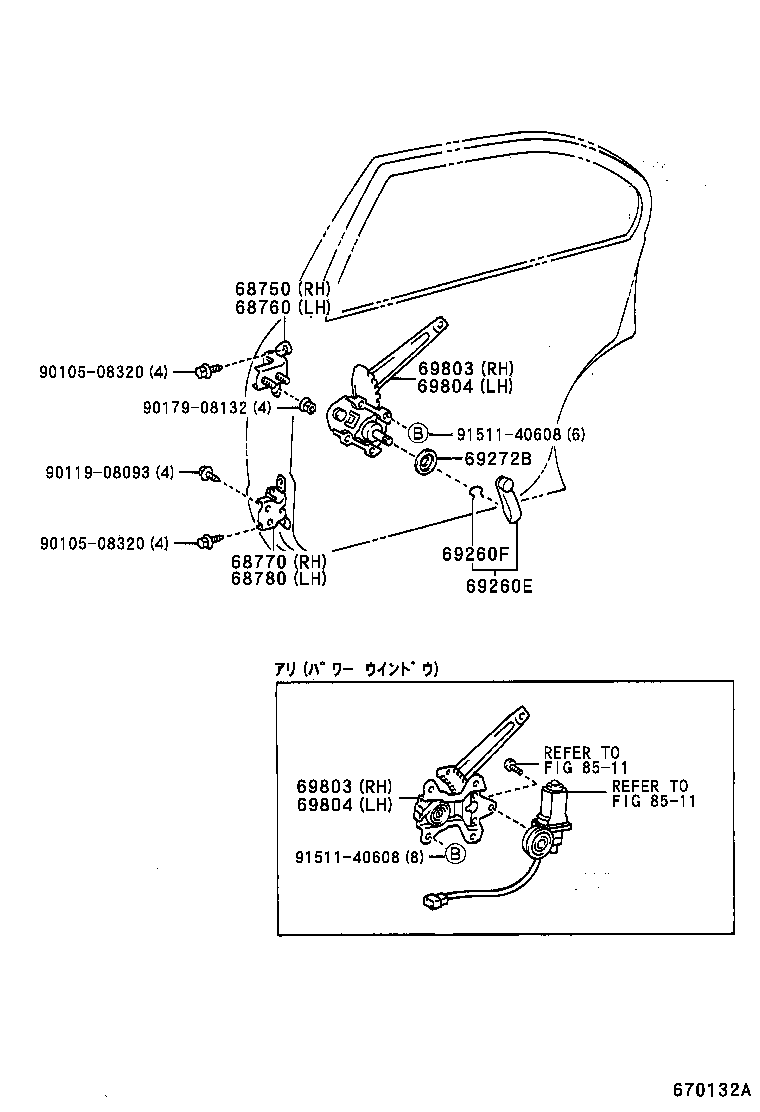

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-20100 |
EL5#,NL50..4DS |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-20100 |
EL5#,NL50..4DS |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-16040 |
EL5#,NL50..4DS |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-16040 |
EL5#,NL50..4DS |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-16030 |
EL5#,NL50..4DS..(AVE,AXX,VITX,VX) |
1 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-16030 |
EL5#,NL50..4DS..(AVE,AXX,VITX,VX) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-16030 |
EL5#,NL50..4DS..(AVE,AXX,VITX,VX) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69804-16030 |
EL5#,NL50..4DS..(AVE,AXX,VITX,VX) |
1 | ||
| Common parts | ||||
| 90105-08320 | ||||
| 90119-08093 | ||||
| 90179-08132 | ||||
| 91511-40608 | ||||
| Linked diagrams | ||||
| 8511 | ||||
