Toyota Corsa/tercel EL51 WIRING & CLAMP

EL51-AEKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 9(9409- )

Click highlighted areas on diagram

INSTRUMENT WIRE

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-16140	EL5#..4DS..(3FC,4F,5F)..(AX,JOI)	09/1994 - 08/1996	1
82141-16160	EL5#..AVE,AX,AXX,JOI,MOA,SOP ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/1994 - 10/1995	1
82141-16620	EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽｴｸｽﾄﾗ	04/1995 - 08/1996	1
82141-16150	EL51,53..4DS..(AX,JOI) ｱﾘ(ABS)	09/1994 - 08/1996	1
82141-16161	EL5#..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	10/1995 - 08/1996	1
82141-16141	EL51..4DS..(AX,JOI)	08/1996 - 12/1997	1
82141-16142	EL51..4DS..(AX,JOI)	12/1997 - 07/1999	1
82141-16370	EL51..AX,JOI,MOA ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ);ﾅｼ(80);ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ;ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ﾅｼ(80);ｱﾘ(ﾃﾞｼﾞﾀﾙｸﾛﾂｸ);ｱﾘ(*80 & ｵ-ﾄｴｱｺﾝ)	08/1996 - 12/1997	1
82141-16162	EL51..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/1996 - 12/1997	1
82141-16371	EL51..AX,JOI,MOA ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ	12/1997 - 07/1999	1
82141-16163	EL51..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	12/1997 - 07/1999	1
82210C - FUSIBLE LINK
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ	08/1996 - 12/2999	1
90982-08227	EL5#,NL50 50A,ﾒｽ端子,赤	09/1994 - 12/2999	1
90982-08246	EL5#,NL50 100A,ｵｽ端子,青	09/1994 - 12/2999	1
90982-08283	EL5# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑ	08/1996 - 12/2999	3
90982-08190	EL5#,NL50 60A,ﾒｽ端子,黄	09/1994 - 12/2999	1
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1996 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL5#,NL50	09/1994 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-16020	EL5#,NL50	09/1994 - 12/2999	2
Common parts
85999-16120
90159-50134
90159-70003
90167-50028
91651-60612
93568-15014
Linked diagrams
8401

ILLUST NO. 2 OF 9(9409- )EL5#

Click highlighted areas on diagram

ENGINE WIRE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-1G190	EL51..4F	09/1994 - 08/1996	1
82121-1G192	EL51..4F	05/1997 - 12/1997	1
82121-1G191	EL51..4F	08/1996 - 05/1997	1
82121-1G193	EL51..4F	12/1997 - 12/2999	1
82123 - WIRE, ENGINE, NO.3
82123-16120	EL5#..4F,4FC,5F	09/1994 - 12/2999	1
82210C - FUSIBLE LINK
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ	08/1996 - 12/2999	1
90982-08227	EL5#,NL50 50A,ﾒｽ端子,赤	09/1994 - 12/2999	1
90982-08246	EL5#,NL50 100A,ｵｽ端子,青	09/1994 - 12/2999	1
90982-08283	EL5# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑ	08/1996 - 12/2999	3
90982-08190	EL5#,NL50 60A,ﾒｽ端子,黄	09/1994 - 12/2999	1
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1996 - 12/2999	1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-16080	EL5#,NL50	09/1994 - 12/2999	1
82621 - COVER, FUSIBLE LINK
82621-16010	EL5#,NL50	09/1994 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-16010	EL5#	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
90119-06595
91621-60612
91651-60614

ILLUST NO. 8 OF 9(9409- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty	Price

ILLUST NO. 7 OF 9(9409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82702-16010
82715-10190
90461-06221
90467-06131
90467-06131B2
90467-07116
90467-07130

ILLUST NO. 4 OF 9(9409- )4DS

Click highlighted areas on diagram

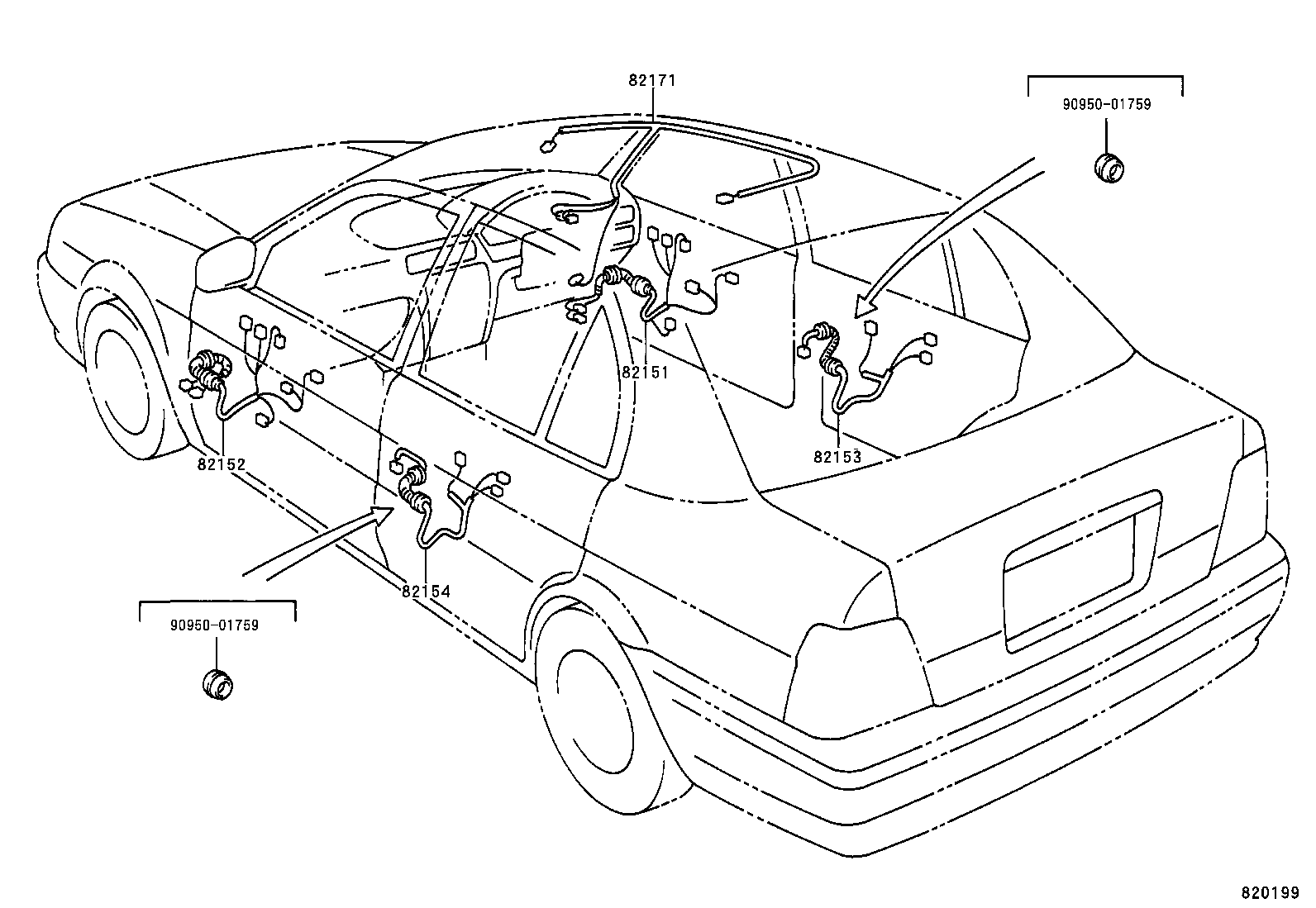

DOOR, ROOF WIRE

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-16440	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ABS & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/1994 - 10/1995	1
82151-16590	EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽｴｸｽﾄﾗ	04/1995 - 08/1996	1
82151-16620	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	10/1995 - 12/1997	1
82151-16490	EL51,55,NL50..AX,JOI,MOA ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR ﾅｼ(*80)	08/1996 - 12/1997	1
82151-16621	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	12/1997 - 12/2999	1
82151-16420	EL51,53..AX,JOI,MOA	08/1996 - 12/2999	1
82151-16420	EL5#,NL50..AX,JOI,MOA	09/1994 - 08/1996	1
82151-16491	EL51,55,NL50..AX,JOI,MOA ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ OR ﾅｼ(*80)	12/1997 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-16460	EL51,55..AX,JOI,MOA AX ｽﾍﾟｼﾔﾙ, ﾓｱｽﾍﾟｼﾔﾙ, ｼﾞﾖｲﾅｽｴｸｽﾄﾗ	04/1995 - 08/1996	1
82152-16551	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	12/1997 - 12/2999	1
82152-16330	EL5#,NL50..AX,JOI,MOA	09/1994 - 12/2999	1
82152-16380	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	09/1994 - 10/1995	1
82152-16550	EL5#,NL50..4DS..(AVE,AX,AXX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	10/1995 - 12/1997	1
82153 - WIRE, REAR DOOR, NO.1
82153-16080	EL5#,NL50..4DS	09/1994 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82154-16080	EL5#,NL50..4DS	09/1994 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-16280	EL5#,NL50..4DS	09/1994 - 12/1997	1
82171-16281	EL5#,NL50..4DS	12/1997 - 12/2999	1
82171-16291	EL51,55..4DS;EL53..4DS..(VITX,VX) ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	11/1998 - 12/2999	1
Common parts
90950-01759

ILLUST NO. 7 OF 9(9409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-16750
82715-10130
82715-16060
82715-16211
82715-16271
82715-16350
82715-16360
82715-16380
82715-16390
82715-16440
82715-16450
82715-18080
82716-16010
90119-06539
91611-60812
91621-60612
91635-60820
91651-40814
91651-40816
91651-60614

ILLUST NO. 5 OF 9(9409- )4DS

Click highlighted areas on diagram

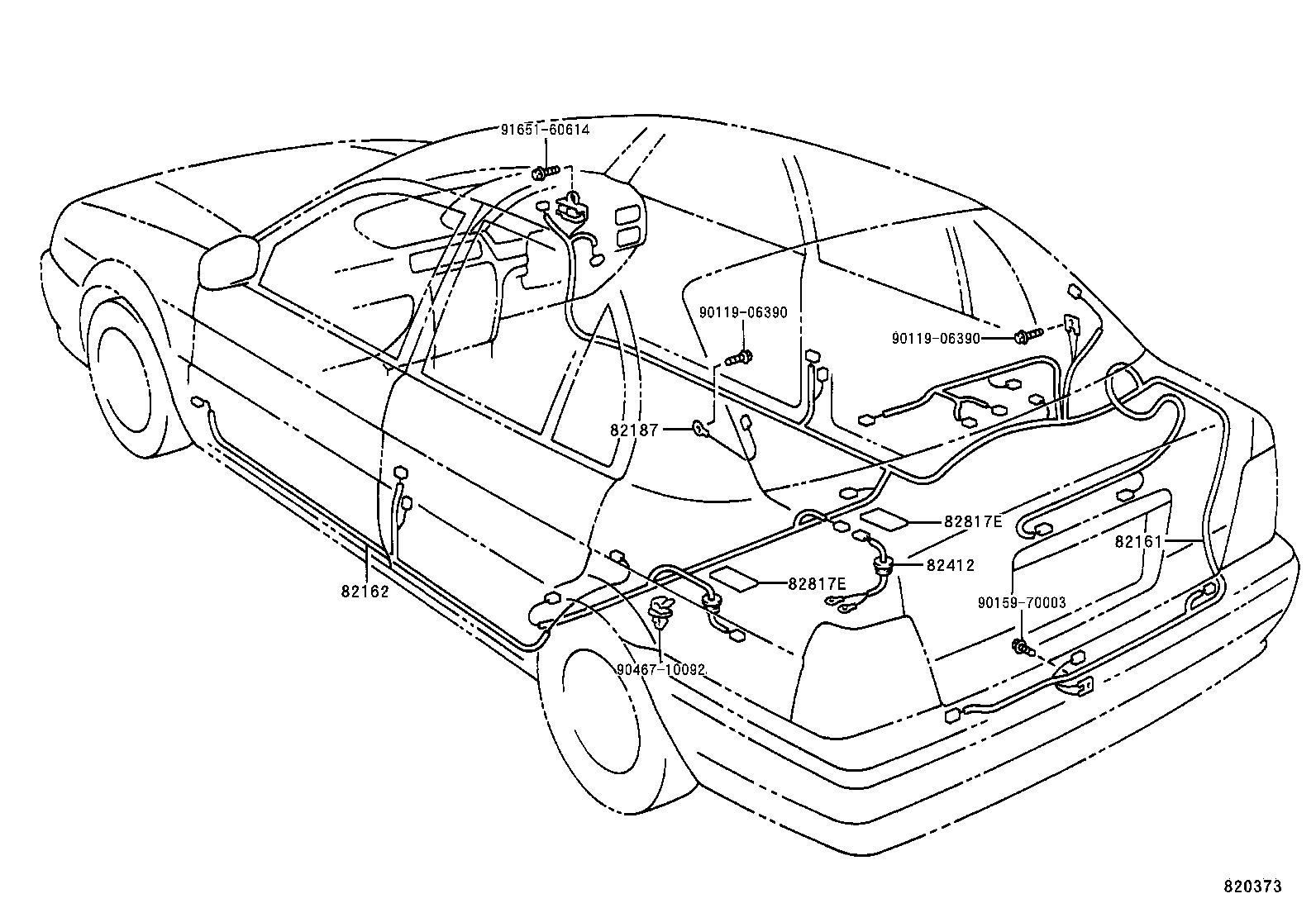

FLOOR, LUGGAGE WIRE

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-1G320	EL51,53,NL50..4DS..(AX,JOI)	09/1994 - 08/1996	1
82161-1G350	EL51,53,NL50..4DS ｱﾘ(ABS & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ);ｱﾘ(ABS & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	09/1994 - 08/1996	1
82161-1G340	EL51,53,NL50..4DS ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	09/1994 - 08/1996	1
82161-1G410	EL51,53,NL50..4DS..(AX,JOI) ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	09/1994 - 08/1996	1
82161-1G331	EL51,53,NL50..4DS..(AX,JOI)	08/1996 - 12/1997	1
82161-1G332	EL51,53,NL50..4DS..(AX,JOI)	12/1997 - 12/2999	1
82161-1G342	EL51,53,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) OR ｴｸｽﾄﾗﾊﾟﾂｹ-ｼﾞ	12/1997 - 12/2999	1
82161-1G341	EL51,53,NL50..4DS..(AX,JOI) ｱﾘ(ﾊﾟﾜ-ｳｲﾝﾄﾞｳ)	08/1996 - 12/1997	1
82161-1G330	EL51,53,NL50..4DS..(AX,JOI) ｱﾘ(ABS) OR ｱﾘ(ABS & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	09/1994 - 08/1996	1
82162 - WIRE, FLOOR, NO.2
82162-16311	EL5#,NL50..4DS	12/1997 - 12/2999	1
82162-16310	EL5#,NL50..4DS	09/1994 - 12/1997	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16090	EL5#,NL50	09/1994 - 12/2999	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
61824-50020	EL51,53,NL50	08/1995 - 12/1997	1
82817-16410	EL51,53,NL50	09/1994 - 08/1995	1
82817E - PROTECTOR, WIRING HARNESS, NO.6
61824-50020	EL51,53,NL50	08/1995 - 12/1997	1
82817-16410	EL51,53,NL50	09/1994 - 08/1995	1
Common parts
90119-06390
90159-70003
90467-10092
91651-60614

ILLUST NO. 1 OF 9(9409- )EL5#

Click highlighted areas on diagram

ENGINE ROOM WIRE

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-1G570	EL5# ｱﾘ(ABS)	09/1994 - 08/1996	1
82111-1G880	EL5#	12/1997 - 12/2999	1
82111-1S020	EL5# ｱﾘ(ABS)	08/1996 - 12/1997	1
82111-1G562	EL51..AX,JOI,MOA ﾋﾞｼﾞﾈｽﾊﾟﾂｹ-ｼﾞ	12/1997 - 12/2999	1
82111-1G561	EL51..AX,JOI,MOA	08/1996 - 12/1997	1
82111-1G560	EL5#	09/1994 - 08/1996	1
82210C - FUSIBLE LINK
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ	08/1996 - 12/2999	1
90982-08227	EL5#,NL50 50A,ﾒｽ端子,赤	09/1994 - 12/2999	1
90982-08246	EL5#,NL50 100A,ｵｽ端子,青	09/1994 - 12/2999	1
90982-08283	EL5# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑ	08/1996 - 12/2999	3
90982-08190	EL5#,NL50 60A,ﾒｽ端子,黄	09/1994 - 12/2999	1
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1996 - 12/2999	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-16480	EL5#,NL50	09/1994 - 02/1998	1
82824 - CONNECTOR, WIRING HARNESS
82824-20050	EL5#,NL50..AX,JOI,MOA	09/1994 - 12/2999	1
Common parts
82819-16190
90119-06390
90179-06009
90467-09169C0
91635-60616
Linked diagrams
8401

ILLUST NO. 7 OF 9(9409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82702-16010
82711-16430
82711-30550
82715-16190
82715-16200
82715-16330
82715-16360
82715-16580
82715-18020
82716-16010
90467-06131B2
90467-07166
90467-10129
91635-60616
91651-60612

ILLUST NO. 9 OF 9(9409- )

Click highlighted areas on diagram

CONNECTOR

Part #	Description	Period	Qty	Price
Common parts
90980-10619
90980-11009
90980-11019
90980-11156
90980-11314

ILLUST NO. 6 OF 9(9409- )EL5# ; (9712- )NL50..3DS

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	EL5# 右側	09/1994 - 12/2999	1
90980-07375	EL5# 左側	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# 右側	09/1994 - 12/2999	1
90980-07375	EL5# 左側	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# 右側	09/1994 - 12/2999	1
90980-07375	EL5# 左側	09/1994 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07341	EL5# 右側	09/1994 - 12/2999	1
90980-07375	EL5# 左側	09/1994 - 12/2999	1
Common parts
90105-10122
90119-06390
91651-60816

ILLUST NO. 7 OF 9(9409- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-12770
82711-16790
82711-3H630
