EL51-AEKDK (1994)
Toyota Corsa/Tercel
Production
Sep 1994
-
Jul 1999
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9712- )4DS

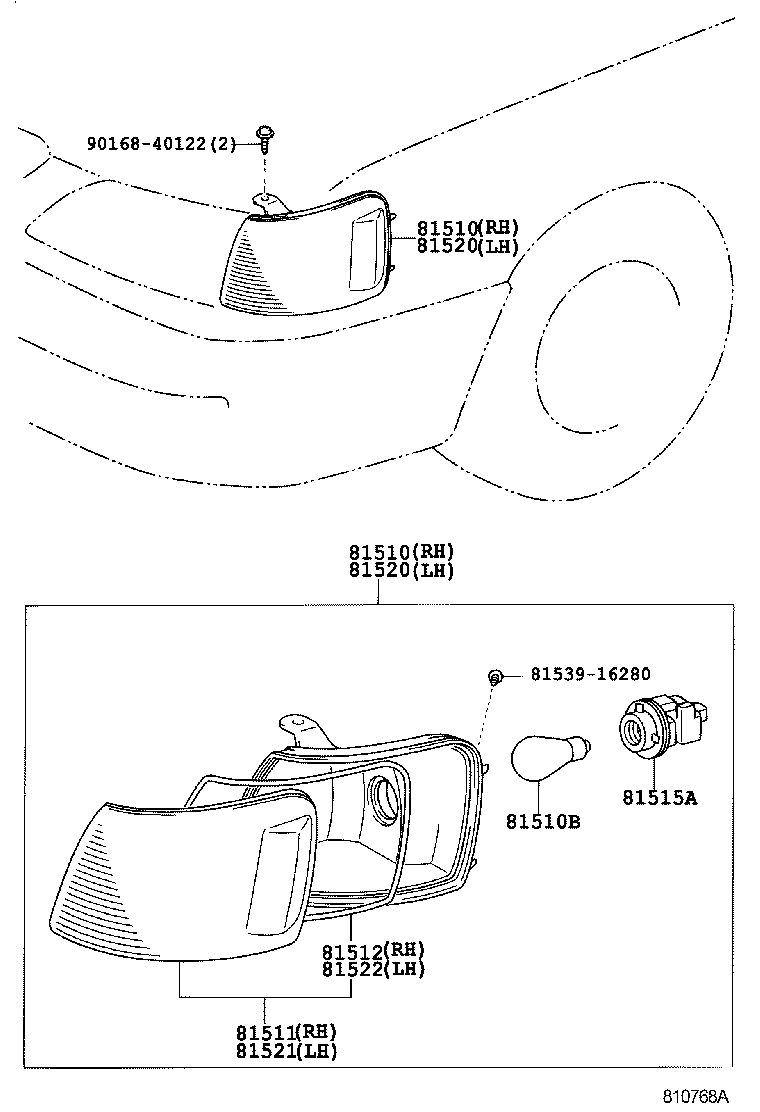

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16280 |
EL5#,NL50..4DS |
1 | ||
| 81510 - LAMP ASSY, FRONT TURN SIGNAL, RH | ||||
| 81510-16280 |
EL5#,NL50..4DS |
1 | ||
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
EL5#,NL50 12V 21W |
2 | ||
| 90981-15010 |
EL5#,NL50..4DS 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-16230 |
EL5#,NL50..4DS |
1 | ||
| 81511-16280 |
EL5#,NL50..4DS |
1 | ||
| 81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH | ||||
| 81512-16280 |
EL5#,NL50..4DS |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 81515-16280 |
EL5#,NL50..4DS |
2 | ||
| 90075-99078 |
EL5#,NL50 |
2 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16280 |
EL5#,NL50..4DS |
1 | ||
| 81520 - LAMP ASSY, FRONT TURN SIGNAL, LH | ||||
| 81520-16280 |
EL5#,NL50..4DS |
1 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-16280 |
EL5#,NL50..4DS |
1 | ||
| 81521-16230 |
EL5#,NL50..4DS |
1 | ||
| 81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH | ||||
| 81512-16280 |
EL5#,NL50..4DS |
1 | ||
| Common parts | ||||
| 81539-16280 | ||||
| 90168-40122 | ||||
(9409-9712)4DS
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81510B - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 99132-11210 |
EL5#,NL50 12V 21W |
2 | ||
| 90981-15010 |
EL5#,NL50..4DS 12V 21W |
2 | ||
| 81511 - LENS, FRONT TURN SIGNAL LAMP, RH | ||||
| 81511-16230 |
EL5#,NL50..4DS |
1 | ||
| 81511-16280 |
EL5#,NL50..4DS |
1 | ||
| 81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP | ||||
| 81515-16280 |
EL5#,NL50..4DS |
2 | ||
| 90075-99078 |
EL5#,NL50 |
2 | ||
| 81521 - LENS, FRONT TURN SIGNAL LAMP, LH | ||||
| 81521-16280 |
EL5#,NL50..4DS |
1 | ||
| 81521-16230 |
EL5#,NL50..4DS |
1 | ||
| Common parts | ||||
| 90168-40122 | ||||
