EL51-AEKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4DS

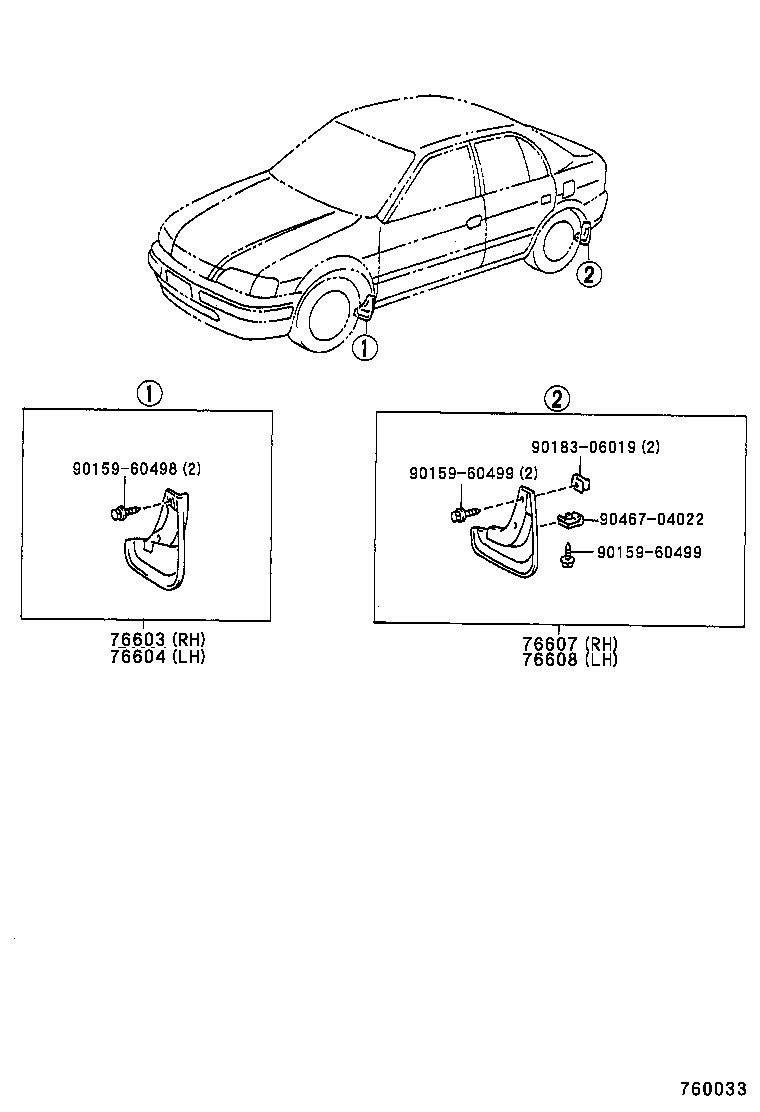

Click highlighted areas on diagram

diagram 76603 76604 76607 76608 9015960498 9015960499 9015960499 9018306019 9046704022
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19265

EL5#,NL50

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19265

EL5#,NL50

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19525

EL5#,NL50

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19525

EL5#,NL50

 1
Common parts
90159-60498
90159-60499
90183-06019
90467-04022
