EL51-AEKDK (1994)

Toyota Corsa/Tercel

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4DS

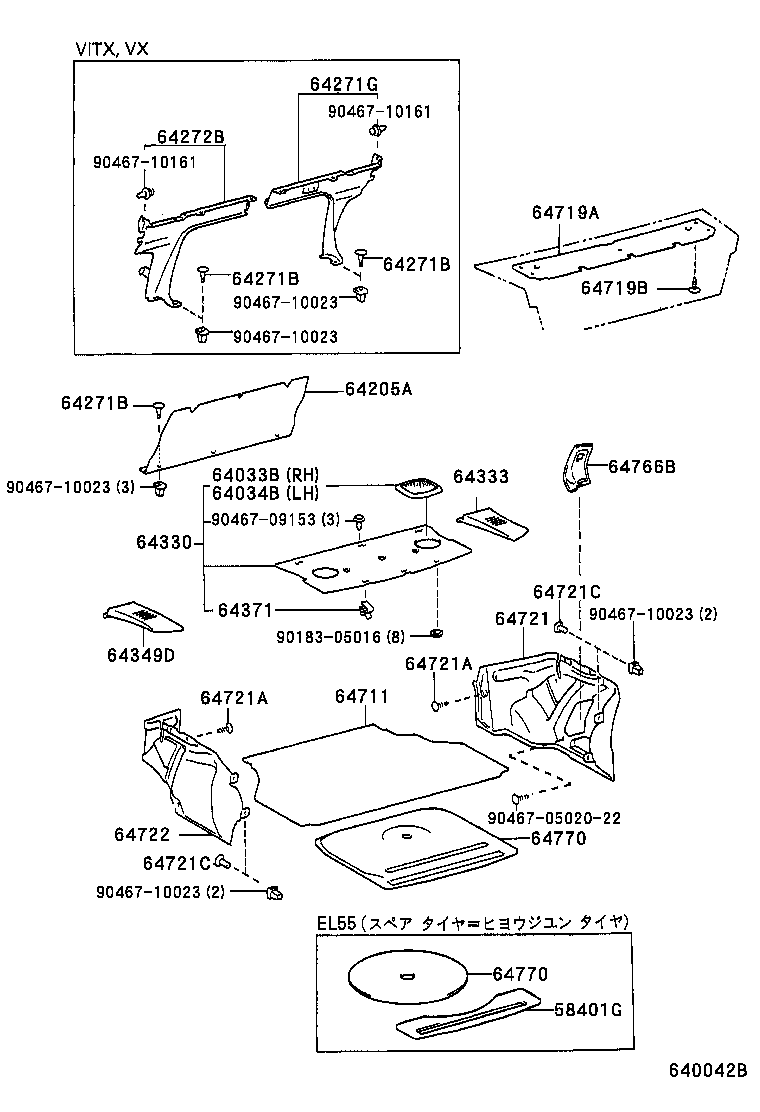

Click highlighted areas on diagram

diagram 58401G 64033B 64034B 64205A 64271B 64271B 64271B 64271G 64272B 64330 64333 64349D 64371 64711 64719A 64719B 64721 64721A 64721A 64721C 64721C 64722 64766B 64770 64770 9018305016 904670502022 9046709153 9046710023 9046710023 9046710023 9046710023 9046710023 9046710161 9046710161
Part # Description Qty Price
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-16030C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#

 1
64275-16030C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#,4#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#

 3
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#,4#

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#

 3
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#,4#

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#

 3
90467-07115C0

EL5#,NL50..4DS..(AVE,AX,AXX,JOI)

BLACK,TRIM1#,4#

 3
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-16830E0

EL5#,NL50..4DS

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),OAK,TRIM4#

 1
64330-16560B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
64330-16830B0

EL5#,NL50..4DS

ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ),SHADOW GRAY,TRIM1#

 1
64330-16580B0

EL5#,NL50..4DS

ｱﾘ(ﾊｲﾏｳﾝﾄ ｽﾄﾂﾌﾟﾗﾝﾌﾟ),BLUISH GRAY,TRIM1#

 1
64333 - COVER, PACKAGE TRAY TRIM, SIDE
64333-16070B1

EL5#,NL50..4DS

SHADOW GRAY,TRIM1#

 1
64333-16070B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
64333-16070E0

EL5#,NL50..4DS

OAK,TRIM4#

 1
64349D - COVER, PACKAGE TRAY TRIM SIDE, LH
64349-16050B1

EL5#,NL50..4DS

SHADOW GRAY,TRIM1#

 1
64349-16050E0

EL5#,NL50..4DS

OAK,TRIM4#

 1
64349-16050B0

EL5#,NL50..4DS

BLUISH GRAY,TRIM1#

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-16010

EL5#,NL50..4DS

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-16190C0

EL51,53,NL50..4DS

BLACK,TRIM1#

 1
64711-16190C0

EL51,53,NL50..4DS

BLACK,TRIM1#,4#

 1
64711-16130C0

EL51,53,NL50..4DS

BLACK,TRIM1#

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-16030C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64719-16030C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 1
64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR)
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#

 5
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 5
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-16071C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64721-16070C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64721-16100C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 1
64721-16100C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#

 8
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#

 7
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 7
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#

 8
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#

 7
90467-0509622

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 7
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 4
90467-14041C0

EL5#,NL50..4DS

BLACK,TRIM1#

 4
64721C - CLIP(LUGGAGE COMPARTMENT)
90467-14041C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 4
90467-14041C0

EL5#,NL50..4DS

BLACK,TRIM1#

 4
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-16120C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 1
64722-16070C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64722-16071C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64722-16120C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64766B - COVER, QUARTER TRIM JACK
64766-16050C0

EL5#,NL50..4DS

BLACK,TRIM1#

 1
64766-16050C0

EL5#,NL50..4DS

BLACK,TRIM1#,4#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-16240

EL51,53,NL50..4DS

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-16230

EL51,53,NL50..4DS

 1
64770 - COVER ASSY, SPARE WHEEL
64770-16240

EL51,53,NL50..4DS

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-16230

EL51,53,NL50..4DS

 1
Common parts
90183-05016
90467-0502022
90467-09153
90467-10023
90467-10161
