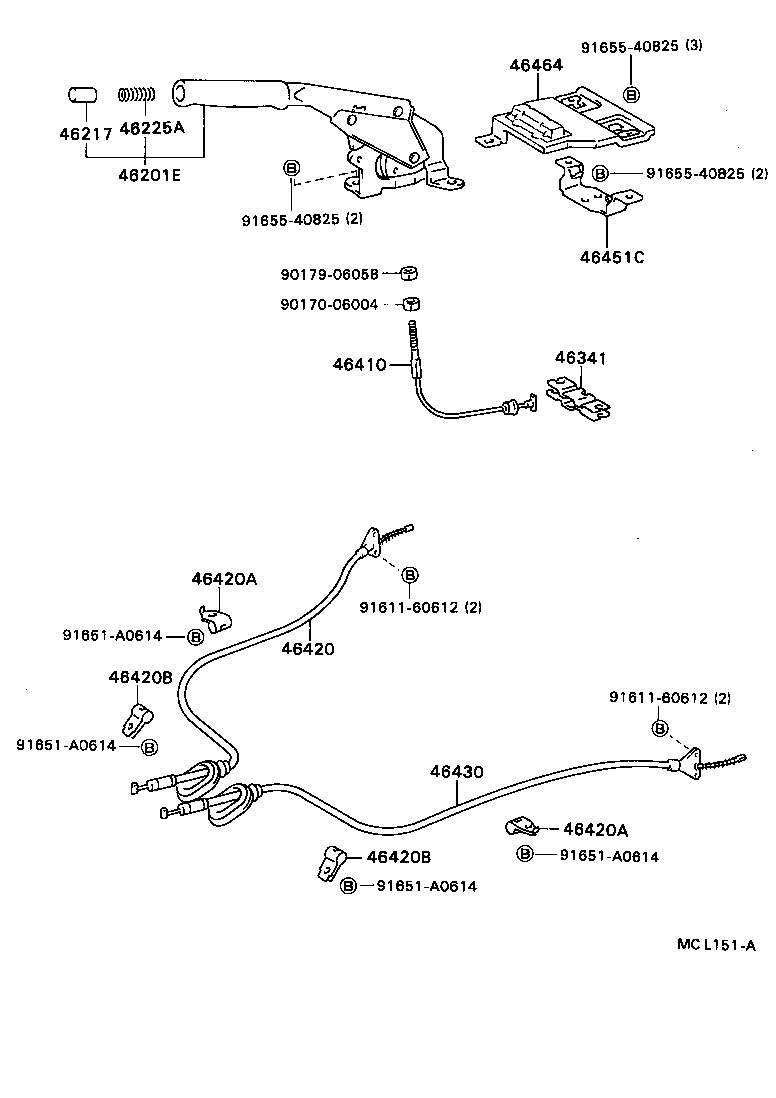

Toyota Corsa/tercel EL45 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-1010004	EL45 GRAISH BLUE,TRIM8#	09/1990 - 09/1994	1
46201-1010001	EL45 BLACK,TRIM2#	09/1990 - 09/1994	1
46201-1010007	EL45 SPRUCE,TRIM6#	09/1990 - 09/1994	1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1202011	EL4#,NL40 BLACK,TRIM2#	09/1990 - 08/1992	1
46217-1202034	EL4#,NL40 GRAISH BLUE,TRIM8#	09/1990 - 09/1994	1
46217-1202017	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	09/1990 - 09/1994	1
46217-12020C0	EL4#,NL40 GRAY,TRIM2#	08/1992 - 09/1994	1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069	EL4#,NL40	09/1990 - 09/1994	1
46341 - EQUALIZER, PARKING BRAKE
46341-10020	EL45	09/1990 - 09/1994	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-16040	EL45	09/1990 - 09/1994	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-16140	EL45	09/1990 - 08/1992	1
46420-16190	EL45	08/1992 - 09/1994	1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-10641	EL4#,NL40	09/1990 - 09/1994	2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-10641	EL4#,NL40	09/1990 - 09/1994	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01585	EL4#,NL40	09/1990 - 09/1994	2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01585	EL4#,NL40	09/1990 - 09/1994	2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-16190	EL45	08/1992 - 09/1994	1
46430-16140	EL45	09/1990 - 08/1992	1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-10020	EL45	09/1990 - 09/1994	1
46464 - PLATE, CABLE CLAMP SUPPORT
46464-16010	EL45	09/1990 - 09/1994	1
Common parts
90170-06004
90179-06058
91611-60612
91651-A0614
91655-40825

EL45-BGPSK (1990)

(9009- )EL45
