Toyota Corsa/tercel EL45 SHIFT LEVER & RETAINER

Part #	Description	Period	Qty
33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT)
33054-16030	EL4#,NL40..ATM	09/1990 - 09/1994	1
33054B - BOLT(FOR SHIFT LEVER NO.2)
90119-08606	EL4#,NL40..ATM	09/1990 - 09/1994	1
33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33058-16030	EL4#,NL40..ATM	09/1990 - 09/1994	1
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-16140	EL4#,NL40..ATM	09/1990 - 09/1994	1
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503-10160	EL4#,NL40..ATM	09/1990 - 09/1994	1
33503G - BUSH(FOR SHIFT LEVER)
90386-11012	EL4#,NL40..ATM	09/1990 - 09/1994	2
33503G - BUSH(FOR SHIFT LEVER)
90386-11012	EL4#,NL40..ATM	09/1990 - 09/1994	2
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109	EL4#,NL40..ATM	09/1990 - 09/1994	2
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109	EL4#,NL40..ATM	09/1990 - 09/1994	2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-20080J0	EL4#,NL40..ATM EISEN BLUE,TRIM8#	09/1990 - 09/1994	1
33542-2008001	EL4#,NL40..ATM BLACK,TRIM2#	09/1990 - 08/1992	1
33542-20080C0	EL4#,NL40..ATM BLACK,TRIM2#	08/1992 - 09/1994	1
33542-20080G0	EL4#,NL40..ATM..(AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) SPRUCE,TRIM6#	09/1990 - 09/1994	1
33511 - SHAFT, CONTROL (FOR FLOOR SHIFT)
90101-08108	EL4#,NL40..ATM	09/1990 - 09/1994	1
33550D - BULB, POSITION INDICATOR LAMP
90981-11040	EL4#,NL40..ATM 12V 2W	09/1990 - 09/1994	1
33550E - CAP, POSITION INDICATOR LAMP
90339-04014	EL4#,NL40..ATM	09/1990 - 09/1994	1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-10010	EL4#,NL40..ATM	09/1990 - 09/1994	1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-06063	EL4#,NL40..ATM	09/1990 - 09/1994	1
33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT)
33594-16030	EL4#,NL40..ATM	09/1990 - 09/1994	1
33623 - BUTTON, SHIFT LEVER KNOB
33623-2002024	EL4#,NL40..ATM BLUE,TRIM8#	09/1990 - 08/1992	1
33623-2002001	EL4#,NL40..ATM BLACK,TRIM2#	09/1990 - 08/1992	1
33623-20020C0	EL4#,NL40..ATM BLACK,TRIM2#	08/1992 - 09/1994	1
33623-20020J0	EL4#,NL40..ATM EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
33623-2002007	EL4#,NL40..ATM..(AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) SPRUCE,TRIM6#	09/1990 - 08/1992	1
33623-20020G0	EL4#,NL40..ATM..(AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) SPRUCE,TRIM6#	08/1992 - 09/1994	1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009	EL4#,NL40..ATM	09/1990 - 09/1994	1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-24010	EL4#,NL40..ATM	09/1990 - 09/1994	1
33631 - ROD, DETENT
33631-32030	EL4#,NL40..ATM	09/1990 - 09/1994	1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08117	EL4#,NL40..ATM	09/1990 - 09/1994	1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003	EL4#,NL40..ATM	09/1990 - 09/1994	1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-10030	EL4#,NL40..ATM	09/1990 - 09/1994	1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010	EL4#,NL40..ATM	09/1990 - 09/1994	1
33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT)
90206-12002	EL4#,NL40..ATM	09/1990 - 09/1994	1
33872 - LINK, SHIFT LOCK RELEASE, NO.2
33872-16010	EL4#,NL40..ATM	09/1990 - 09/1994	1
33876 - GUIDE, SHIFT LOCK PLATE
33876-16020	EL4#,NL40..ATM	09/1990 - 09/1994	1
33877 - LABEL, SHIFT LOCK INFORMATION, NO.1
33877-16020	EL4#,NL40..ATM	09/1990 - 01/1994	1
33886 - STOPPER, SHIFT LEVER
33886-16010	EL4#,NL40..ATM	09/1990 - 09/1994	1
33888 - CLAMP, SHIFT LOCK INFORMATION LABEL
33888-16010	EL4#,NL40..ATM	09/1990 - 09/1994	1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-35051	EL4#,NL40..ATM	09/1990 - 01/1991	1
35906-10040	EL4#,NL40..ATM	01/1991 - 09/1994	1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-16110	EL4#,NL40..ATM	09/1990 - 09/1994	1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-1606007	EL4#,NL40..ATM..(AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) SPRUCE,TRIM6#	09/1990 - 08/1992	1
35971-1606001	EL4#,NL40..ATM BLACK,TRIM2#	09/1990 - 08/1992	1
35971-16060J0	EL4#,NL40..ATM EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
35971-1606004	EL4#,NL40..ATM GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
35971-16060G0	EL4#,NL40..ATM..(AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ) SPRUCE,TRIM6#	08/1992 - 09/1994	1
35971-16060C0	EL4#,NL40..ATM BLACK,TRIM2#	08/1992 - 09/1994	1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-10080	EL4#,NL40..ATM	09/1990 - 09/1994	1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-10030	EL4#,NL40..ATM	09/1990 - 09/1994	1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-10010	EL4#,NL40..ATM	09/1990 - 09/1994	1
Common parts
90119-08441
90209-12010
90386-12040
90387-08114
93315-14010
93315-15012
94120-40800
94512-00800
Linked diagrams
8401
8410

Part #	Description	Period	Qty
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-10010	EL4#,NL40	09/1990 - 08/1992	1
33574-10010	EL4#,NL40..ATM	08/1992 - 09/1994	1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-10030	EL4#,NL40	09/1990 - 09/1994	1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-16090	EL43,45..4FC	09/1990 - 09/1994	1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01281	EL4#,NL40..ATM	09/1990 - 09/1994	1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01288	EL4#,NL40..ATM	09/1990 - 09/1994	1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-10020	EL43,45,NL40..4FC	09/1990 - 09/1994	1
Common parts
90159-60080
90179-08061
90468-14016
90468-14017
91611-60816
91656-40618

EL45-BGPSK (1990)

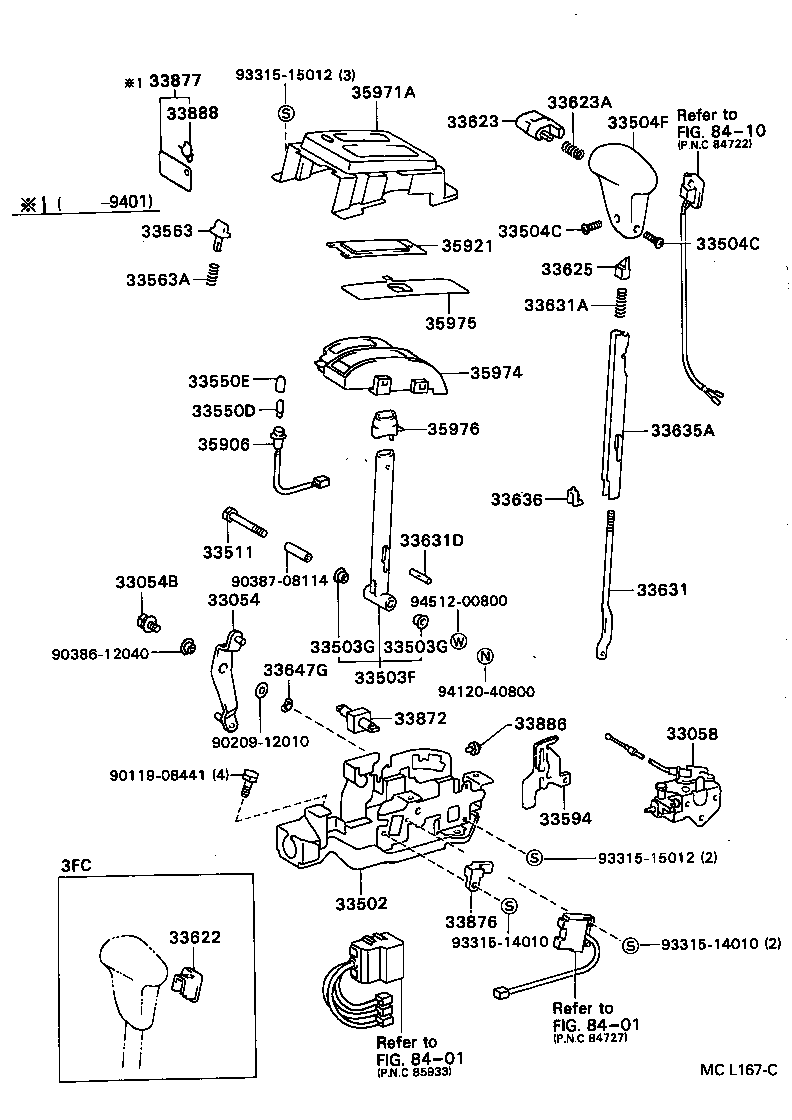

ILLUST NO. 1 OF 2(9009- )ATM

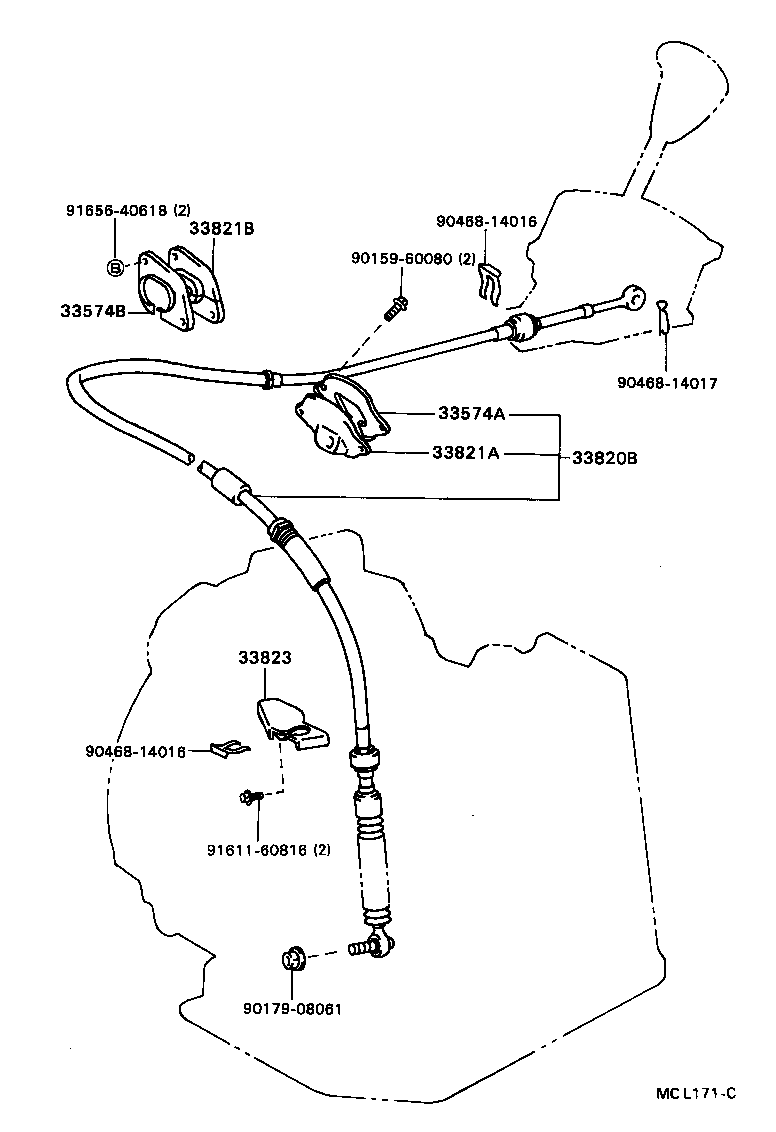

ILLUST NO. 2 OF 2(9009- )ATM
