EL45-BGPDK (1990)
Toyota Corsa/Tercel
(9009- )

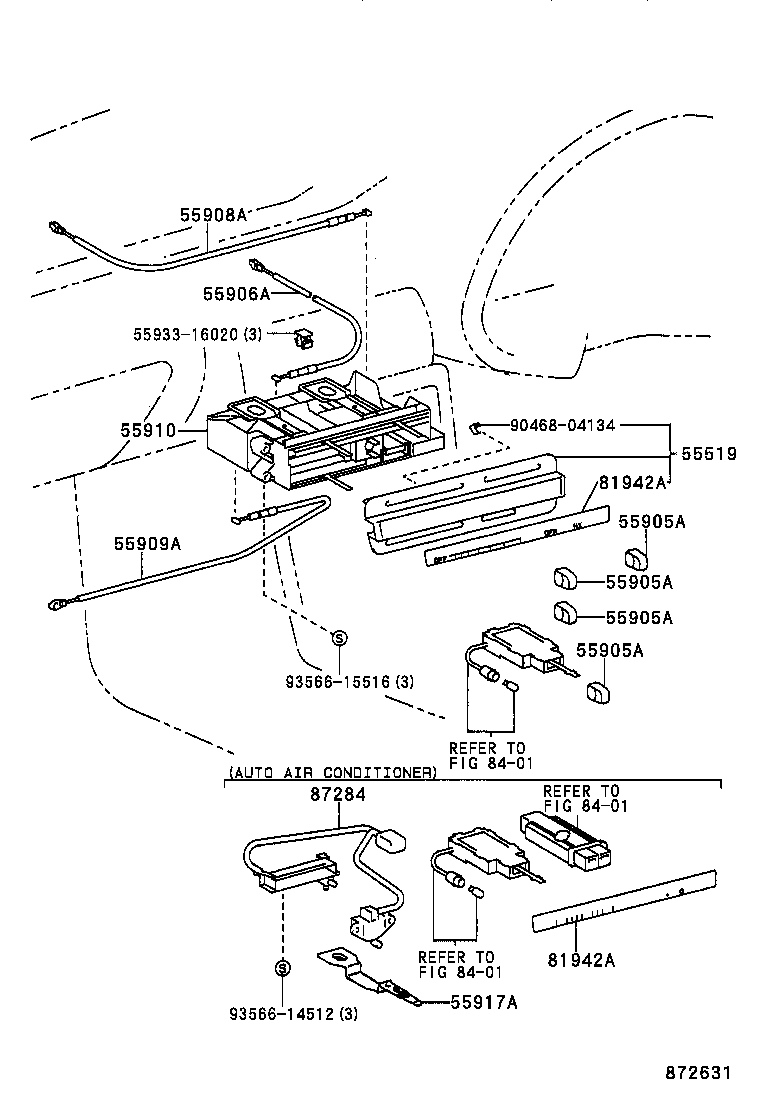

LEVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-1601001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 55519-16011W4 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 55519-1601007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 55519-1601004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAYISH BLUE,TRIM8# |
1 | ||
| 55519-1601122 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 55519-16011G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-16070 |
EL4#,NL40..DSL,EFI |
1 | ||
| 55906-16070 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-16070 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 55908-16070 |
EL4#,NL40..DSL,EFI |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16070 |
EL4#,NL40..DSL,EFI |
1 | ||
| 55909-16070 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-16140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 55910-16141 |
EL4#,NL40..DSL,EFI |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-16050 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| 55917-16050 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-1613004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAISH BLUE,TRIM8# |
1 | ||
| 81942-1613007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 81942-1613001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 81942-16171J0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 81942-16171C0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,BLACK,TRIM2# |
1 | ||
| 81942-16131C0 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 81942-16171C0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,TRIM2# |
1 | ||
| 81942-16131G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 81942-16131J0 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171J0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,TRIM6# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-1613004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAISH BLUE,TRIM8# |
1 | ||
| 81942-1613007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 81942-1613001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 81942-16171J0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 81942-16171C0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,BLACK,TRIM2# |
1 | ||
| 81942-16131C0 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 81942-16171C0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,TRIM2# |
1 | ||
| 81942-16131G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 81942-16131J0 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171J0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,TRIM6# |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-16090 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| Common parts | ||||
| 55933-16020 | ||||
| 90468-04134 | ||||
| 93566-14512 | ||||
| 93566-15516 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(9009- )

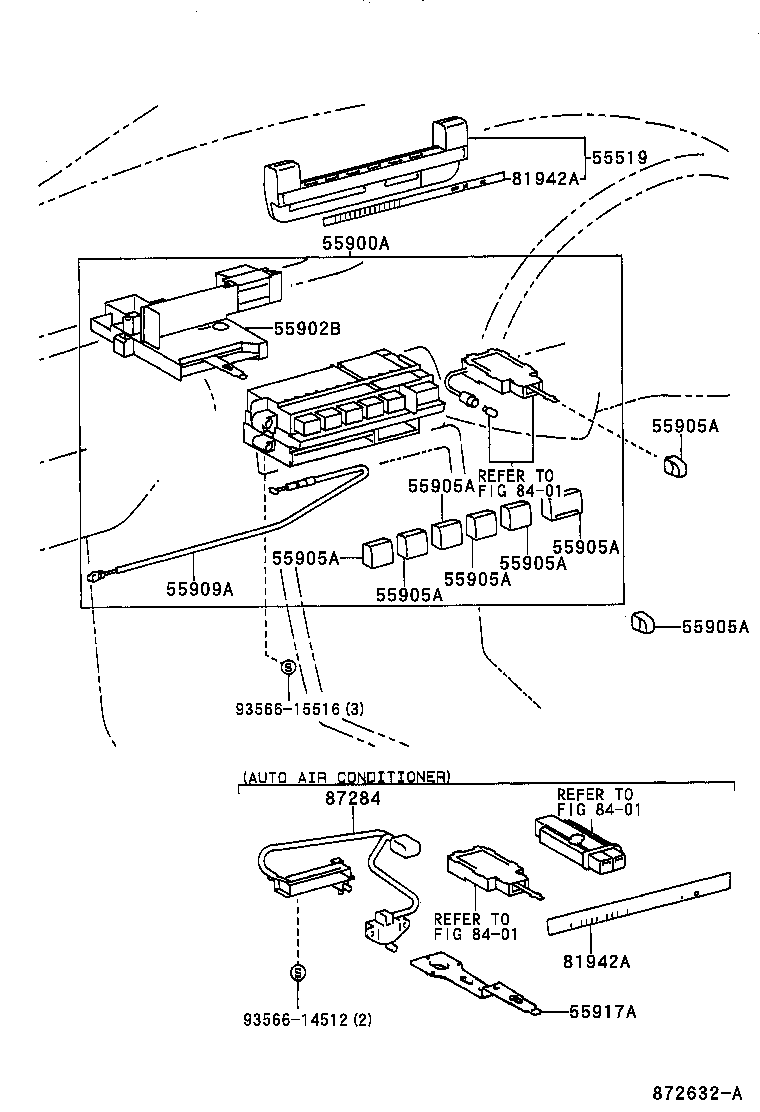

PUSH TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-1601001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 55519-16011W4 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 55519-1601007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 55519-1601004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAYISH BLUE,TRIM8# |
1 | ||
| 55519-1601122 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 55519-16011G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS LEVER |
4 | ||
| 55905-89115 |
EL4#,NL40..DSL,EFI |
4 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-16070 |
EL4#,NL40..DSL,EFI |
1 | ||
| 55909-16070 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 55917A - LEVER, TEMPERATURE DAMPER CONTROL | ||||
| 55917-16050 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| 55917-16050 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-1613004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAISH BLUE,TRIM8# |
1 | ||
| 81942-1613007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 81942-1613001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 81942-16171J0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 81942-16171C0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,BLACK,TRIM2# |
1 | ||
| 81942-16131C0 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 81942-16171C0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,TRIM2# |
1 | ||
| 81942-16131G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 81942-16131J0 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171J0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,TRIM6# |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-1613004 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS GRAISH BLUE,TRIM8# |
1 | ||
| 81942-1613007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS SPRUCE,TRIM6# |
1 | ||
| 81942-1613001 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS BLACK,TRIM2# |
1 | ||
| 81942-16171J0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 81942-16171C0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,BLACK,TRIM2# |
1 | ||
| 81942-16131C0 |
EL4#,NL40..DSL,EFI BLACK,TRIM2# |
1 | ||
| 81942-16171C0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,BLACK,TRIM2# |
1 | ||
| 81942-16131G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 81942-16131J0 |
EL4#,NL40..DSL,EFI EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171J0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,EISEN BLUE,TRIM8# |
1 | ||
| 81942-16171G0 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP ｵ-ﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ,SPRUCE,TRIM6# |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-16090 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| Common parts | ||||
| 93566-14512 | ||||
| 93566-15516 | ||||
| Linked diagrams | ||||
| 8401 | ||||

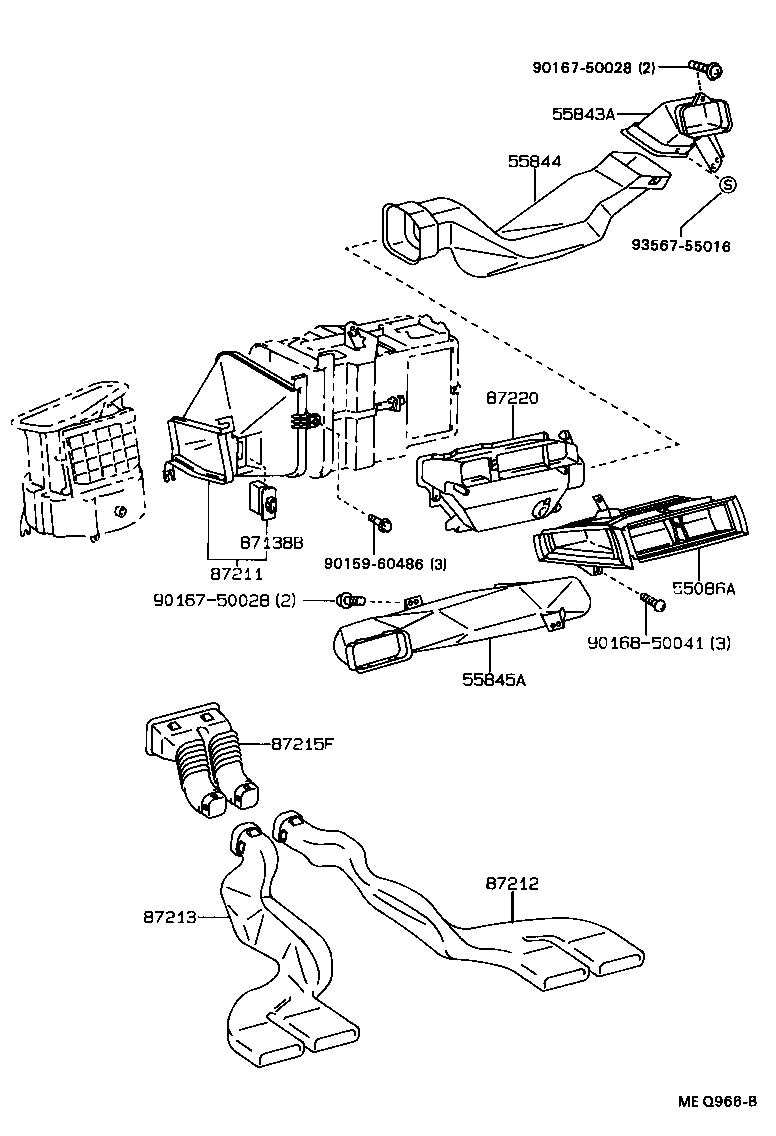

(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-16060 |
EL4#,NL40 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-16070 |
EL4#,NL40 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-16070 |
EL4#,NL40 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-16070 |
EL4#,NL40 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-16130 |
EL4#,NL40 |
1 | ||
| 87138-16130 |
EL4#,NL40..DSL,EFI |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-16120 |
EL4#,NL40..DSL,EFI |
1 | ||
| 87201-16120 |
EL4#,NL40 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-10100 |
EL4#,NL40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-10090 |
EL4#,NL40 ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-10010 |
EL4#,NL40 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-16010 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 90159-60486 | ||||
| 90167-50028 | ||||
| 90168-50041 | ||||
| 93567-55016 | ||||
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

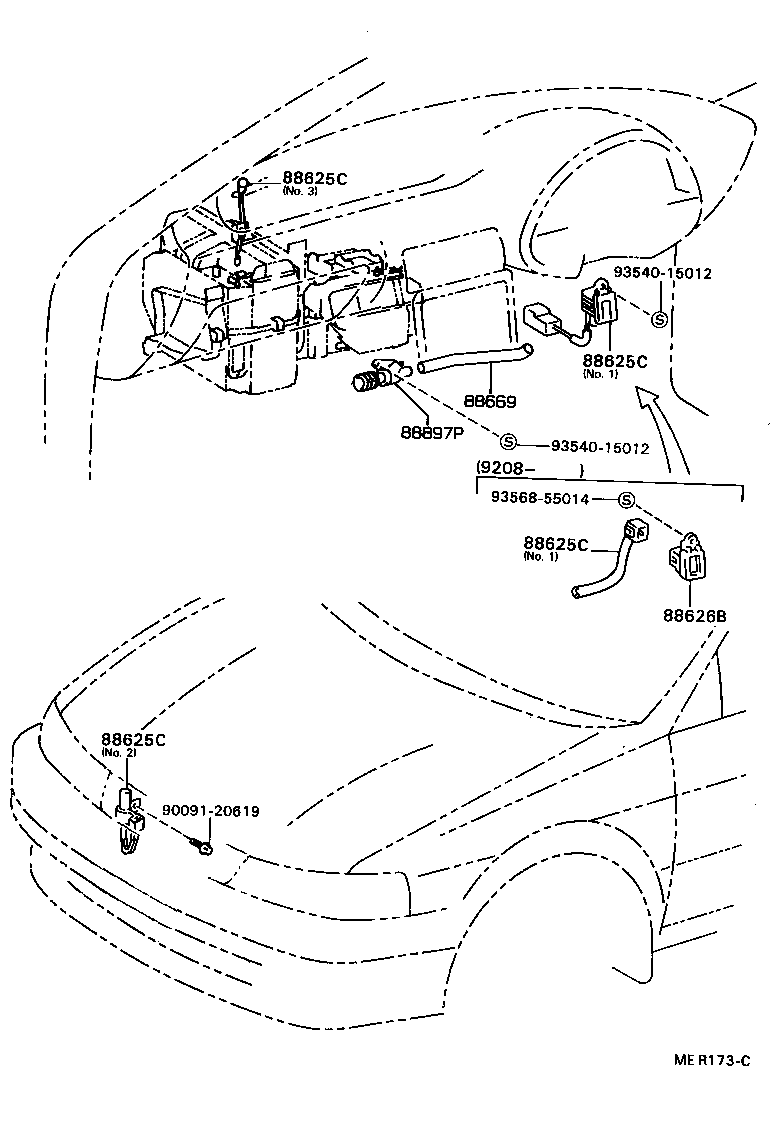

| 88625C - THERMISTOR, COOLER | ||||
| 88625-16120G0 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 88625-16120C0 |
EL4#;NL40..4FC BLACK,TRIM2# |
1 | ||
| 88625-16130 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.3 |
1 | ||
| 88625-16121 |
NL40..VITX,VX;EL45..AVE,AXX,JOI,MOA NO.1 |
1 | ||
| 88625-16120J0 |
EL4#;NL40..4FC GRAISH BLUE,TRIM8# |
1 | ||
| 88625-16190 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.2 |
1 | ||
| 88625-16140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
1 | ||
| 88625-16130 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-16120C0 |
EL4#;NL40..4FC BLACK,TRIM2# |
1 | ||
| 88625-16130 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.3 |
1 | ||
| 88625-16120G0 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 88625-16121 |
NL40..VITX,VX;EL45..AVE,AXX,JOI,MOA NO.1 |
1 | ||
| 88625-16120J0 |
EL4#;NL40..4FC GRAISH BLUE,TRIM8# |
1 | ||
| 88625-16190 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.2 |
1 | ||
| 88625-16140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
1 | ||
| 88625-16130 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-16120C0 |
EL4#;NL40..4FC BLACK,TRIM2# |
1 | ||
| 88625-16130 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.3 |
1 | ||
| 88625-16120G0 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 88625-16121 |
NL40..VITX,VX;EL45..AVE,AXX,JOI,MOA NO.1 |
1 | ||
| 88625-16120J0 |
EL4#;NL40..4FC GRAISH BLUE,TRIM8# |
1 | ||
| 88625-16190 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.2 |
1 | ||
| 88625-16140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
1 | ||
| 88625-16130 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.3 |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-16120C0 |
EL4#;NL40..4FC BLACK,TRIM2# |
1 | ||
| 88625-16130 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.3 |
1 | ||
| 88625-16120G0 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 88625-16121 |
NL40..VITX,VX;EL45..AVE,AXX,JOI,MOA NO.1 |
1 | ||
| 88625-16120J0 |
EL4#;NL40..4FC GRAISH BLUE,TRIM8# |
1 | ||
| 88625-16190 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.2 |
1 | ||
| 88625-16140 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
1 | ||
| 88625-16130 |
NL40;EL41,45..AVE,AX,AXX,JOI,MOA,SOP NO.3 |
1 | ||
| 88669 - HOSE, COOLER AIR | ||||
| 88669-16040 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 88669-16040 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP |
1 | ||
| 88897P - ASPIRATOR | ||||
| 88897-16010 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SZ,VITZ,VZ |
1 | ||
| 88897-16010 |
NL40..4FC;EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| Common parts | ||||
| 90091-20619 | ||||
| 93540-15012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
