EL45-BGPDK (1990)
Toyota Corsa/Tercel
ILLUST NO. 1 OF 6(9009- )EL4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-16511 |
EL43,45..4FC..EFI |
1 | ||
| 82121-16510 |
EL43,45..4FC..EFI |
1 | ||
| 82121-16512 |
EL43,45..4FC..EFI |
1 | ||
| 82121-16700 |
EL43,45..4FC..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
EL45 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
EL45 60A,ﾒｽ端子,黄 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30030 |
EL4#,NL40 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
EL4#,NL40 |
1 | ||
| 82823-22060 |
EL43..5F..EFIS;EL4#,NL40..DSL,EFI |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-32650 | ||||
| 82715-10100 | ||||
| 82715-10130 | ||||
| 82715-16060 | ||||
| 82715-16180 | ||||
| 82715-16210 | ||||
| 82715-16260 | ||||
| 82715-18050 | ||||
| 82715-18080 | ||||
| 82819-16190 | ||||
| 90119-06595 | ||||
| 90467-06131 | ||||
| 91611-60812 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91656-A0616 | ||||

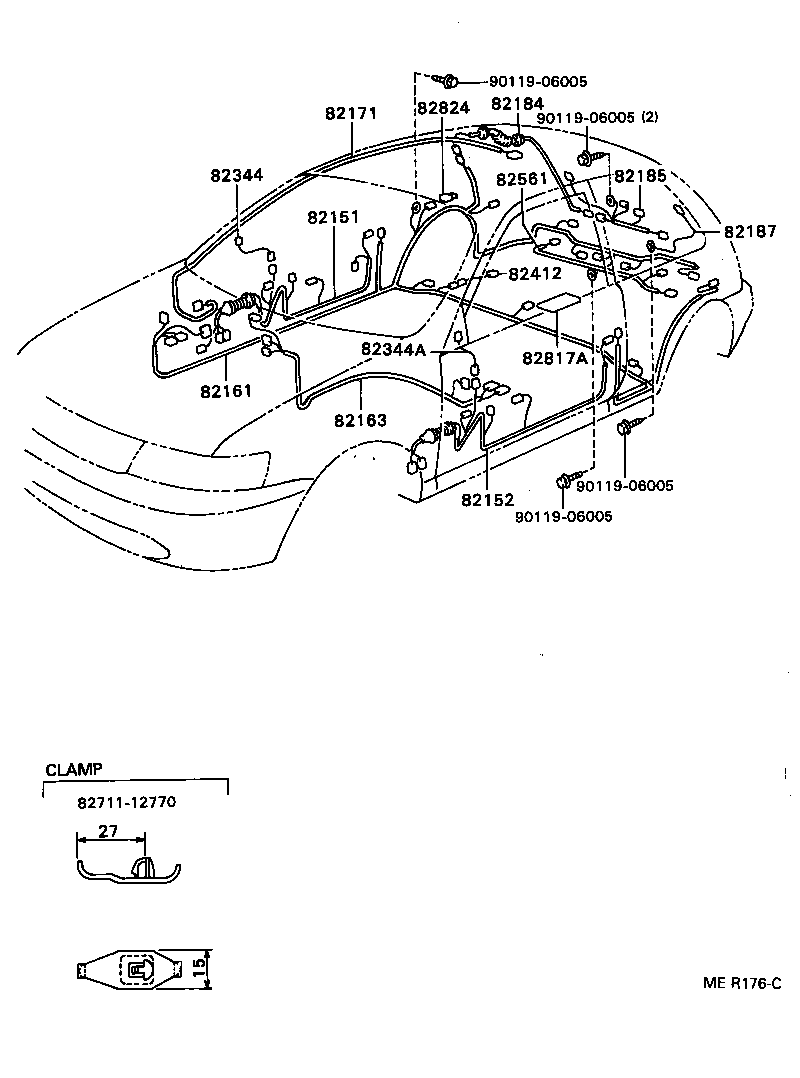

ILLUST NO. 4 OF 6(9009- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16180 |
EL41,45,NL40..AX,JOI,MOA,TX,VC |
1 | ||
| 82151-16181 |
EL41,45,NL40..AX,JOI,MOA,TX,VC |
1 | ||
| 82151-16240 |
EL4#,NL40..AX,JOI,MOA,TX,VC,VE,VIT |
1 | ||
| 82151-16280 |
EL41,45,NL40..3DS..(AVE,JOI,MOA,SOP) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-16180 |
EL41,45,NL40..AX,JOI,MOA,TX,VC |
1 | ||
| 82151-16181 |
EL41,45,NL40..AX,JOI,MOA,TX,VC |
1 | ||
| 82151-16240 |
EL4#,NL40..AX,JOI,MOA,TX,VC,VE,VIT |
1 | ||
| 82152-16250 |
EL41,45,NL40..3DS..(AVE,JOI,MOA,SOP) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16570 |
EL45..3DS *66 |
1 | ||
| 82161-16600 |
EL45..3DS |
1 | ||
| 82161-16610 |
EL45..3DS |
1 | ||
| 82161-16630 |
EL45..3DS ｱﾘ(ABS) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16130 |
EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) ｱﾘ(ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ) |
1 | ||
| 82171-16200 |
EL4#..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) ｱﾘ(ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ) |
1 | ||
| 82171-16120 |
EL4#,NL40..3DS |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16190 |
EL41,45,NL40..3DS..(JOI,MOA) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82184-16210 |
EL41,45,NL40..3DS..(JOI,MOA) |
1 | ||
| 82184-16200 |
EL43,45..3DS..EFI;EL41..3DS..(AVE,SOP) ｱﾘ(LED ﾂｷ ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82184-16190 |
EL43,45..3DS..EFI;EL41..3DS..(AVE,SOP) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16240 |
EL41,45,NL40..3DS..(JOI,MOA) ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-16270 |
EL43,45..3DS..EFI;EL41..3DS..(AVE,SOP) ｱﾘ(LEDﾂｷ ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82185-16280 |
EL41,45,NL40..3DS..(JOI,MOA) |
1 | ||
| 82185-16240 |
EL43,45..3DS..EFI;EL41..3DS..(AVE,SOP) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16070 |
EL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
1 | ||
| 82187-16070 |
EL4#,NL40..3DS |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-10080 |
EL45 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL4#,NL40 |
1 | ||
| 82817-16410 |
EL45 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20040 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 82824-20040 |
EL41..3DS..(TX,VC);EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 90119-06005 | ||||
ILLUST NO. 2 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
EL4# 右側 |
1 | ||
| 90980-07109 |
EL4# 左側 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
EL4# 右側 |
1 | ||
| 90980-07109 |
EL4# 左側 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1G140 |
EL4# |
1 | ||
| 82111-1G010 |
EL45 *66 |
1 | ||
| 82111-1G070 |
EL45 *66 |
1 | ||
| 82111-1G051 |
EL4# |
1 | ||
| 82111-1G050 |
EL4# |
1 | ||
| 82111-1G072 |
EL45 *66 |
1 | ||
| 82111-1G071 |
EL45 *66 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-16120 |
EL4#..4F,4FC,5F |
1 | ||
| 82123-16080 |
EL4# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
EL45 60A,ﾒｽ端子,黄 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82715-16090 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0614 | ||||
| 91656-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
ILLUST NO. 3 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1G740 |
EL45..AVE,AXX,JOI,MOA |
1 | ||
| 82131-1G870 |
EL45..AVE,AXX,JOI,MOA ｱﾘ(ABS) |
1 | ||
| 82131-1G710 |
EL45..JOI,MOA ｱﾘ(ABS) OR ｱﾘ(ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82131-1G700 |
EL45..AVE,AXX,JOI,MOA |
1 | ||
| 82131-1G711 |
EL45..JOI,MOA ｱﾘ(ABS) OR ｱﾘ(ｷﾔﾝﾊﾞｽ ﾄﾂﾌﾟ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82131-1G701 |
EL45..AVE,AXX,JOI,MOA |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-16030 |
EL45 |
1 | ||
| 82166-16090 |
EL4#,NL40..ATM..(DSL,EFI) |
1 | ||
| 82166-16100 |
EL45 ｱﾘ(ABS) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82711-12740 | ||||
| 82711-16750 | ||||
| 82715-16100 | ||||
| 82715-16120 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90119-06005 | ||||
| 90167-50028 | ||||
| 91656-40616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

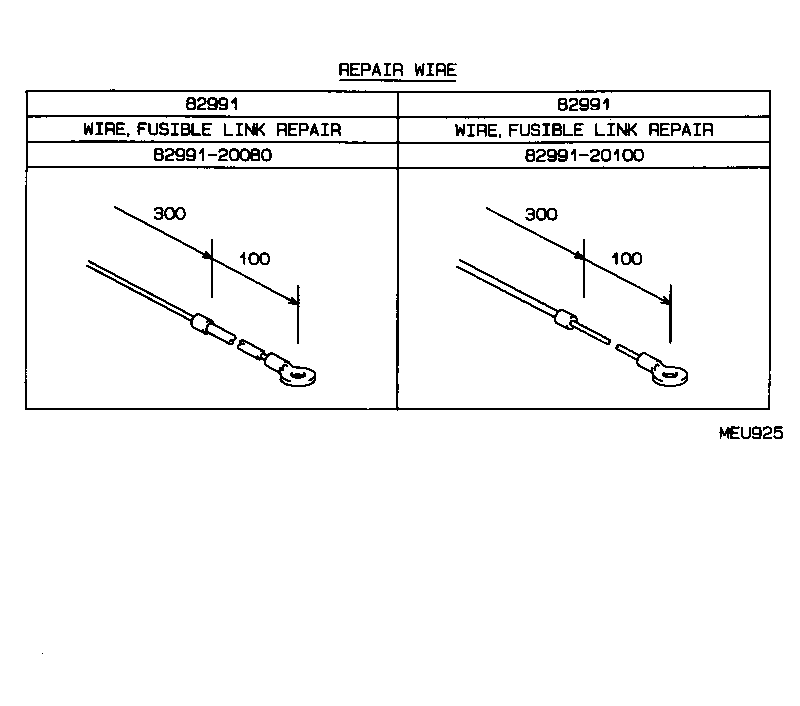

ILLUST NO. 6 OF 6(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20100 |
EL4#..ATM |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20100 |
EL4#..ATM |
1 | ||
| Common parts | ||||
| 82991-20080 | ||||
| 82991-20100 | ||||
