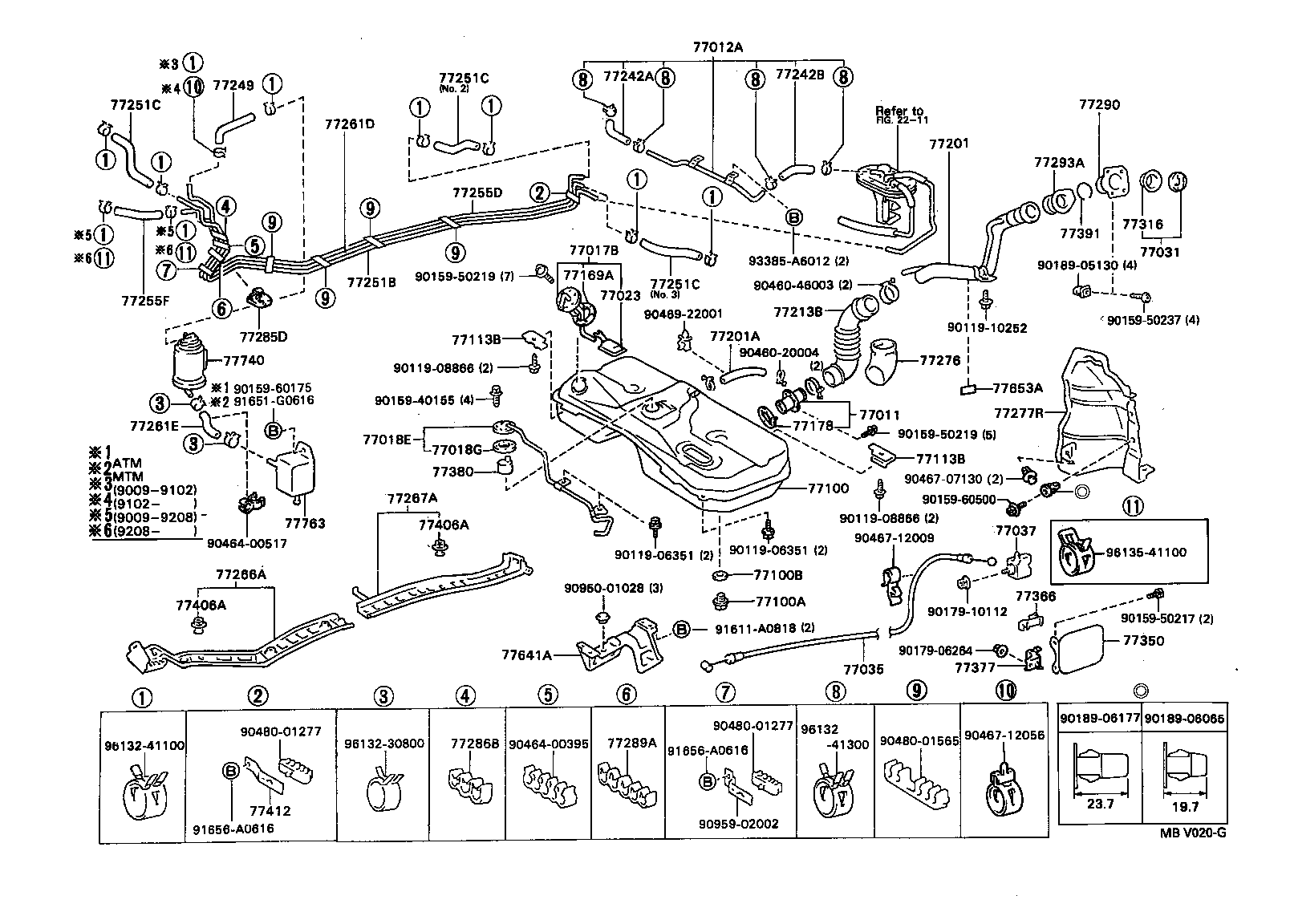

Toyota Corsa/tercel EL45 FUEL TANK & TUBE

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-10060	EL4#,NL40	09/1990 - 09/1994	1
77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77012-10040	EL45	09/1990 - 09/1994	1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-10210	EL45	09/1990 - 09/1994	1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-10010	EL45	09/1990 - 09/1994	1
77018G - GASKET, FUEL TANK EVAP/VENT TUBE
77179-26010	EL45	09/1990 - 09/1994	1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-32030	EL45	08/1992 - 08/1993	1
77023-16020	EL45	08/1993 - 09/1994	1
77031 - CAP ASSY, FUEL TANK
77310-16011	EL4#	09/1990 - 09/1994	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-16130	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 09/1994	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-16030	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	04/1991 - 09/1994	1
77037-12050	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 04/1991	1
77100 - TANK ASSY, FUEL
77001-10340	EL45	09/1990 - 09/1994	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	EL45	09/1990 - 08/1993	2
77100B - GASKET(FOR FUEL TANK)
90430-12245	EL45	09/1990 - 08/1993	2
77113B - PLATE, FUEL TANK SIDE
77113-10040	EL45 ﾏｰｸ F	09/1990 - 09/1994	2
77113-10030	EL45 ﾏｰｸ R	09/1990 - 09/1994	2
77113B - PLATE, FUEL TANK SIDE
77113-10040	EL45 ﾏｰｸ F	09/1990 - 09/1994	2
77113-10030	EL45 ﾏｰｸ R	09/1990 - 09/1994	2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14010	EL45	08/1992 - 09/1994	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030	EL4#,NL40	08/1992 - 09/1994	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16181	EL45	10/1990 - 09/1994	1
77201-16180	EL45	09/1990 - 10/1990	1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
95311-11024	EL45 長さ=240	10/1990 - 09/1994	1
95311-11022	EL45 長さ=220	09/1990 - 10/1990	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-10080	EL45	09/1990 - 09/1994	1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95333-08011	EL45 長さ=110	09/1990 - 09/1994	1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95333-08020	EL45 長さ=200,内径=8	09/1990 - 09/1994	1
77249 - HOSE, FUEL EMISSION
77249-16010	EL4#	09/1990 - 09/1994	1
77251B - TUBE, FUEL MAIN
77251-16180	EL45	09/1990 - 09/1994	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77279-10020	EL45 長さ=200,RR NO.2	09/1990 - 08/1992	1
77419-10020	EL45 長さ=110	09/1990 - 08/1992	1
77279-10050	EL45 長さ=130	01/1993 - 09/1994	1
77419-10030	EL45 長さ=130,RR NO.3	09/1990 - 08/1992	1
77279-10020	EL45 長さ=200	08/1992 - 01/1993	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77279-10020	EL45 長さ=200,RR NO.2	09/1990 - 08/1992	1
77419-10020	EL45 長さ=110	09/1990 - 08/1992	1
77279-10050	EL45 長さ=130	01/1993 - 09/1994	1
77419-10030	EL45 長さ=130,RR NO.3	09/1990 - 08/1992	1
77279-10020	EL45 長さ=200	08/1992 - 01/1993	1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77279-10020	EL45 長さ=200,RR NO.2	09/1990 - 08/1992	1
77419-10020	EL45 長さ=110	09/1990 - 08/1992	1
77279-10050	EL45 長さ=130	01/1993 - 09/1994	1
77419-10030	EL45 長さ=130,RR NO.3	09/1990 - 08/1992	1
77279-10020	EL45 長さ=200	08/1992 - 01/1993	1
77255D - TUBE, FUEL RETURN
77255-16170	EL45	09/1990 - 09/1994	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
23271-11140	EL4# *H,L=420	04/1993 - 09/1994	1
23271-11110	EL45 *H,L=420	09/1990 - 04/1993	1
95333-04020	EL45 長さ=200	09/1990 - 08/1992	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-16100	EL45	09/1990 - 09/1994	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-08020	EL4#..ATM 長さ=200,内径=8	09/1990 - 09/1994	1
77419-10030	EL45 長さ=130	08/1992 - 09/1994	1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-10030	EL4#,NL40	09/1990 - 09/1994	1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-16020	EL4#,NL40	09/1990 - 09/1994	1
77276 - PROTECTOR, FUEL HOSE
77276-10040	EL45	09/1990 - 09/1994	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-16090	EL4#,NL40..3DS	09/1990 - 09/1994	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-10010	EL4#,NL40	07/1993 - 09/1994	1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-10020	EL4#	09/1990 - 09/1994	1
77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3
77289-10030	EL4#,NL40	09/1990 - 09/1994	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16070	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 09/1994	1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-16050	EL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)	09/1990 - 09/1994	1
77316 - GASKET, FUEL TANK CAP
77316-16010	EL4#,NL40	09/1990 - 09/1994	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-16140	EL41,45,NL40..3DS..(JOI,MOA)	09/1990 - 09/1994	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-20030	EL4#,NL40	09/1990 - 09/1994	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20050	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 09/1994	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	EL4#,NL40	08/1992 - 09/1994	1
77380-14020	EL4#,NL40	09/1990 - 08/1992	1
77391 - RING, FUEL INLET BOX
77391-14020	EL4#,NL40	09/1990 - 09/1994	1
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL4#,NL40	09/1990 - 09/1994	4
77406A - CLIP(FOR FUEL TUBE PROTECTOR)
90467-16023	EL4#,NL40	09/1990 - 09/1994	4
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-10010	EL4#,NL40	09/1990 - 09/1994	1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-10050	EL45	09/1990 - 09/1994	1
77653A - CUSHION, FUEL TANK, NO.3
77653-10030	EL45	09/1990 - 09/1994	1
77740 - CANISTER ASSY, CHARCOAL
77704-16160	EL4#	09/1990 - 09/1994	1
77763 - CASE, CHARCOAL CANISTER DRAIN
77763-10010	EL4#..ATM	09/1990 - 09/1994	1
Common parts
90119-06351
90119-08866
90119-10252
90159-40155
90159-50217
90159-50219
90159-50237
90159-60175
90159-60500
90179-06264
90179-10112
90189-05130
90189-06065
90189-06177
90460-20004
90460-46003
90464-00395
90464-00517
90467-07130
90467-12009
90467-12056
90469-22001
90480-01277
90480-01565
90950-01028
90959-02002
91611-A0818
91651-G0616
91656-A0616
93385-A6012
96132-30800
96132-41100
96132-41300
96135-41100
Linked diagrams
2211

EL45-BGPDK (1990)

(9009- )EL45
