Toyota Corsa/tercel EL45 RADIATOR GRILLE

EL45-BGPDK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9009-9208)CRS

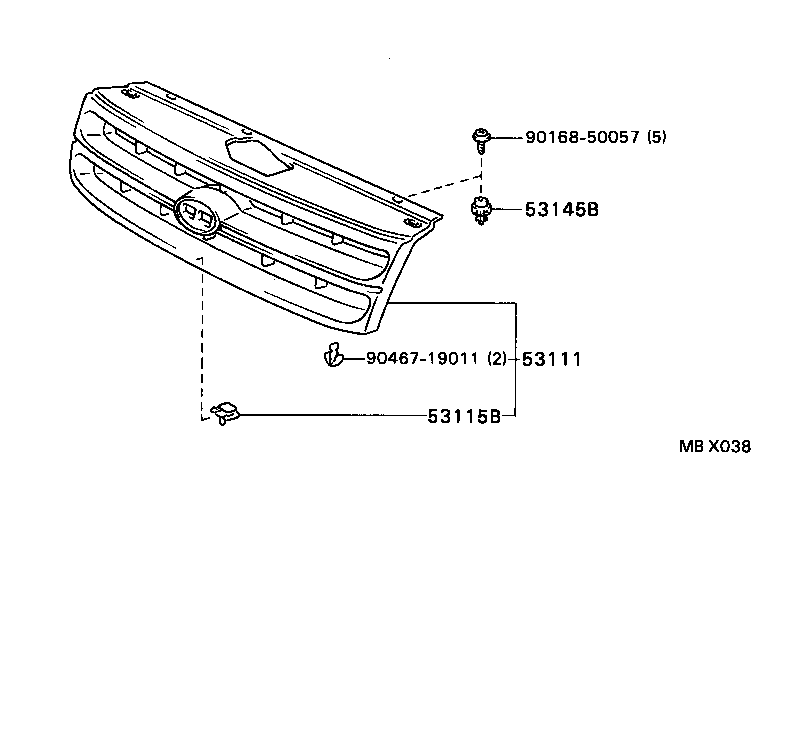

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1629004	EL4#,NL40..CRS..3DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1629007	EL4#,NL40..MOA,SOP,SX,SZ GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1629002	EL4#,NL40..CRS..3DS SUPER RED,3E5	09/1990 - 08/1992	1
53111-1629012	EL4#,NL40..MOA,SOP,SX,SZ PURPLE M M,924	09/1990 - 08/1992	1
53111-1629008	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1629003	EL4#,NL40..CRS..3DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1629009	EL4#,NL40..MOA,SOP,SX,SZ LIGHT YELLOW M M,570	09/1990 - 08/1992	1
53111-16370F0	EL4#,NL40..MOA,SOP,SX,SZ GREENISH YELLOW M.M,569	08/1992 - 09/1994	1
53111-16370D0	EL4#,NL40..CRS..3DS SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16370G1	EL4#,NL40..MOA,SOP,SX,SZ MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-16370K0	EL4#,NL40..CRS..3DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16370A0	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16370B0	EL4#,NL40..CRS..3DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16370G0	EL4#,NL40..MOA,SOP,SX,SZ LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111 - GRILLE, RADIATOR
53111-1629004	EL4#,NL40..CRS..3DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1629007	EL4#,NL40..MOA,SOP,SX,SZ GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1629002	EL4#,NL40..CRS..3DS SUPER RED,3E5	09/1990 - 08/1992	1
53111-1629012	EL4#,NL40..MOA,SOP,SX,SZ PURPLE M M,924	09/1990 - 08/1992	1
53111-1629008	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1629003	EL4#,NL40..CRS..3DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1629009	EL4#,NL40..MOA,SOP,SX,SZ LIGHT YELLOW M M,570	09/1990 - 08/1992	1
53111-16370F0	EL4#,NL40..MOA,SOP,SX,SZ GREENISH YELLOW M.M,569	08/1992 - 09/1994	1
53111-16370D0	EL4#,NL40..CRS..3DS SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16370G1	EL4#,NL40..MOA,SOP,SX,SZ MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-16370K0	EL4#,NL40..CRS..3DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16370A0	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16370B0	EL4#,NL40..CRS..3DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16370G0	EL4#,NL40..MOA,SOP,SX,SZ LT. GREEN ME,6M9	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	EL4#,NL40..3DS	09/1990 - 09/1994	3
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	EL4#,NL40..3DS	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011

(9208- )CRS

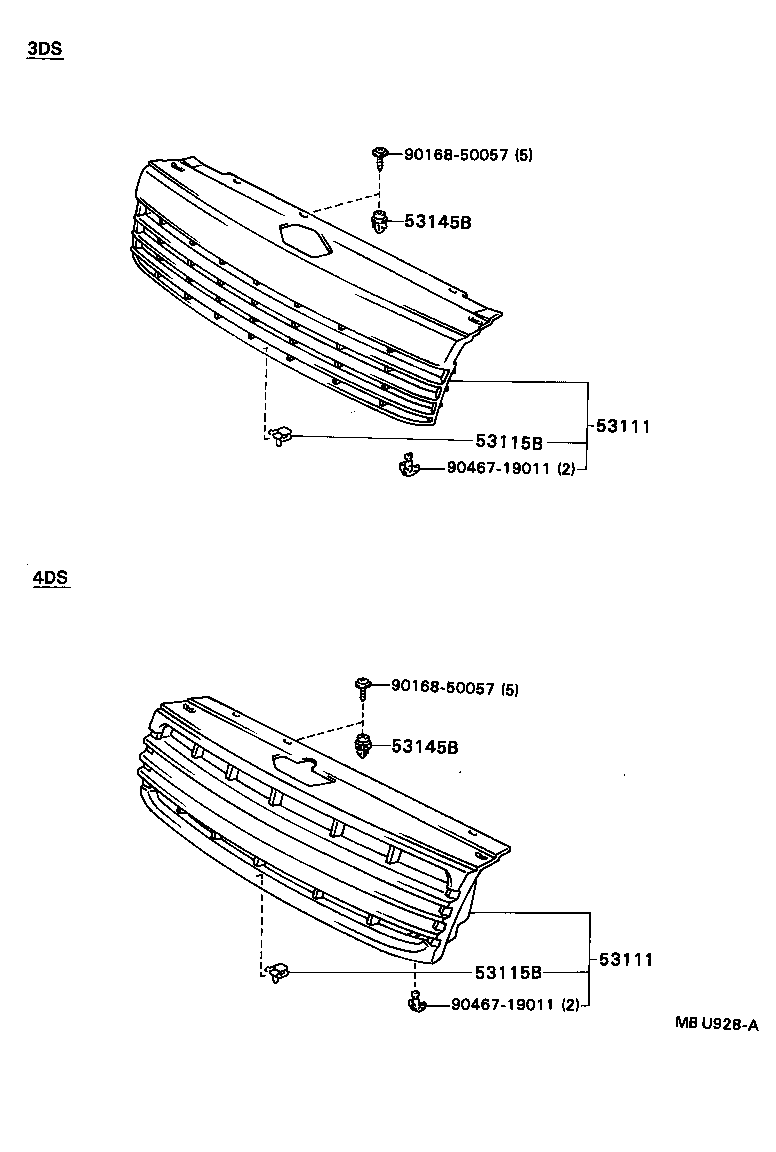

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1629004	EL4#,NL40..CRS..3DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1629007	EL4#,NL40..MOA,SOP,SX,SZ GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1629002	EL4#,NL40..CRS..3DS SUPER RED,3E5	09/1990 - 08/1992	1
53111-1629012	EL4#,NL40..MOA,SOP,SX,SZ PURPLE M M,924	09/1990 - 08/1992	1
53111-1629008	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-1629003	EL4#,NL40..CRS..3DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1629009	EL4#,NL40..MOA,SOP,SX,SZ LIGHT YELLOW M M,570	09/1990 - 08/1992	1
53111-16370F0	EL4#,NL40..MOA,SOP,SX,SZ GREENISH YELLOW M.M,569	08/1992 - 09/1994	1
53111-16370D0	EL4#,NL40..CRS..3DS SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16370G1	EL4#,NL40..MOA,SOP,SX,SZ MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-16370K0	EL4#,NL40..CRS..3DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16370A0	EL4#,NL40..CRS..3DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16370B0	EL4#,NL40..CRS..3DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16370G0	EL4#,NL40..MOA,SOP,SX,SZ LT. GREEN ME,6M9	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	EL4#,NL40..3DS	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011

EL45-BGPDK (1990)

(9009-9208)CRS

(9208- )CRS
