EL45-BGPDK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )4FC

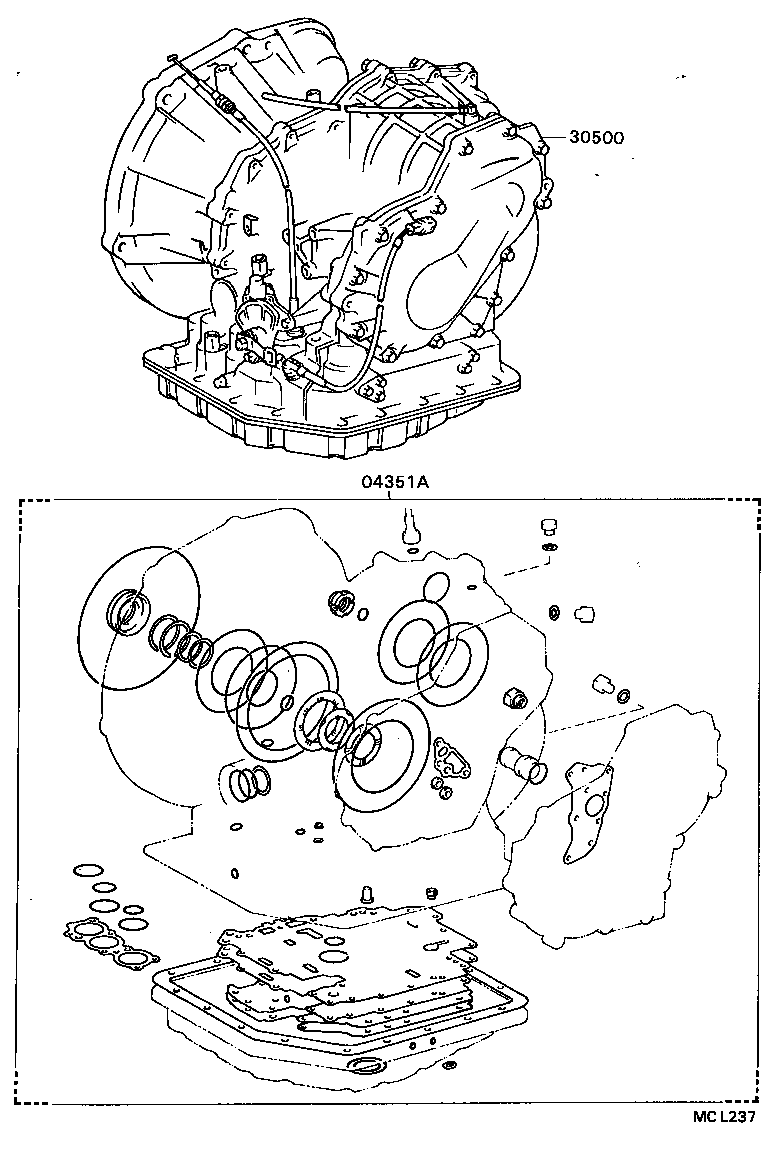

Click highlighted areas on diagram

A242L,A244L,A244E,A244F

diagram 04351A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-10040

EL43,45,NL40..4FC..(DSL,EFI)

 1
04351-10040

EL43,45,NL40..4FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-16310

EL45..4FC

 1
30500-16430

EL45..4FC

 1
30500-16311

EL45..4FC

 1
