EL45-BEPXK (1990)
Toyota Corsa/Tercel

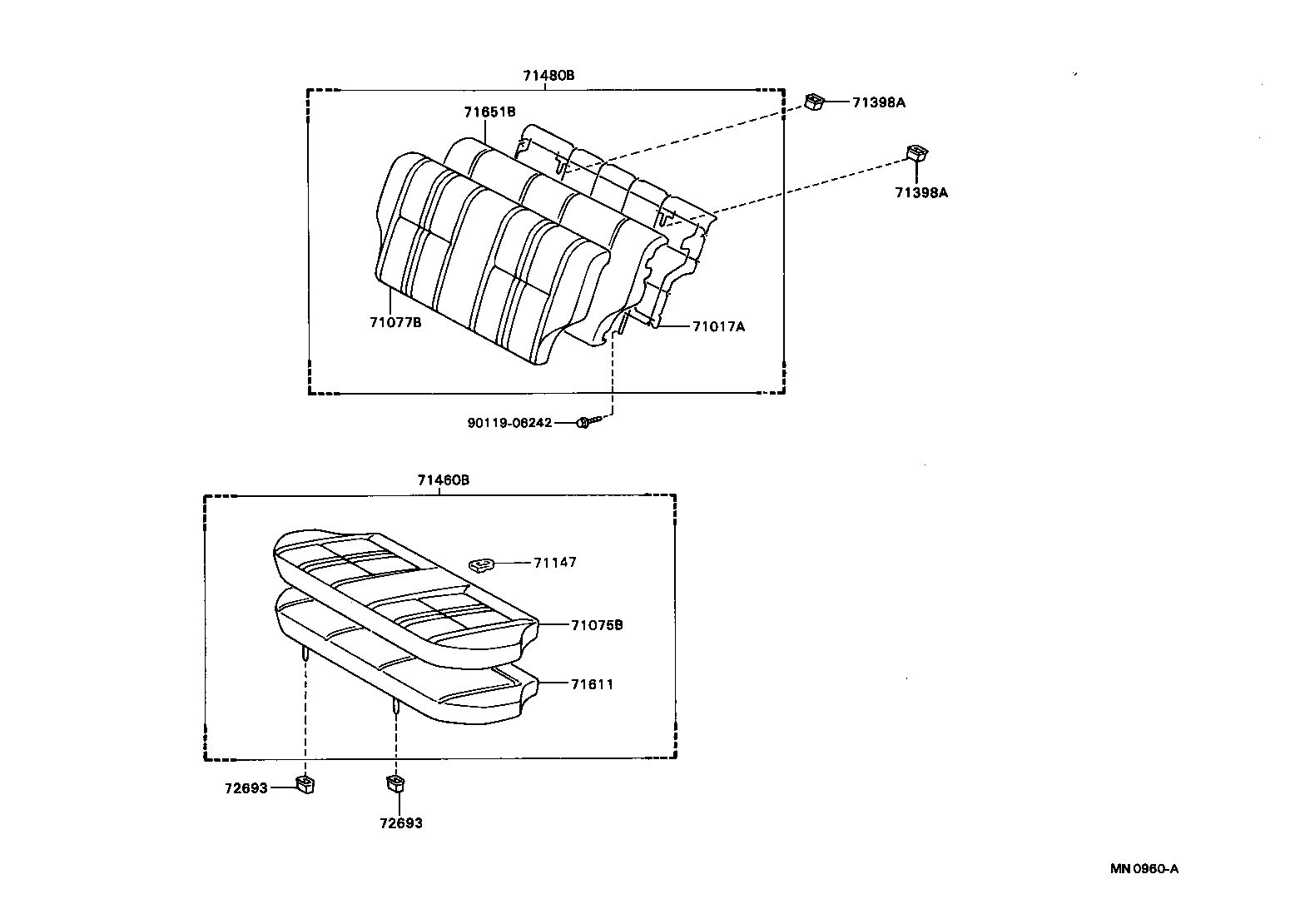

(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16160 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1663004 |
EL45..SX,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71065-1663003 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71065-1663007 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16710C0 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71065-16710G0 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16710J0 |
EL45..SX,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71065-16711G0 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16711J0 |
EL45..SX,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71065-16711C0 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-16020 |
EL4#,NL40 |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
2 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-32010 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1667007 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-1667003 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-1667004 |
EL45..SX,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71560-16760G0 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-16760J0 |
EL45..SX,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71560-16760C0 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-16761C0 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-16761G0 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-16761J0 |
EL45..SX,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-16050 |
EL45 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16290 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL45 |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL45 |
4 | ||
| Common parts | ||||
| 90119-06242 | ||||

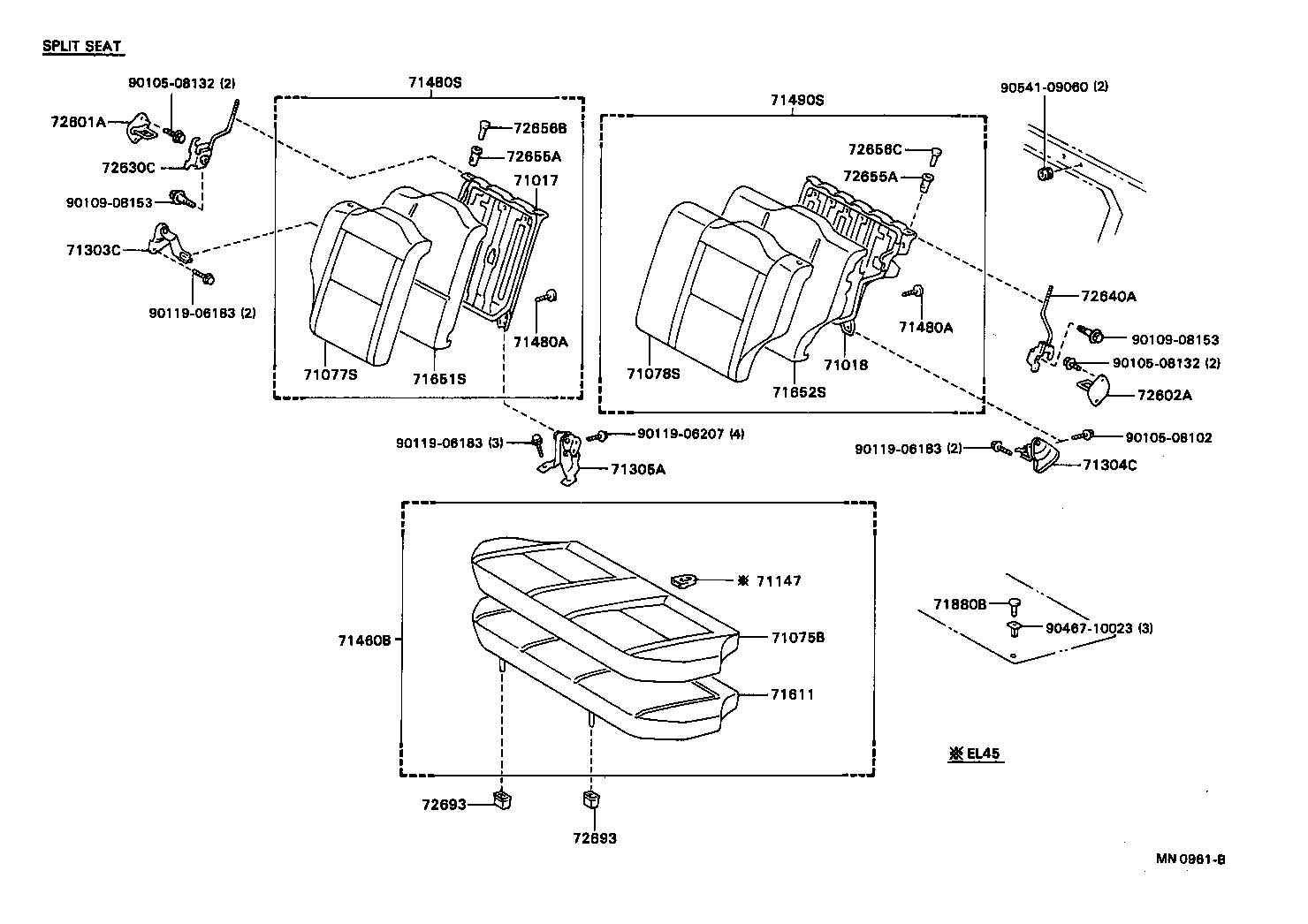

(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16150 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71017-16150 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16100 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71018-16100 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1663004 |
EL45..SX,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71065-1663003 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71065-1663007 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16710C0 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71065-16710G0 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16710J0 |
EL45..SX,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71065-16711G0 |
EL45..SX,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71065-16711J0 |
EL45..SX,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71065-16711C0 |
EL45..SX,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1G44004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71077-1G300G1 |
EL43,45,NL40..VITX,VX SPRUCE,TRIM6# |
1 | ||
| 71077-1G44003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71077-1G301C1 |
EL43,45,NL40..VITX,VX GRAY,GRAY,TRIM2# |
1 | ||
| 71077-1G301G1 |
EL43,45,NL40..VITX,VX SPRUCE,TRIM6# |
1 | ||
| 71077-1G300C1 |
EL43,45,NL40..VITX,VX GRAY,TRIM2# |
1 | ||
| 71077-1G44006 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71077-1G301J1 |
EL43,45,NL40..VITX,VX EISEN BLUE,TRIM8# |
1 | ||
| 71077-1G300J1 |
EL43,45,NL40..VITX,VX EISEN BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1689004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71078-1689007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71078-1689003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71078-16870G1 |
EL43,45,NL40..VITX,VX SPRUCE,TRIM6# |
1 | ||
| 71078-16870J1 |
EL43,45,NL40..VITX,VX EISEN BLUE,TRIM8# |
1 | ||
| 71078-16870C1 |
EL43,45,NL40..VITX,VX GRAY,TRIM2# |
1 | ||
| 71078-16871C1 |
EL43,45,NL40..VITX,VX GRAY,GRAY,TRIM2# |
1 | ||
| 71078-16871J1 |
EL43,45,NL40..VITX,VX EISEN BLUE,TRIM8# |
1 | ||
| 71078-16871G1 |
EL43,45,NL40..VITX,VX SPRUCE,TRIM6# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-16020 |
EL4#,NL40 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-16050 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71303-16050 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-16010 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71304-16010 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16060 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71305-16060 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1667007 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-1667003 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-1667004 |
EL45..SX,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71560-16760G0 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-16760J0 |
EL45..SX,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71560-16760C0 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-16761C0 |
EL45..SX,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71560-16761G0 |
EL45..SX,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71560-16761J0 |
EL45..SX,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-0603701 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2#,6#,8# |
6 | ||
| 90467-07049C0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
6 | ||
| 90467-07049G0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
6 | ||
| 90467-07049J1 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
6 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-0603701 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2#,6#,8# |
6 | ||
| 90467-07049C0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
6 | ||
| 90467-07049G0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
6 | ||
| 90467-07049J1 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
6 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1G57004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71480-1G57003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71480-1G57007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71480-1G710J1 |
EL43,45,NL40..VITX,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71480-1G710G1 |
EL43,45,NL40..VITX,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71480-1G710C1 |
EL43,45,NL40..VITX,VX ***,GRAY,TRIM2# |
1 | ||
| 71480-1G711G1 |
EL43,45,NL40..VITX,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71480-1G711C1 |
EL43,45,NL40..VITX,VX ***,GRAY,TRIM2# |
1 | ||
| 71480-1G711J1 |
EL43,45,NL40..VITX,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1G06003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71490-1G06007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71490-1G080J1 |
EL43,45,NL40..VITX,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71490-1G06004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71490-1G080C1 |
EL43,45,NL40..VITX,VX ***,GRAY,TRIM2# |
1 | ||
| 71490-1G080G1 |
EL43,45,NL40..VITX,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71490-1G081G1 |
EL43,45,NL40..VITX,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71490-1G081C1 |
EL43,45,NL40..VITX,VX ***,GRAY,TRIM2# |
1 | ||
| 71490-1G081J1 |
EL43,45,NL40..VITX,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-16050 |
EL45 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16300 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71651-16300 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16150 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71652-16150 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71880B - CLIP(FOR REAR SEAT BACK CARPET) | ||||
| 90467-0702633 |
NL40..3DS..JOI;NL40..MOA,VITX,VX;EL41..3DS..(AVE,JOI,MOA,SOP);EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAY,TRIM2#,6#,8# |
3 | ||
| 90467-0702622 |
EL43,45,NL40..4DS..(VITX,VITZ,VX,VZ) BLACK,TRIM2#,6#,8# |
3 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-16070 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72601-16070 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-16070 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72601-16070 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-16100 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72630-16100 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-16080 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72640-16080 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72655A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2005007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72646-20050G0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72646-2005024 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 72646-20050J0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 72646-2005001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72646-20050C0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72655A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2005007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72646-20050G0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72646-2005024 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 72646-20050J0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 72646-2005001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72646-20050C0 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001011 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72656-2001007 |
NL40..3DS..JOI;NL40..MOA,VITX,VX;EL41..3DS..(AVE,JOI,MOA,SOP);EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72656-20010G0 |
NL40..3DS..JOI;NL40..MOA,VITX,VX;EL41..3DS..(AVE,JOI,MOA,SOP);EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72656-20010J0 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 72656-2001051 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 72656-20010C1 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001007 |
NL40..3DS..JOI;NL40..MOA,VITX,VX;EL41..3DS..(AVE,JOI,MOA,SOP);EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72656-2001011 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72656-20010C1 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72656-20010G0 |
NL40..3DS..JOI;NL40..MOA,VITX,VX;EL41..3DS..(AVE,JOI,MOA,SOP);EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72656-2001051 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 72656-20010J0 |
EL41..3DS;NL40..3DS..JOI;NL40..MOA,VITX,VX;EL43,45..JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL45 |
4 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
EL45 |
4 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90109-08153 | ||||
| 90119-06183 | ||||
| 90119-06207 | ||||
| 90467-10023 | ||||
| 90541-09060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
