EL45-AGPSK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )4EFE,5EFE

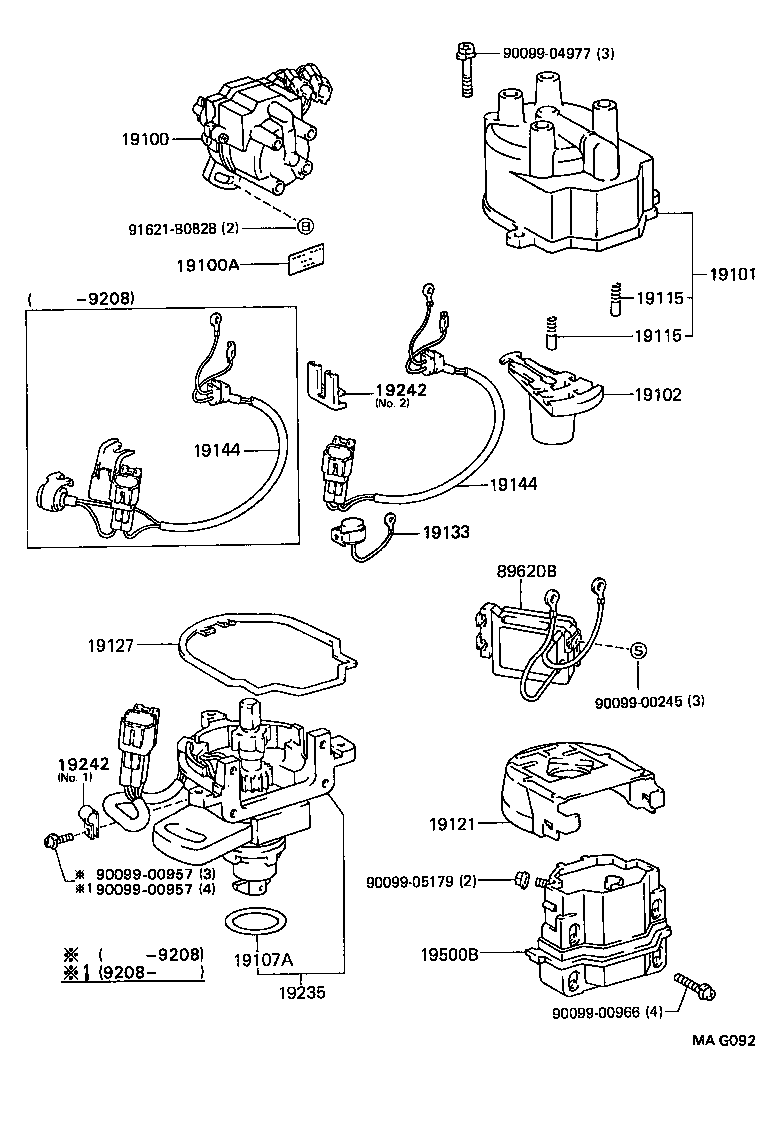

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19144 19235 19242 19242 19500B 89620B 9009900245 9009900957 9009900957 9009900966 9009904977 9009905179 91621B0828
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19020-11340

4EFE,5EFE..EL4#

 1
19020-11270

4EFE,5EFE..EL4#

 1
19100A - TAPE, SEALING
90919-24004

4EFE,5EF#..EL4#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-11060

4EFE,5EFE..EL4#

 1
19101-11240

4EFE,5EFE..EL4#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

4EFE,5EFE..EL4#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14088

4EFE,5EF#..EL4#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4EFE,5EFE..EL4#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4EFE,5EFE..EL4#

 2
19121 - COVER, DUST PROOF
19121-11080

4EFE,5EFE..EL4#

 1
19127 - PACKING, DUST PROOF
19127-15120

4EFE,5EFE..EL4#

 1
19133 - CONDENSER, DISTRIBUTOR
19133-16240

4EFE,5EFE..EL4#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11350

4EFE,5EFE..EL4#

 1
19144-11240

4EFE,5EFE..EL4#

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-11350

4EFE,5EFE..EL4#

 1
19144-11240

4EFE,5EFE..EL4#

 1
19235 - HOUSING, DISTRIBUTOR
19235-11240

4EFE,5EFE..EL4#

 1
19235-11340

4EFE,5EFE..EL4#

 1
19242 - CLAMP, CORD
19242-11350

4EFE,5EFE..EL4#

NO.2

 1
19242-11190

4EFE,5EFE..EL4#

 1
19242-11190

4EFE,5EFE..EL4#

NO.1

 1
19242 - CLAMP, CORD
19242-11350

4EFE,5EFE..EL4#

NO.2

 1
19242-11190

4EFE,5EFE..EL4#

 1
19242-11190

4EFE,5EFE..EL4#

NO.1

 1
19500B - COIL ASSY, IGNITION
90919-02164

4EFE,5EFE..EL4#

 1
89620B - IGNITER ASSY
89620-12440

EL4#..EFI

NIPPONDENSO

 1
89620-12420

EL4#..EFI

MATSUSHITA

 1
89620-12410

EL4#..EFI

NIPPONDENSO

 1
89620-12420

EL4#..EFI

 1
Common parts
90099-00245
90099-00957
90099-00966
90099-04977
90099-05179
91621-B0828
