Toyota Corsa/tercel EL45 STEERING WHEEL

EL45-AGMDK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 5EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9009-9208)AVE,AXX,SOP ; (9009- )AX,JOI,MOA,TX,VC

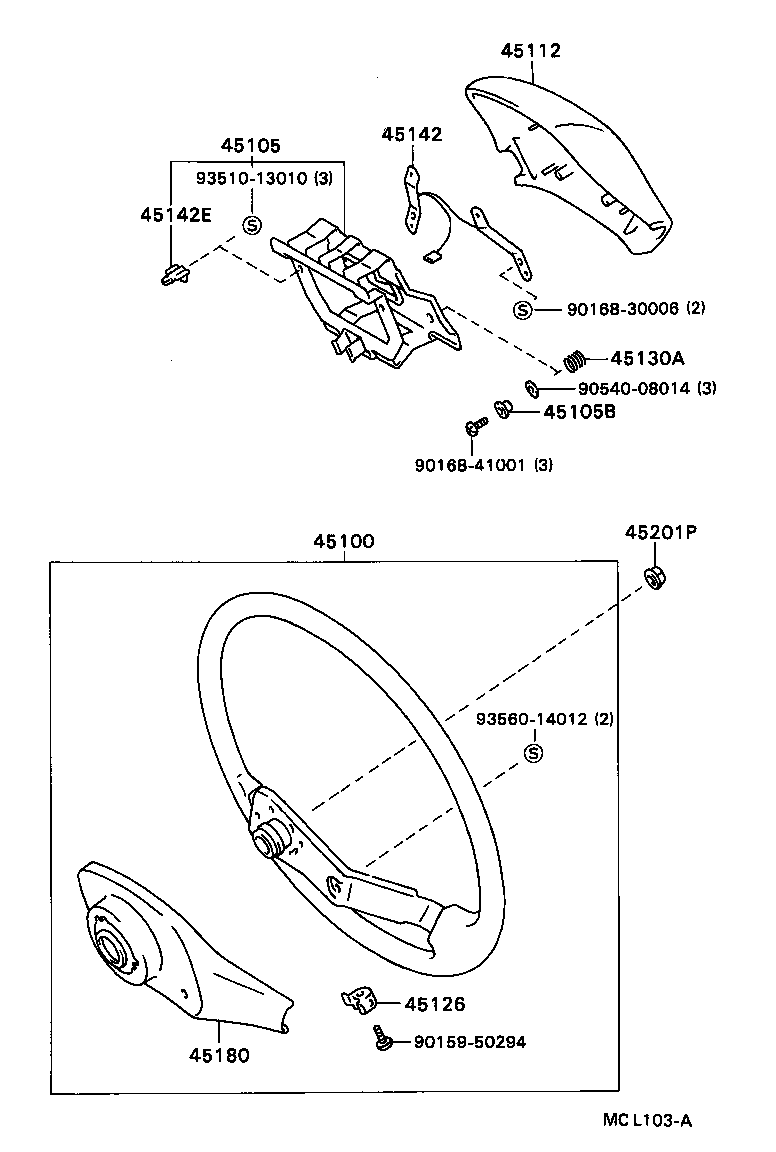

Click highlighted areas on diagram

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1624007	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6#	09/1990 - 08/1992	1
45100-18020G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｱﾘ(*80),SPRUCE,TRIM6#	08/1992 - 09/1993	1
45100-18020C0	EL4#,NL40 ｱﾘ(*80),BLACK,TRIM2#	08/1992 - 09/1993	1
45100-18020J0	EL4#,NL40 ｱﾘ(*80),EISEN BLUE,TRIM8#	08/1992 - 09/1993	1
45100-16240G0	EL41,45,NL40..AX,JOI,MOA SPRUCE,TRIM6#	08/1992 - 09/1994	1
45100-1624004	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
45100-16240W4	EL41,45,NL40..AX,JOI,MOA,TX,VC EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45100-1624022	EL41,45,NL40..AX,JOI,MOA,TX,VC BLACK,TRIM2#	08/1992 - 09/1994	1
45100-1624001	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2#	09/1990 - 08/1992	1
45100-18021J0	EL4#,NL40 ｱﾘ(*80),EISEN BLUE,TRIM8#	09/1993 - 09/1994	1
45100-18021G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｱﾘ(*80),SPRUCE,TRIM6#	09/1993 - 09/1994	1
45100-18021C0	EL4#,NL40 ｱﾘ(*80),BLACK,TRIM2#	09/1993 - 09/1994	1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-16110	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	1
45105-16110	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	1
45105B - SPACER(FOR HORN BUTTON CONTACT PLATE)
90561-04010	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	3
90561-04010	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	3
45112 - PAD, STEERING WHEEL
45112-1619004	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
45112-16190G0	EL41,45,NL40..AX,JOI,MOA SPRUCE,TRIM6#	08/1992 - 09/1994	1
45112-1619007	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6#	09/1990 - 08/1992	1
45112-16190C0	EL41,45,NL40..AX,JOI,MOA,TX,VC BLACK,TRIM2#	08/1992 - 09/1994	1
45112-1619001	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2#	09/1990 - 08/1992	1
45112-16190J0	EL41,45,NL40..AX,JOI,MOA,TX,VC EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45126 - PLATE, STEERING WHEEL PAD SET
45126-16040	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	1
45126-16040	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	1
45130A - SPRING, COMPRESSION(FOR HORN BUTTON)
90501-10104	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	4
90501-10104	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	4
45142 - SEAT, HORN BUTTON CONTACT, NO.1
45142-16060	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	1
45142-16060	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	1
45142E - PIECE, HORN CONTACT
45142-12090	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC	09/1990 - 08/1992	3
45142-12090	EL41,45,NL40..AX,JOI,MOA,TX,VC	08/1992 - 09/1994	3
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1611004	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
45180-1611007	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6#	09/1990 - 08/1992	1
45180-16110J0	EL41,45,NL40..AX,JOI,MOA,TX,VC EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45180-1611001	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2#	09/1990 - 08/1992	1
45180-16110G0	EL41,45,NL40..AX,JOI,MOA SPRUCE,TRIM6#	08/1992 - 09/1994	1
45180-16110C0	EL41,45,NL40..AX,JOI,MOA,TX,VC BLACK,TRIM2#	08/1992 - 09/1994	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EL4#,NL40	06/1993 - 09/1994	1
90179-12086	EL4#,NL40	09/1990 - 06/1993	1
Common parts
90159-50294
90168-30006
90168-41001
90540-08014
93510-13010
93560-14012

(9208- )

Click highlighted areas on diagram

ｱﾘ(SRS ｴｱﾊﾞﾂｸｼｽﾃﾑ)

Part #	Description	Period	Qty
45100 - WHEEL ASSY, STEERING
45100-1624001	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC BLACK,TRIM2#	09/1990 - 08/1992	1
45100-1624007	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP SPRUCE,TRIM6#	09/1990 - 08/1992	1
45100-18020G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｱﾘ(*80),SPRUCE,TRIM6#	08/1992 - 09/1993	1
45100-18020C0	EL4#,NL40 ｱﾘ(*80),BLACK,TRIM2#	08/1992 - 09/1993	1
45100-18020J0	EL4#,NL40 ｱﾘ(*80),EISEN BLUE,TRIM8#	08/1992 - 09/1993	1
45100-16240G0	EL41,45,NL40..AX,JOI,MOA SPRUCE,TRIM6#	08/1992 - 09/1994	1
45100-1624004	EL41,45,NL40..AVE,AX,AXX,JOI,MOA,SOP,TX,VC GRAYISH BLUE,TRIM8#	09/1990 - 08/1992	1
45100-16240W4	EL41,45,NL40..AX,JOI,MOA,TX,VC EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45100-1624022	EL41,45,NL40..AX,JOI,MOA,TX,VC BLACK,TRIM2#	08/1992 - 09/1994	1
45100-18021J0	EL4#,NL40 ｱﾘ(*80),EISEN BLUE,TRIM8#	09/1993 - 09/1994	1
45100-18021G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｱﾘ(*80),SPRUCE,TRIM6#	09/1993 - 09/1994	1
45100-18021C0	EL4#,NL40 ｱﾘ(*80),BLACK,TRIM2#	09/1993 - 09/1994	1
45129 - BUTTON, HORN, NO.2
45129-33010C0	EL4#,NL40 BLACK,TRIM2#	08/1992 - 09/1994	1
45129-33010G1	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	08/1992 - 09/1994	1
45129-33010J2	EL4#,NL40 EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45130 - BUTTON ASSY, HORN
45130-10250C0	EL4#,NL40 BLACK	12/1992 - 09/1994	1
45130-1272222	EL4#,NL40 BLACK,TRIM2#	08/1992 - 08/1993	1
45130-12722J1	EL4#,NL40 EISEN BLUE,TRIM8#	08/1992 - 08/1993	1
45130-10250G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE	12/1992 - 09/1994	1
45130-12724J1	EL4#,NL40 EISEN BLUE,TRIM8#	09/1993 - 09/1994	1
45130-1272322	EL4#,NL40 BLACK,TRIM2#	08/1993 - 09/1993	1
45130-10250J0	EL4#,NL40 EISEN BLUE	12/1992 - 09/1994	1
45130-12723G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE GRAY,TRIM6#	08/1993 - 09/1993	1
45130-12724G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	09/1993 - 09/1994	1
45130-1272422	EL4#,NL40 BLACK,TRIM2#	09/1993 - 09/1994	1
45130-12723J1	EL4#,NL40 EISEN BLUE,TRIM8#	08/1993 - 09/1993	1
45130-12722G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	08/1992 - 08/1993	1
45131 - BUTTON, HORN, NO.1
45131-33010J2	EL4#,NL40 EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45131-33010C0	EL4#,NL40 BLACK,TRIM2#	08/1992 - 09/1994	1
45131-33010G1	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	08/1992 - 09/1994	1
45146 - SPRING, HORN BUTTON CONTACT
45146-20230	EL4#,NL40	08/1992 - 09/1994	2
45146 - SPRING, HORN BUTTON CONTACT
45146-20230	EL4#,NL40	08/1992 - 09/1994	2
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-10010C0	EL4#,NL40 BLACK,TRIM2#	08/1992 - 09/1994	1
45186-10010J0	EL4#,NL40 EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45186-10010G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	08/1992 - 09/1994	1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-10010G0	EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6#	08/1992 - 09/1994	1
45187-10010C0	EL4#,NL40 BLACK,TRIM2#	08/1992 - 09/1994	1
45187-10010J0	EL4#,NL40 EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
45201P - NUT, STEERING WHEEL SET
90179-12071	EL4#,NL40	06/1993 - 09/1994	1
90179-12086	EL4#,NL40	09/1990 - 06/1993	1

EL45-AGMDK (1990)

(9009-9208)AVE,AXX,SOP ; (9009- )AX,JOI,MOA,TX,VC

(9208- )
