Toyota Corsa/tercel EL45 RADIATOR GRILLE

EL45-AEPXK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9009-9208)TER

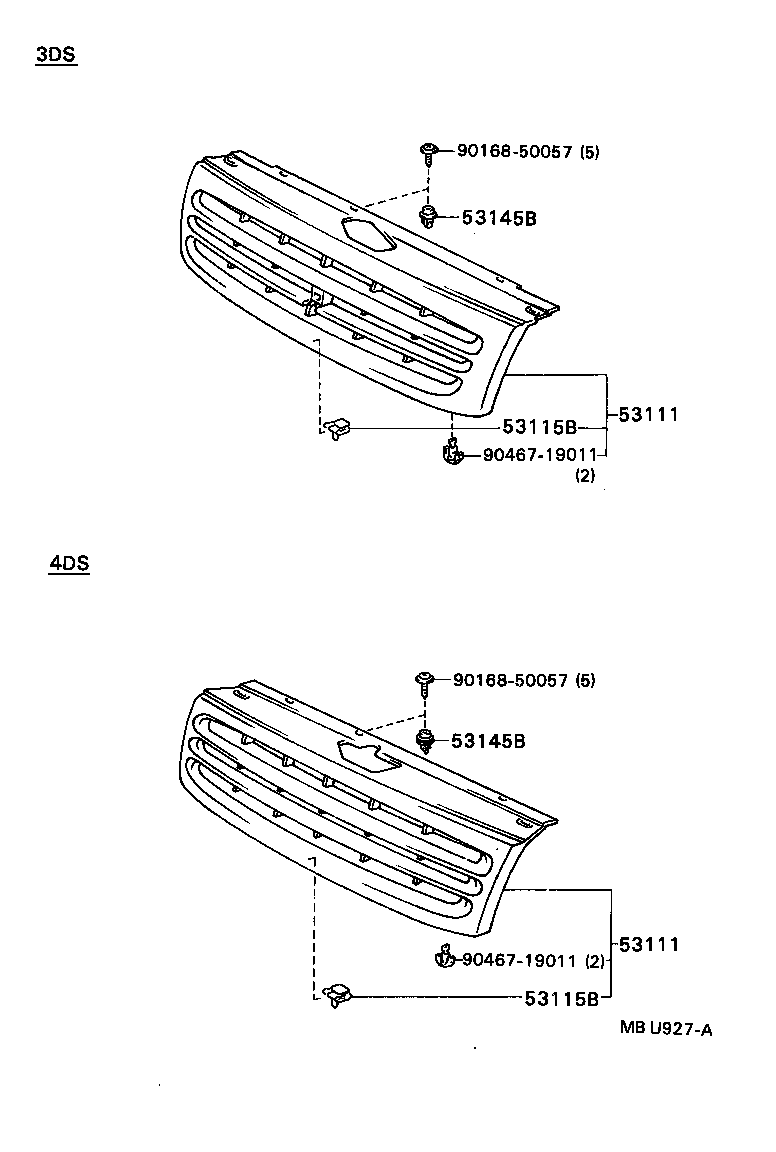

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1630022	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) PURPLE M M,924	09/1990 - 08/1992	1
53111-1630013	EL4#,NL40..TER..4DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1630007	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630012	EL4#,NL40..TER..4DS RED MICA,3H4	09/1990 - 08/1992	1
53111-1630008	EL4#,NL40..TER..4DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-16330B1	EL4#,NL40..TER..4DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16330K0	EL4#,NL40..TER..4DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16330G1	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-1630004	EL4#,NL40..TER..4DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-16330B0	EL4#,NL40..TER..4DS SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16330A0	EL4#,NL40..TER..4DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16330G0	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111 - GRILLE, RADIATOR
53111-1630022	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) PURPLE M M,924	09/1990 - 08/1992	1
53111-1630013	EL4#,NL40..TER..4DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1630007	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630012	EL4#,NL40..TER..4DS RED MICA,3H4	09/1990 - 08/1992	1
53111-1630008	EL4#,NL40..TER..4DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-16330B1	EL4#,NL40..TER..4DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16330K0	EL4#,NL40..TER..4DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16330G1	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-1630004	EL4#,NL40..TER..4DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-16330B0	EL4#,NL40..TER..4DS SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16330A0	EL4#,NL40..TER..4DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16330G0	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) LT. GREEN ME,6M9	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL4#,NL40..4DS	09/1990 - 09/1994	3
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL4#,NL40..4DS	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011

(9208- )TER

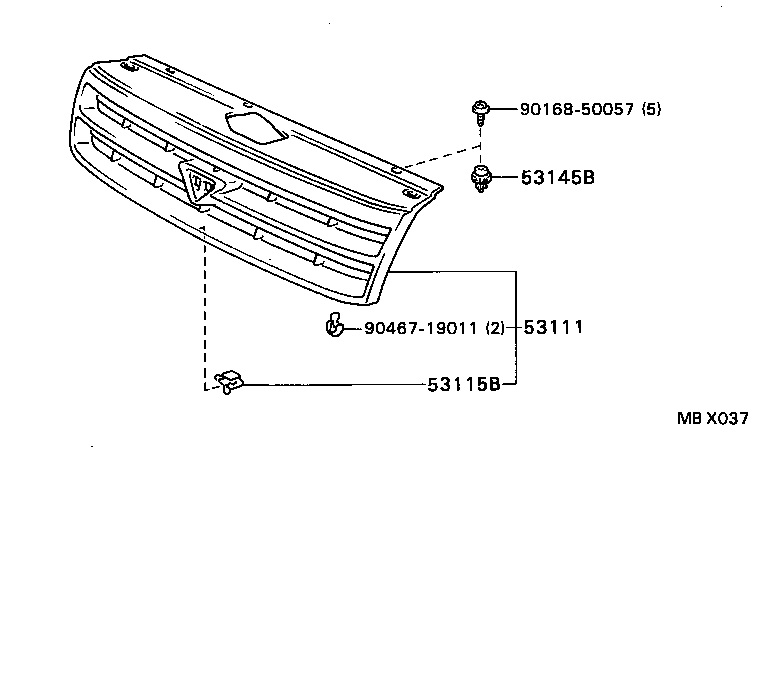

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1630022	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) PURPLE M M,924	09/1990 - 08/1992	1
53111-1630013	EL4#,NL40..TER..4DS BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1630007	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1630012	EL4#,NL40..TER..4DS RED MICA,3H4	09/1990 - 08/1992	1
53111-1630008	EL4#,NL40..TER..4DS SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-16330B1	EL4#,NL40..TER..4DS DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-16330K0	EL4#,NL40..TER..4DS PURPLE M.M,924	08/1992 - 09/1994	1
53111-16330G1	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53111-1630004	EL4#,NL40..TER..4DS DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-16330B0	EL4#,NL40..TER..4DS SUPER SILVER 3 M,176	08/1992 - 09/1994	1
53111-16330A0	EL4#,NL40..TER..4DS SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16330G0	EL4#,NL40..4DS..(AVE,JOI,VE,VX,VZ) LT. GREEN ME,6M9	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16020	EL4#,NL40..4DS	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011
