2211 - FUEL INJECTION SYSTEM

EL43-BGPSK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994

Engine 5EFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

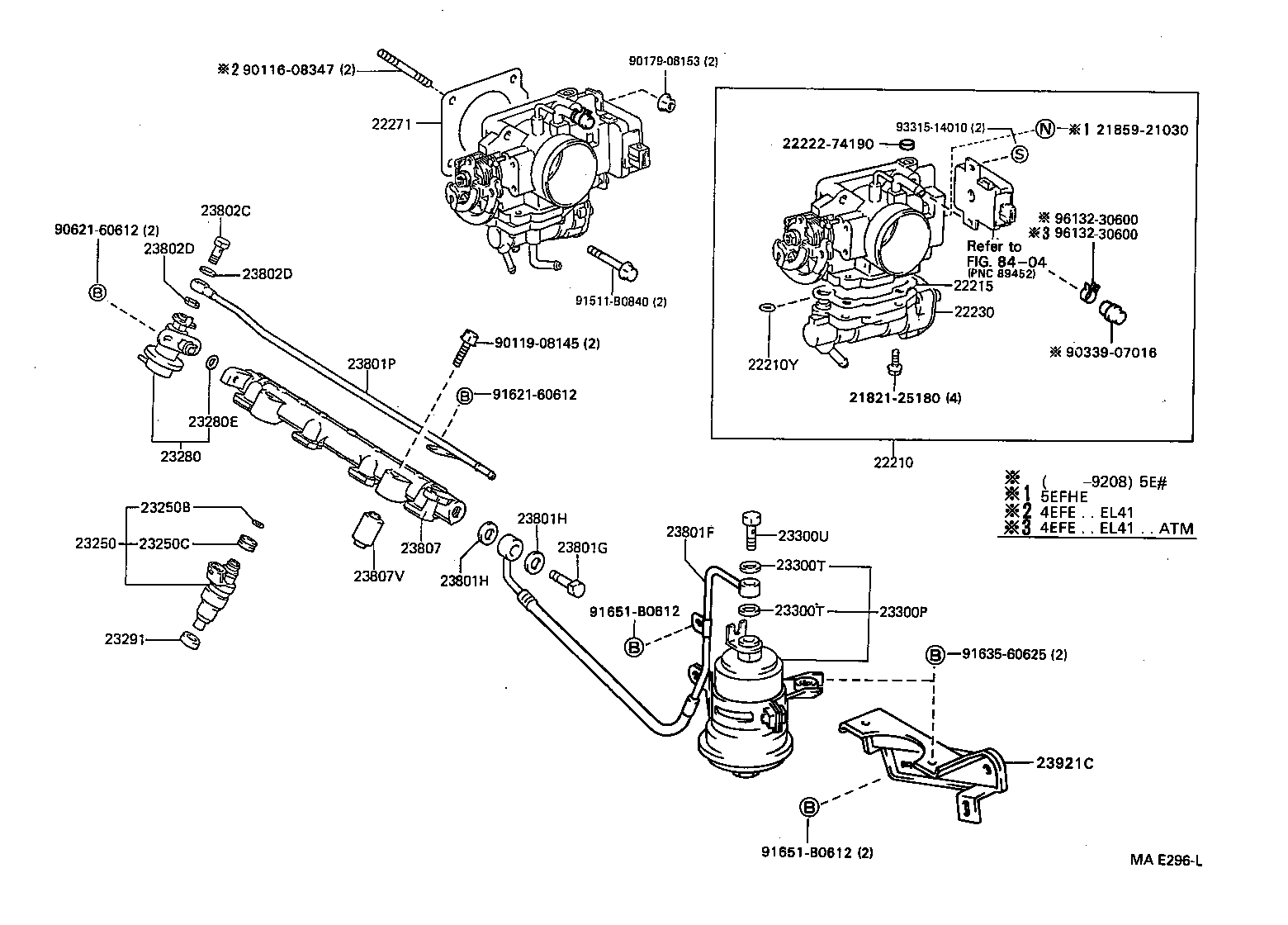

ILLUST NO. 1 OF 2(9009- )4EFE,5EF#

Click highlighted areas on diagram

Part #	Description	Period	Qty
22210 - BODY ASSY, THROTTLE
22210-11370	5EFE..EL43,45..4FC	08/1992 - 09/1994	1
22210-11110	4EFE,5EFE..EL4#..ATM	09/1990 - 08/1992	1
22210Y - RING, O(FOR AIR TUBE)
96711-19009	4EFE,5EFE..EL4#;5EFHE..EL43..5F	09/1990 - 08/1992	1
96711-19009	4EFE,5EFE..EL4#	08/1992 - 09/1994	1
22215 - GASKET, THROTTLE BODY COVER
22215-11110	4EFE,5EF#..EL4#	08/1992 - 09/1994	1
22215-11110	4EFE,5EFE..EL4#;5EFHE..EL43..5F	09/1990 - 08/1992	1
22230 - VALVE ASSY, AUXILIARY AIR
22230-11080	4EFE,5EFE..EL4#..ATM	09/1990 - 09/1994	1
22271 - GASKET, THROTTLE BODY
22271-11030	4EFE,5EF#..EL4#	07/1994 - 09/1994	1
22271-11020	4EFE,5EF#..EL4#	09/1990 - 07/1994	1
23250 - INJECTOR ASSY, FUEL
23209-11050	4EFE,5EFE..EL4#	09/1990 - 09/1994	4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001	4EFE,5EF#..EL4#	09/1990 - 09/1994	4
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005	4EFE,5EF#..EL4#	09/1990 - 09/1994	4
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-11040	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07001	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010	4EFE,5EF#..EL4#	09/1990 - 09/1994	4
23300P - FILTER, FUEL(FOR EFI)
23300-19276	4EFE,5EF#..EL4#	05/1994 - 09/1994	1
23300-19275	4EFE,5EF#..EL4#	09/1990 - 05/1994	1
23300T - GASKET(FOR FUEL FILTER)
90430-12026	4EFE,5EF#..EL4#	12/1992 - 09/1994	2
90430-12005	4EFE,5EF#..EL4#	09/1990 - 12/1992	2
23300T - GASKET(FOR FUEL FILTER)
90430-12026	4EFE,5EF#..EL4#	12/1992 - 09/1994	2
90430-12005	4EFE,5EF#..EL4#	09/1990 - 12/1992	2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23801F - HOSE, FUEL, NO.1
23271-11070	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23801G - BOLT, UNION(FOR FUEL PIPE)
90401-12029	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23801H - GASKET(FOR FUEL PIPE)
90430-12005	4EFE,5EF#..EL4#	09/1990 - 08/1992	2
90430-12026	4EFE,5EF#..EL4#	08/1992 - 09/1994	2
23801H - GASKET(FOR FUEL PIPE)
90430-12005	4EFE,5EF#..EL4#	09/1990 - 08/1992	2
90430-12026	4EFE,5EF#..EL4#	08/1992 - 09/1994	2
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-11050	4EFE,5EFE..EL4#	09/1990 - 08/1993	1
23801-11080	4EFE,5EFE..EL4#	08/1993 - 09/1994	1
23802C - BOLT, UNION(FOR FUEL PIPE NO.2)
90401-08010	4EFE,5EF#..EL4#	09/1990 - 05/1993	1
90401-08004	4EFE,5EF#..EL4#	05/1993 - 09/1994	1
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	4EFE,5EF#..EL4#	05/1993 - 09/1994	2
90430-08012	4EFE,5EF#..EL4#	08/1992 - 05/1993	2
90430-08005	4EFE,5EF#..EL4#	09/1990 - 08/1992	2
23802D - GASKET(FOR FUEL PIPE NO.2)
90430-08014	4EFE,5EF#..EL4#	05/1993 - 09/1994	2
90430-08012	4EFE,5EF#..EL4#	08/1992 - 05/1993	2
90430-08005	4EFE,5EF#..EL4#	09/1990 - 08/1992	2
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-11030	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23890-11010	4EFE,5EF#..EL4#	09/1990 - 09/1994	2
23921C - BRACKET, FUEL FILTER
23264-11060	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
Common parts
21821-25180
21859-21030
22222-74190
90116-08347
90119-08145
90179-08153
90339-07016
90621-60612
91511-B0840
91621-60612
91635-60625
91651-B0612
93315-14010
96132-30600
Linked diagrams
8404

ILLUST NO. 2 OF 2(9009- )4EFE,5EF#..EL41,43

Click highlighted areas on diagram

Part #	Description	Period	Qty
23204 - TUBE SUB-ASSY, FUEL PUMP RETURN
23204-11140	4EFE,5EF#..EL41,43	09/1990 - 09/1994	1
23206A - BRACKET, FUEL PUMP
23206-11170	4EFE,5EF#..EL41,43..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/1992 - 09/1994	1
23206-11160	4EFE,5EF#..EL41,43..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	08/1992 - 09/1994	1
23206-11170	4EFE,5EF#..EL41,43..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	09/1990 - 08/1992	1
23206-11160	4EFE,5EF#..EL41,43..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 08/1992	1
23206B - GASKET, FUEL PUMP BRACKET
77169-16030	4EFE,5EF#..EL41,43	09/1990 - 09/1994	1
23217A - FILTER, FUEL PUMP
23217-11020	4EFE,5EF#..EL4#	09/1990 - 08/1992	1
23217-74030	4EFE,5EF#..EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	08/1992 - 09/1994	1
23220P - PUMP ASSY, FUEL
23221-46010	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23233 - HOSE, FUEL PUMP
23091-11050	4EFE,5EF#..EL41,43 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	09/1990 - 08/1992	1
23091-11050	4EFE,5EF#..EL41,43..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆｼﾖｳ	08/1992 - 12/1992	1
23091-11040	4EFE,5EF#..EL41,43	09/1990 - 09/1994	1
23239 - HOSE
23239-63010	4EFE,5EF#..EL41,43	09/1990 - 02/1994	1
23239-11010	4EFE,5EF#..EL41,43	02/1994 - 09/1994	1
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74610	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
Common parts
77189-18010
77249-10070
90159-50219
90467-12056
90467-12067
90467-13054
93319-13006
93319-14008
93385-A6012
95334-06010
Linked diagrams
