Toyota Corsa/tercel EL43 THROTTLE LINK & VALVE LEVER (ATM)

Part #	Description	Period	Qty
35501 - ROD SUB-ASSY, PARKING LOCK
35501-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-20040	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011	EL4#,NL40..ATM	09/1990 - 09/1994	1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002	EL4#,NL40..ATM	09/1990 - 09/1994	1
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20006	EL4#,NL40..ATM	09/1990 - 09/1994	1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-11001	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)
90201-12028	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35556 - SHAFT, PARKING LOCK PAWL
35556-12020	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35557 - PAWL, PARKING LOCK
35557-12020	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21003	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35558 - CLAMP, PAWL SHAFT
35558-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35561 - SHAFT, MANUAL VALVE LEVER
35561-12020	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-16060	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35593 - SLEEVE, CAM GUIDE
35593-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35596 - PLATE, PAWL STOPPER
35596-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068	EL43,45,NL40..4FC *8−1.25PX35−30	09/1990 - 09/1994	1
90105-08070	EL43,45,NL40..4FC *8−1.25PX17−13.5	09/1990 - 09/1994	1
35596A - BOLT (FOR PAWL STOPPER PLATE)
90105-08068	EL43,45,NL40..4FC *8−1.25PX35−30	09/1990 - 09/1994	1
90105-08070	EL43,45,NL40..4FC *8−1.25PX17−13.5	09/1990 - 09/1994	1
35597 - SLEEVE, SPRING GUIDE
35597-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
35598 - SLEEVE, PARKING LOCK
35598-12010	EL43,45,NL40..4FC	09/1990 - 09/1994	1
Common parts
91611-60610
94110-50800
94512-00800

EL43-BEPXK (1990)

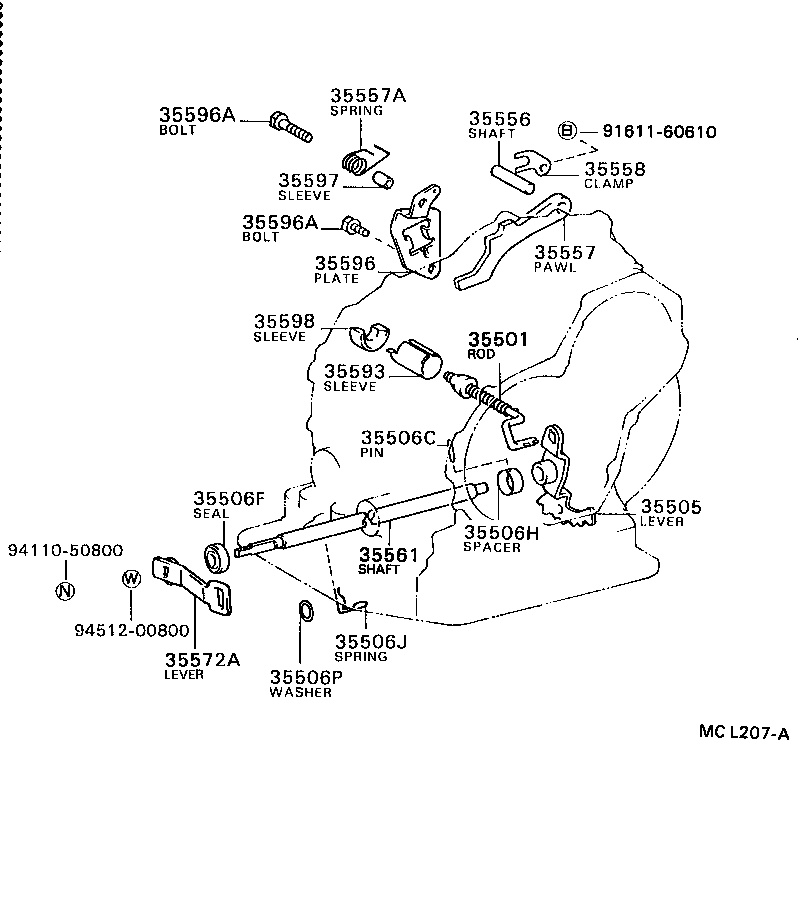

ILLUST NO. 1 OF 2(9009- )4FC

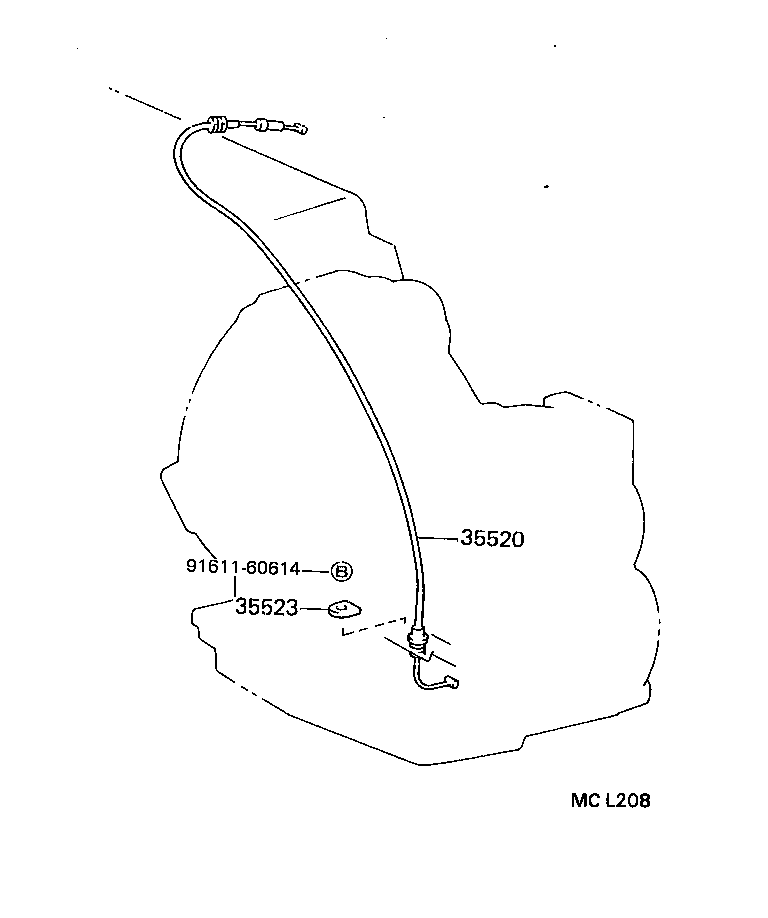

ILLUST NO. 2 OF 2(9009- )ATM

Part Price Details

Part #	Description	Period	Qty
35520 - CABLE ASSY, THROTTLE
35520-18010	EL43..4FC..EFI	09/1990 - 09/1994	1
35523 - CLAMP, THROTTLE CABLE
35523-12080	EL43,45,NL40..4FC	09/1990 - 09/1994	1
Common parts
91611-60614
