EL43-BEMXK (1990)
Toyota Corsa/Tercel
ILLUST NO. 1 OF 6(9009- )EL4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-16800 |
EL43,45..5F..EFI |
1 | ||
| 82121-16690 |
EL43,45..5F..EFI |
1 | ||
| 82121-16801 |
EL43,45..5F..EFI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
EL41,43 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
EL41,43 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30030 |
EL4#,NL40 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
EL4#,NL40 |
1 | ||
| 82823-22060 |
EL43..5F..EFIS;EL4#,NL40..DSL,EFI |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82711-32650 | ||||
| 82715-10100 | ||||
| 82715-10130 | ||||
| 82715-16060 | ||||
| 82715-16180 | ||||
| 82715-16210 | ||||
| 82715-16260 | ||||
| 82715-18050 | ||||
| 82715-18080 | ||||
| 82819-16190 | ||||
| 90119-06595 | ||||
| 90467-06131 | ||||
| 91611-60812 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91656-A0616 | ||||

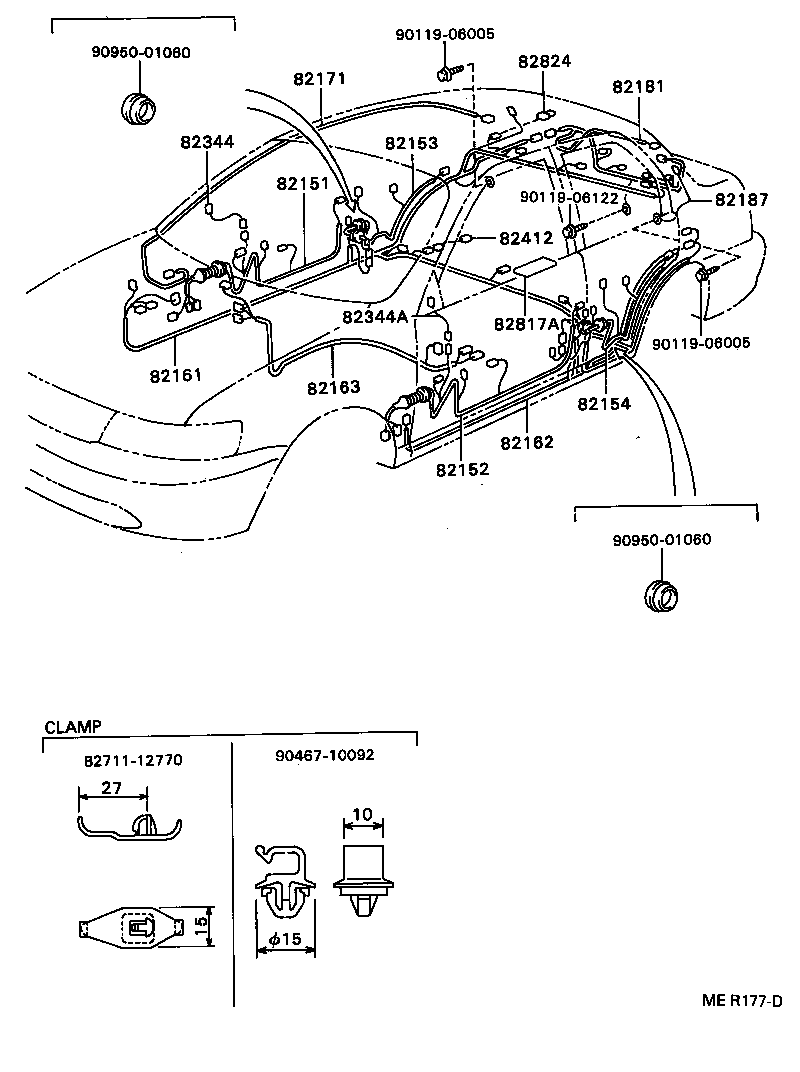

ILLUST NO. 4 OF 6(9009- )4DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16120 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS |
1 | ||
| 82151-16150 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82151-16180 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-16150 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-16151 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82151-16121 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS |
1 | ||
| 82151-16151 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-16181 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-16221 |
EL43..VITX VIT-X ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 82151-16300 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82151-16240 |
EL4#,NL40..AX,JOI,MOA,TX,VC,VE,VIT |
1 | ||
| 82151-16300 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-16180 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-16100 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS |
1 | ||
| 82152-16101 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS |
1 | ||
| 82152-16130 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82152-16131 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82151-16181 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VS ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-16130 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-16201 |
EL43..VITX VIT-X ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 82152-16131 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82151-16240 |
EL4#,NL40..AX,JOI,MOA,TX,VC,VE,VIT |
1 | ||
| 82152-16270 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82152-16270 |
EL43,45,NL40..VITX,VX |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-16040 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82153-16060 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-16040 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82154-16060 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16580 |
EL41,43,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) ｱﾘ(ABS) |
1 | ||
| 82161-16550 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161-16550 |
EL43,NL40..4DS..(VITX,VITZ,VX,VZ) |
1 | ||
| 82161-16830 |
EL41,43,NL40..4DS..(AVE,AXX,VE,VIT) |
1 | ||
| 82161-16780 |
EL43..VE,VIT ｱﾘ(ABS & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161-16780 |
EL43,NL40..4DS..(VITX,VITZ,VX,VZ) ｱﾘ(ABS) |
1 | ||
| 82161-16640 |
EL41,43,NL40..4DS..(AVE,AX,AXX,JOI,TX,VC,VE,VIT) |
1 | ||
| 82161-16660 |
EL41,43,NL40..4DS..(AX,JOI,TX,VC,VE,VIT) ｱﾘ(ABS) |
1 | ||
| 82161-16670 |
EL43..VE,VIT ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161-16670 |
EL43,NL40..4DS..(VITX,VITZ,VX,VZ) |
1 | ||
| 82161-16650 |
EL41,43,NL40..4DS..(AX,JOI,TX,VC,VE,VIT) ｱﾘ(ｾﾝﾀ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ=BULB ﾀｲﾌﾟ)---ﾅｼ(ABS) |
1 | ||
| 82161-16680 |
EL43,NL40..4DS..(VITX,VITZ,VX,VZ) ｱﾘ(ABS) |
1 | ||
| 82161-16680 |
EL43..VE,VIT ｱﾘ(ABS & ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-16280 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82162-16280 |
EL4#,NL40..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-16021 |
EL4#,NL40..AVE,AXX,SOP,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 82163-16020 |
EL4#,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 82163-16020 |
EL4#,NL40..AVE,AXX,SOP,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16140 |
EL4#,NL40..4DS |
1 | ||
| 82171-16150 |
EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82171-16210 |
EL4#..4DS..(AVE,AXX,VE,VIT,VITX,VITZ,VX,VZ) ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-16020 |
EL4#,NL40..4DS..(DSL,EFI) |
1 | ||
| 82181-16060 |
EL43,45,NL40..VE,VIT,VITX,VX ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ LEDﾂｷ) |
1 | ||
| 82181-16060 |
EL43,45,NL40..VITX,VX ｱﾘ(LED ﾂｷ ﾘﾔｽﾎﾟｲﾗ) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16080 |
EL4#,NL40..4DS |
1 | ||
| 82187-16080 |
EL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 82344 - WIRE, MIRROR, RH | ||||
| 82344-16020 |
EL43..VITX VIT-X ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX |
1 | ||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX ｱﾘ(6 ｽﾋﾟ-ｶ) |
1 | ||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VITX,VS,VX |
1 | ||
| 82344-16030 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX |
1 | ||
| 82344A - WIRE, MIRROR, LH | ||||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VE,VIT,VITX,VS,VX |
1 | ||
| 82344-16020 |
EL43..VITX VIT-X ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 82344-16030 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX |
1 | ||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX |
1 | ||
| 82344-16010 |
EL4#,NL40..AVE,AXX,SOP,SX,VITX,VS,VX ｱﾘ(6 ｽﾋﾟ-ｶ) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL4#,NL40 |
1 | ||
| 82817-16410 |
EL41,43,NL40 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20040 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,TX,VC,VE,VIT,VS |
1 | ||
| 82824-20040 |
EL41..3DS..(TX,VC);EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,VE,VIT,VS |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90467-10092 | ||||
| 90950-01060 | ||||
ILLUST NO. 2 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
EL4# 右側 |
1 | ||
| 90980-07109 |
EL4# 左側 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07341 |
EL4# 右側 |
1 | ||
| 90980-07109 |
EL4# 左側 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1G140 |
EL4# |
1 | ||
| 82111-1G150 |
EL41,43 *66 |
1 | ||
| 82111-1G061 |
EL41,43 *66 |
1 | ||
| 82111-1G062 |
EL41,43 *66 |
1 | ||
| 82111-1G060 |
EL41,43 *66 |
1 | ||
| 82111-1G051 |
EL4# |
1 | ||
| 82111-1G050 |
EL4# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-16120 |
EL4#..4F,4FC,5F |
1 | ||
| 82123-16080 |
EL4# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
EL41,43 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08228 |
EL4# 50A,ｵｽ端子,赤 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82715-16090 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0614 | ||||
| 91656-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
ILLUST NO. 3 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1G750 |
EL43,45..SX,VE,VIT,VS |
1 | ||
| 82131-1G770 |
EL43..VE,VIT ｱﾘ(ABS) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) |
1 | ||
| 82131-1G810 |
EL43,45..VITX,VX |
1 | ||
| 82131-1G170 |
EL43..VITX VIT-X ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 82131-1G820 |
EL43,45..SX,VE,VIT,VS ｱﾘ(ｵ-ﾄ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82131-1G830 |
EL43,45..VITX,VX ｱﾘ(ｵ-ﾄ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82131-1G830 |
EL43..VE,VIT ｱﾘ(ABS & ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82131-1S590 |
EL43,45..VITX,VX |
1 | ||
| 82131-1S580 |
EL43,45..SX,VE,VIT,VS |
1 | ||
| 82131-1S590 |
EL43..VE,VIT ｱﾘ(ABS) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82131-1G821 |
EL43,45..SX,VE,VIT,VS ｱﾘ(ｵ-ﾄ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82131-1G831 |
EL43,45..VITX,VX ｱﾘ(ｵ-ﾄ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 82131-1S581 |
EL43,45..SX,VE,VIT,VS |
1 | ||
| 82131-1G831 |
EL43..VE,VIT ｱﾘ(ABS & ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ｵ-ﾄ ｴｱｺﾝ) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ & ｵ-ﾄ ｴｱｺﾝ) |
1 | ||
| 82131-1S591 |
EL43..VE,VIT ｱﾘ(ABS) OR ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82131-1S591 |
EL43,45..VITX,VX |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-16010 |
EL41,43,NL40..MTM |
1 | ||
| 82166-16080 |
EL4#,NL40..MTM |
1 | ||
| 82166-16011 |
EL41,43,NL40..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82711-12740 | ||||
| 82711-16750 | ||||
| 82715-16100 | ||||
| 82715-16120 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90119-06005 | ||||
| 90167-50028 | ||||
| 91656-40616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 6(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
NL40;EL4#..MTM |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
NL40;EL4#..MTM |
1 | ||
| Common parts | ||||
| 82991-20080 | ||||
| 82991-20100 | ||||
