EL43-BEMXK (1990)
Toyota Corsa/Tercel

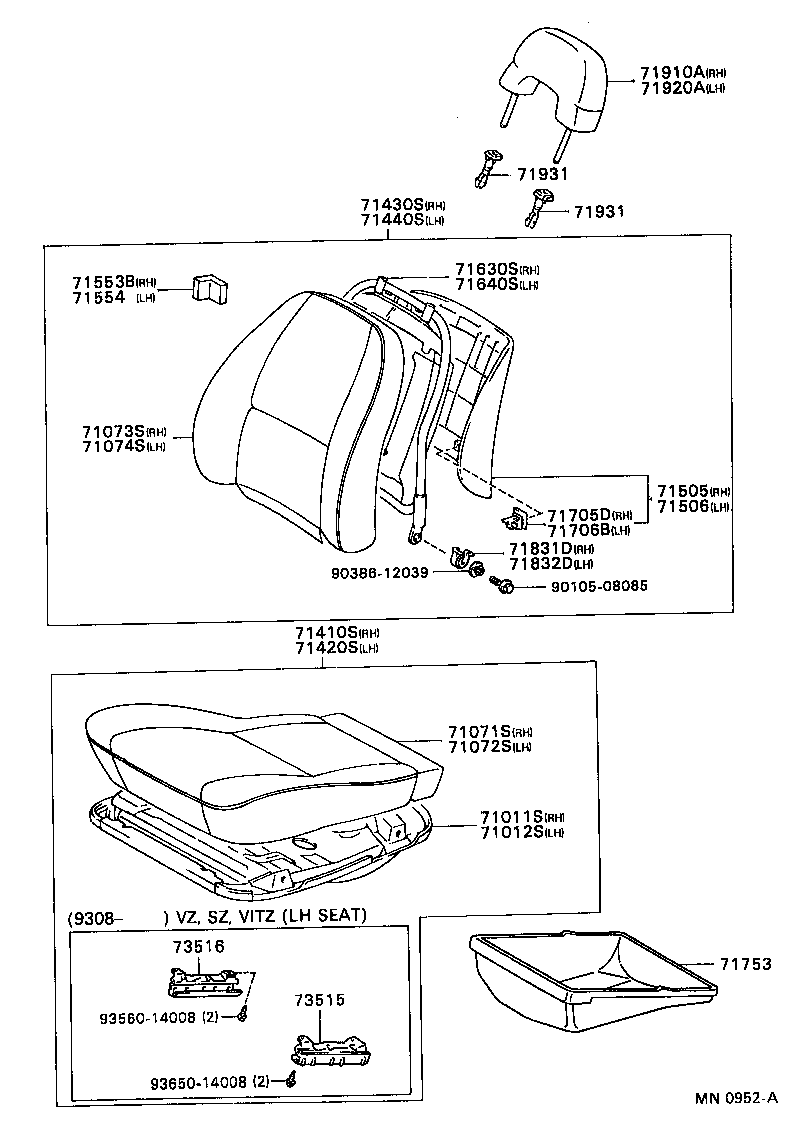

ILLUST NO. 1 OF 2(9009- )AVE,AX,AXX,JOI,MOA,SOP,TX,VC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16090 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16030 |
EL4#,NL40 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-1602003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71518-1602004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71518-1602007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71518-16060J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71518-16060C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71518-16060G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71528-1601004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71528-1601007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71528-1601003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71528-16050C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71528-16050G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71528-16050J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-1602004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71558-1602007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71558-1602003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71558-16050C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71558-16050G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71558-16050J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71568-1601003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71568-1601004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71568-1601007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71568-16040G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71568-16040C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71568-16040J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G04003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71410-1G04004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71410-1G04007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71410-1G120G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71410-1G120C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71410-1G120J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1685003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71420-1685004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71420-1G060G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71420-1685007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71420-1G060C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71420-1G060J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G19003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71430-1G19004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71430-1G19007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71430-1G260C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71430-1G260G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71430-1G260J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G14007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71440-1G14003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71440-1G14004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71440-1G210J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71440-1G210C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71440-1G210G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71705-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71705-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16060 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-16060 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL4#,NL40 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
EL4#,NL40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1635003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-1635007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-16410J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71910-1635004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71910-16410B0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-16410G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-1635003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-1635007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-16410J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71910-16410B0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-16410G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-1635004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007024 |
EL4#,NL40 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-1007001 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-3201001 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070G2 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-1007007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-3201004 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71930-10070W4 |
EL4#,NL40 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007024 |
EL4#,NL40 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-1007001 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-3201001 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070G2 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-1007007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-3201004 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71930-10070W4 |
EL4#,NL40 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 93560-14008 | ||||
| 93650-14008 | ||||

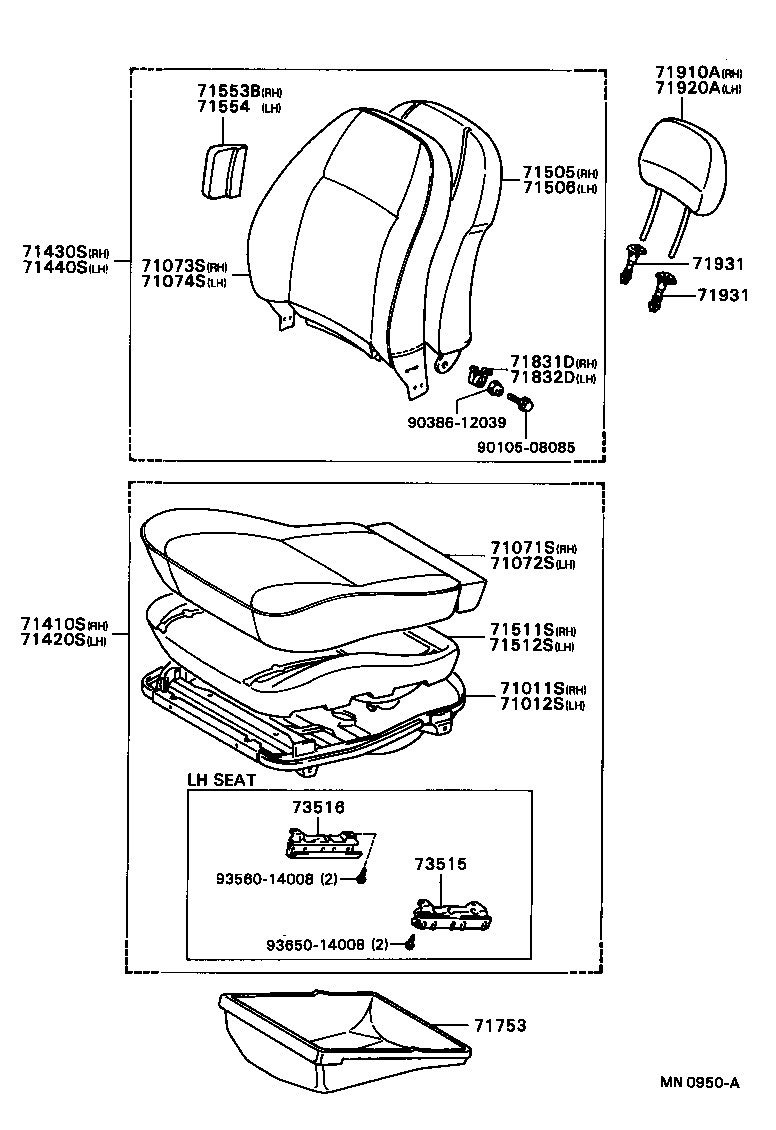

ILLUST NO. 1 OF 2(9009- )SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-16090 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-16030 |
EL4#,NL40 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71518-1602003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71518-1602004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71518-1602007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71518-16060J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71518-16060C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71518-16060G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71528-1601004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71528-1601007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71528-1601003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71528-16050C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71528-16050G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71528-16050J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71558-1602004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71558-1602007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71558-1602003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71558-16050C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71558-16050G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71558-16050J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71568-1601003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71568-1601004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71568-1601007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71568-16040G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71568-16040C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71568-16040J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1G04003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71410-1G04004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71410-1G04007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71410-1G120G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71410-1G120C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71410-1G120J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1685003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71420-1685004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71420-1G060G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71420-1685007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71420-1G060C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71420-1G060J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1G19003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71430-1G19004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71430-1G19007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71430-1G260C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71430-1G260G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71430-1G260J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1G14007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71440-1G14003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71440-1G14004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAYISH BLUE,TRIM8# |
1 | ||
| 71440-1G210J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,EISEN BLUE,TRIM8# |
1 | ||
| 71440-1G210C0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,GRAY,TRIM2# |
1 | ||
| 71440-1G210G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX ***,SPRUCE,TRIM6# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71705-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71705-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71705-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71705-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71705-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-16060 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71553-16060 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-16180 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-16100 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 71705D - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-16010 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
2 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-16010 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
EL4#,NL40 |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
EL4#,NL40 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1635003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-1635007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-16410J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71910-1635004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71910-16410B0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-16410G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-1635003 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-1635007 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-16410J0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX EISEN BLUE,TRIM8# |
1 | ||
| 71910-16410B0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAY,TRIM2# |
1 | ||
| 71910-16410G0 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX SPRUCE,TRIM6# |
1 | ||
| 71910-1635004 |
EL43,45,NL40..SX,VE,VIT,VITX,VS,VX GRAYISH BLUE,TRIM8# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007024 |
EL4#,NL40 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-1007001 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-3201001 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070G2 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-1007007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-3201004 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71930-10070W4 |
EL4#,NL40 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1007024 |
EL4#,NL40 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-1007001 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-3201001 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71930-10070G2 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-1007007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,SPRUCE,TRIM6# |
2 | ||
| 71930-3201004 |
EL45;EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71930-10070W4 |
EL4#,NL40 ﾛｯｸ付,EISEN BLUE,TRIM8# |
2 | ||
| 71930-1007022 |
EL4#,NL40 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90386-12039 | ||||
| 93560-14008 | ||||
| 93650-14008 | ||||

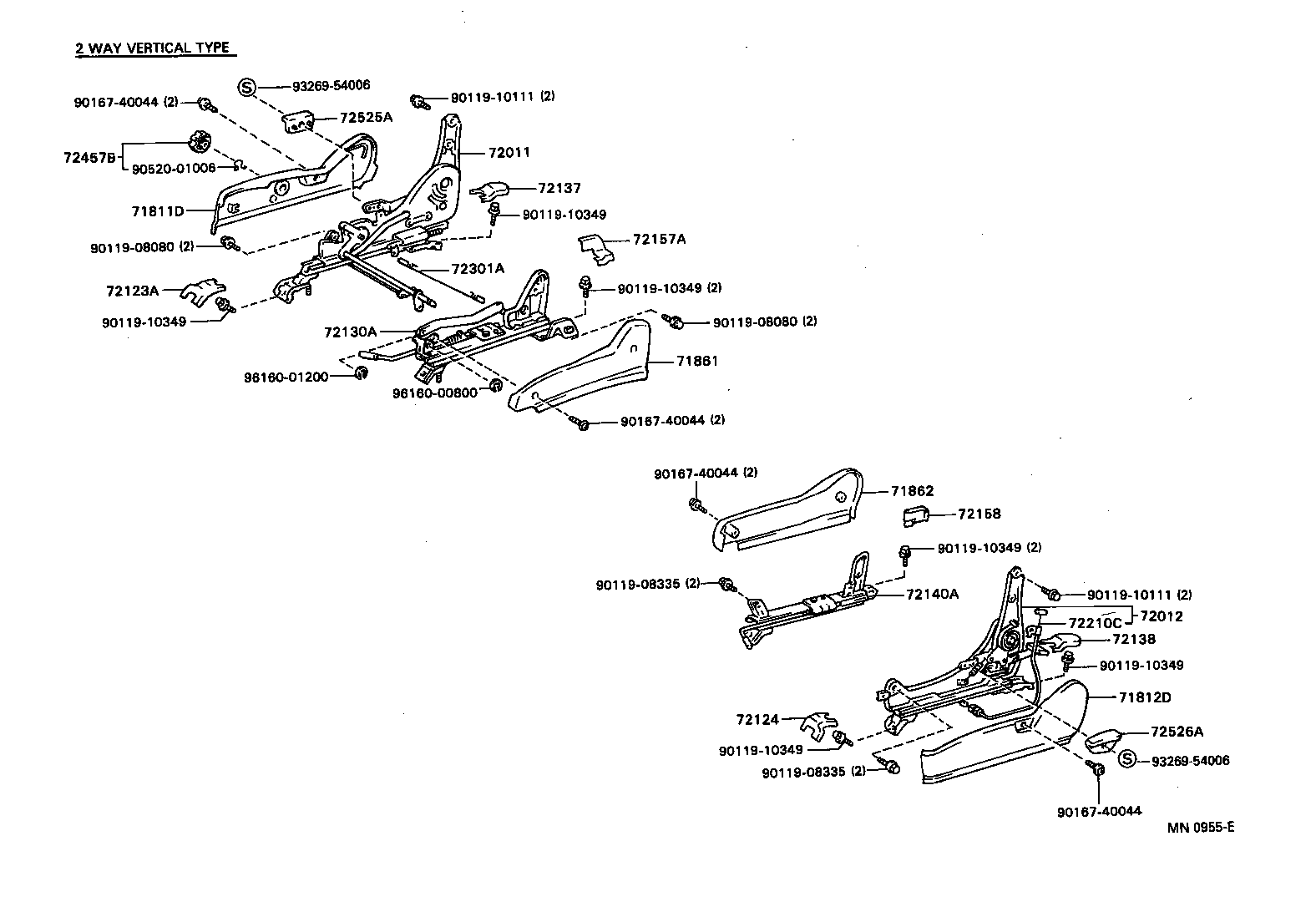

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1615007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71811-1615022 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150W4 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1615007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71811-1615022 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150W4 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1611001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-1611007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-16110G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611004 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 71812-16110W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1611001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-1611007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-16110G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611004 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 71812-16110W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160G0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160C0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71861-1610004 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-1610007 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160J0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71861-1610001 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160G0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160C0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71861-1610004 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-1610007 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160J0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71861-1610001 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1607004 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71862-1607001 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71862-16130C0 |
EL41,43,NL40 BLACK,TRIM2# |
1 | ||
| 71862-16130J0 |
EL41,43,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71862-1607007 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71862-16130G0 |
EL41,43,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1607004 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71862-1607001 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71862-16130C0 |
EL41,43,NL40 BLACK,TRIM2# |
1 | ||
| 71862-16130J0 |
EL41,43,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71862-1607007 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71862-16130G0 |
EL41,43,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16200 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72010-16240 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16200 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72010-16240 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16170 |
EL41..AX,AXX,JOI,MOA,TX,VC;EL45,NL40..AVE,AX,AXX,JOI,MOA,VITX,VX;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72020-16230 |
EL43,45,NL40..4DS;EL41..AX,AXX,TX,VC;EL41..4DS..(AVE,JOI) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16170 |
EL41..AX,AXX,JOI,MOA,TX,VC;EL45,NL40..AVE,AX,AXX,JOI,MOA,VITX,VX;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72020-16230 |
EL43,45,NL40..4DS;EL41..AX,AXX,TX,VC;EL41..4DS..(AVE,JOI) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL4#,NL40 |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL4#,NL40 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL4#,NL40 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL4#,NL40 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16130 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72130-16190 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16130 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72130-16190 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL4#,NL40 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL4#,NL40 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL4#,NL40 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL4#,NL40 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72140-16140 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72140-16140 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL4#,NL40 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL4#,NL40 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL4#,NL40 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL4#,NL40 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-16100 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72301-16140 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72525-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72525-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72526-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72526-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 93269-54006 | ||||
| 96160-00800 | ||||

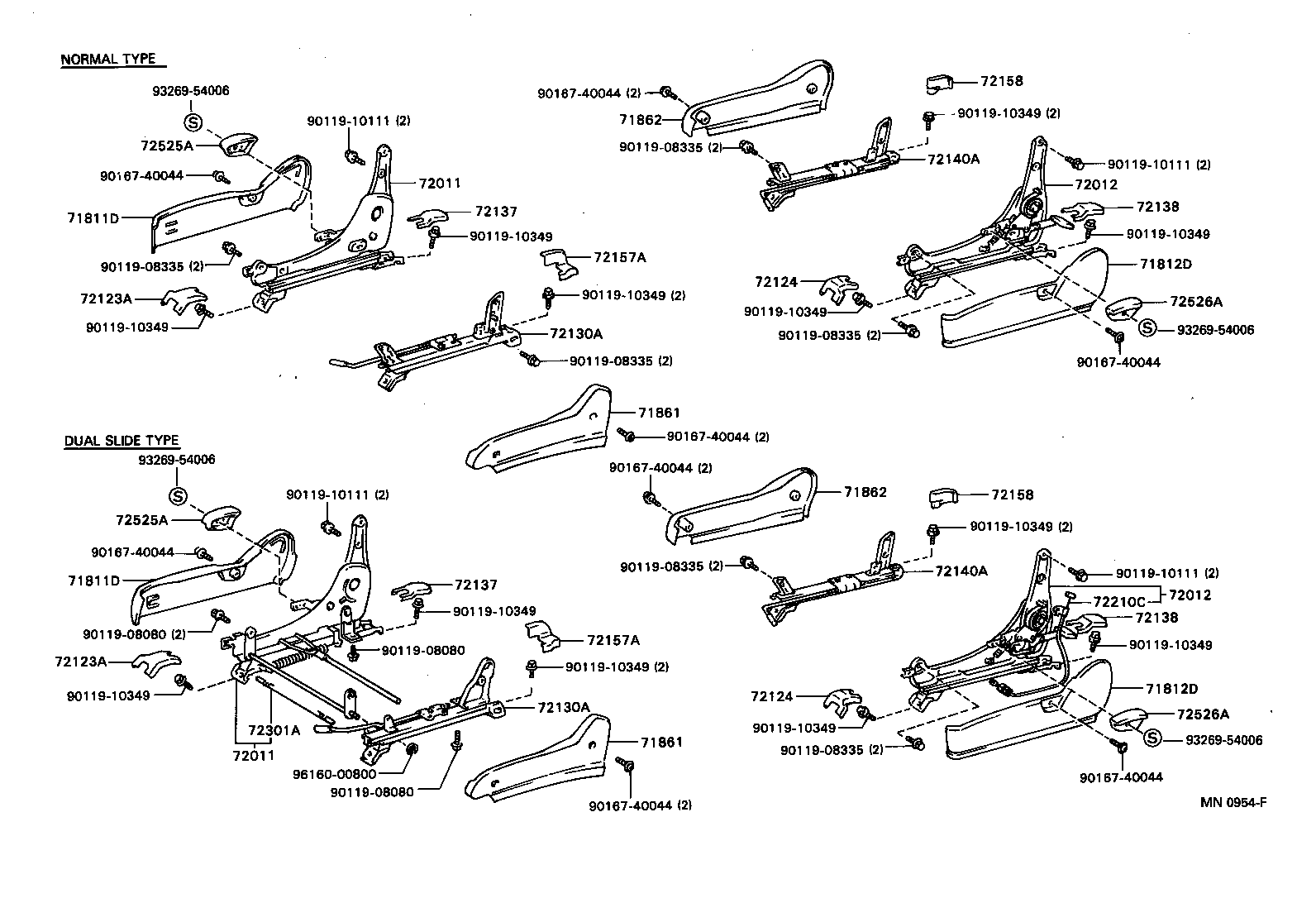

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-1615007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71811-1615004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71811-1615022 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71811-16150W4 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-1611001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-1611007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 71812-16110G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71812-1611004 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 71812-16110W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-16160G0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160C0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71861-1610004 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-1610007 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71861-16160J0 |
EL41,43,NL40..AX,JOI,MOA,SX,SZ,TX,VC,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 71861-1610001 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-1607004 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 71862-1607001 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 71862-16130C0 |
EL41,43,NL40 BLACK,TRIM2# |
1 | ||
| 71862-16130J0 |
EL41,43,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 71862-1607007 |
EL41,43,NL40..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 71862-16130G0 |
EL41,43,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-16200 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72010-16240 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-16170 |
EL41..AX,AXX,JOI,MOA,TX,VC;EL45,NL40..AVE,AX,AXX,JOI,MOA,VITX,VX;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72020-16230 |
EL43,45,NL40..4DS;EL41..AX,AXX,TX,VC;EL41..4DS..(AVE,JOI) |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-16050 |
EL4#,NL40 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-10060 |
EL4#,NL40 |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-16130 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72130-16190 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-16030 |
EL4#,NL40 |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-16030 |
EL4#,NL40 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-16190 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72140-16140 |
NL40;EL41..AX,AXX,JOI,MOA,TX,VC;EL41,43..4DS..(AVE,VE,VIT,VITX,VITZ,VX,VZ) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-16050 |
EL4#,NL40 |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-16050 |
EL4#,NL40 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-16100 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72301-16140 |
EL43,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-1601004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 72457-1601001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72457-16010W4 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 72457-1601007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72457-1601022 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 72457-16010G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72525-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72525-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72525-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-1004007 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-10040W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 72526-10040G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 72526-1004001 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004022 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 72526-1004014 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08335 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 93269-54006 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
