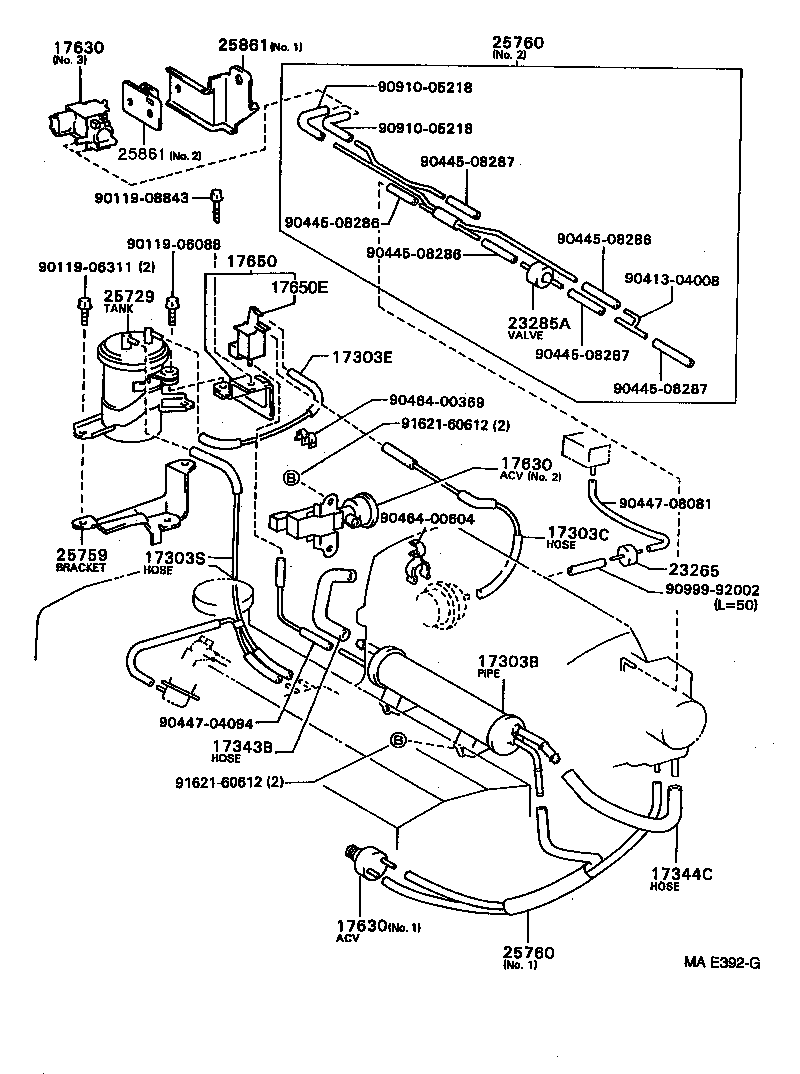

Toyota Corsa/tercel EL43 VACUUM PIPING

Part #	Description	Period	Qty
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-11610	5EFHE..EL43	09/1990 - 09/1994	1
17303C - PIPE SUB-ASSY, AIR, NO.2
17303-11650	5EFHE..EL43	09/1990 - 09/1994	1
17303E - HOSE, NO.1(FOR AIR PIPE)
17303-11660	5EFHE..EL43	09/1990 - 09/1994	1
17303S - PIPE SUB-ASSY, AIR, NO.3
17303-11670	5EFHE..EL43	09/1990 - 09/1994	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-11070	5EFHE..EL43	09/1990 - 09/1994	1
17344C - HOSE, NO.4(FOR IDLE-UP)
17344-11050	5EFHE..EL43	09/1990 - 09/1994	1
17630 - VALVE ASSY, AIR CONTROL
90910-12106	5EF#..EL43,45 NO.3	09/1990 - 05/1991	1
90910-12121	5EF#..EL43,45 NO.3	05/1991 - 08/1992	1
17630-11060	4EFE,5EF#..EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1	09/1990 - 09/1994	1
90910-12121	4EFE,5EF#..EL4# NO.3	08/1992 - 09/1994	1
17630-11041	5EFHE..EL43 NO.2	04/1992 - 09/1994	1
17630-11040	5EFHE..EL43 NO.2	09/1990 - 04/1992	1
17630 - VALVE ASSY, AIR CONTROL
90910-12106	5EF#..EL43,45 NO.3	09/1990 - 05/1991	1
90910-12121	5EF#..EL43,45 NO.3	05/1991 - 08/1992	1
17630-11060	4EFE,5EF#..EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1	09/1990 - 09/1994	1
90910-12121	4EFE,5EF#..EL4# NO.3	08/1992 - 09/1994	1
17630-11041	5EFHE..EL43 NO.2	04/1992 - 09/1994	1
17630-11040	5EFHE..EL43 NO.2	09/1990 - 04/1992	1
17630 - VALVE ASSY, AIR CONTROL
90910-12106	5EF#..EL43,45 NO.3	09/1990 - 05/1991	1
90910-12121	5EF#..EL43,45 NO.3	05/1991 - 08/1992	1
17630-11060	4EFE,5EF#..EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1	09/1990 - 09/1994	1
90910-12121	4EFE,5EF#..EL4# NO.3	08/1992 - 09/1994	1
17630-11041	5EFHE..EL43 NO.2	04/1992 - 09/1994	1
17630-11040	5EFHE..EL43 NO.2	09/1990 - 04/1992	1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-11180	5EFHE..EL43	09/1990 - 09/1994	1
17650E - VALVE, VACUUM SWITCHING
90910-12109	5EFHE..EL43	09/1990 - 09/1994	1
23265 - FILTER, GAS, NO.1
90917-11030	4EFE,5EF#..EL4#	09/1990 - 09/1994	1
23285A - VALVE, CHECK, NO.1
90917-10080	4EFE,5EF#..EL4#	08/1992 - 09/1994	1
90917-10080	5EF#..EL43,45	09/1990 - 08/1992	1
25729 - TANK, VACUUM SURGE W/BRACKET
25729-11010	5EFHE..EL43	09/1990 - 09/1994	1
25759 - BRACKET, VACUUM SURGE TANK
25759-11010	5EFHE..EL43	09/1990 - 09/1994	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-11171	5EFHE..EL43 NO.2	09/1990 - 09/1994	1
25760-11110	5EFHE..EL43 NO.1	09/1990 - 09/1994	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-11171	5EFHE..EL43 NO.2	09/1990 - 09/1994	1
25760-11110	5EFHE..EL43 NO.1	09/1990 - 09/1994	1
25861 - BRACKET, VACUUM SWITCHING VALVE
25862-11010	4EFE,5EF#..EL4# NO.2	08/1992 - 09/1994	1
25862-11010	5EF#..EL43,45 NO.2	05/1991 - 08/1992	1
25861-11010	5EF#..EL43,45 NO.1	05/1991 - 08/1992	1
25861 - BRACKET, VACUUM SWITCHING VALVE
25862-11010	4EFE,5EF#..EL4# NO.2	08/1992 - 09/1994	1
25862-11010	5EF#..EL43,45 NO.2	05/1991 - 08/1992	1
25861-11010	5EF#..EL43,45 NO.1	05/1991 - 08/1992	1
Common parts
90119-06088
90119-06311
90119-08843
90413-04008
90445-08286
90445-08287
90447-04094
90447-08081
90464-00369
90464-00604
90910-05218
90999-92002
91621-60612

EL43-BEMVH (1990)

(9009- )4EFE,5EF#

(9009- )5EFHE

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
