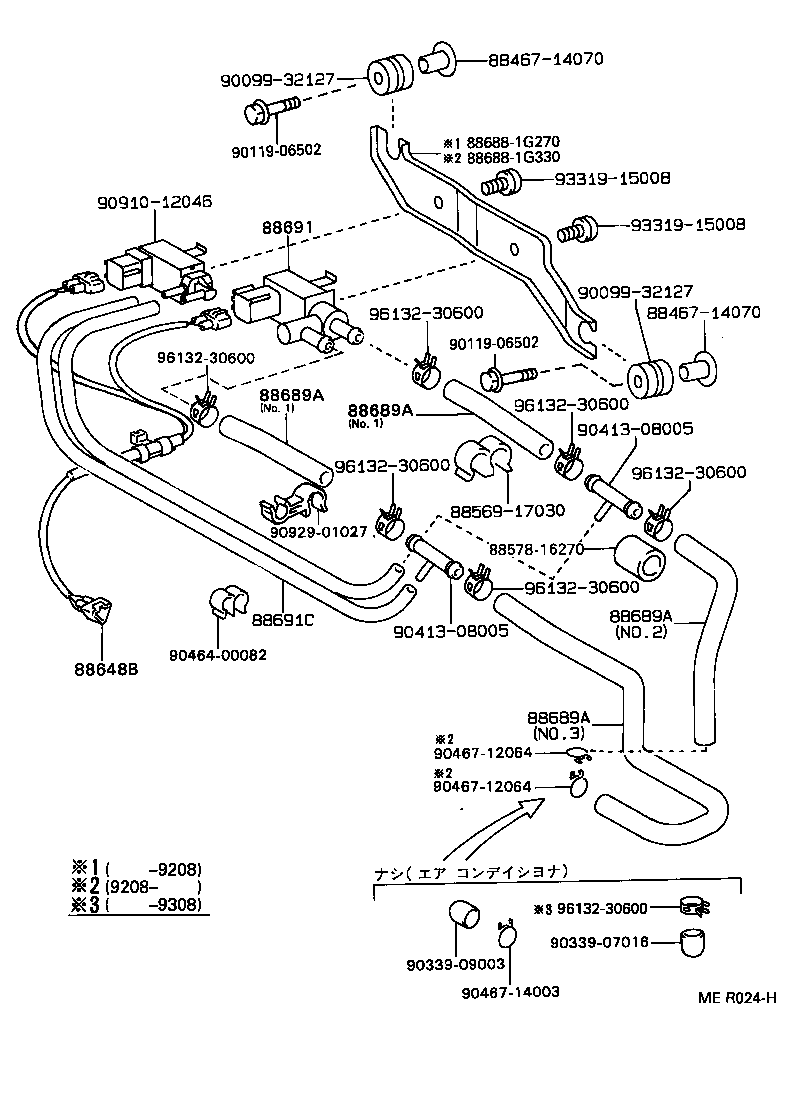

Toyota Corsa/tercel EL43 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
88689A - HOSE, COOLER VACUUM NO.1
88689-16050	EL4#..EFI NO.3	09/1990 - 08/1992	1
88689-16051	EL4#..EFI NO.3	08/1992 - 09/1994	1
88689-16070	EL4# 長さ=80,NO.1	09/1990 - 09/1994	2
88689-16060	EL4#..EFI NO.2	09/1990 - 09/1994	1
88689A - HOSE, COOLER VACUUM NO.1
88689-16050	EL4#..EFI NO.3	09/1990 - 08/1992	1
88689-16051	EL4#..EFI NO.3	08/1992 - 09/1994	1
88689-16070	EL4# 長さ=80,NO.1	09/1990 - 09/1994	2
88689-16060	EL4#..EFI NO.2	09/1990 - 09/1994	1
88689A - HOSE, COOLER VACUUM NO.1
88689-16050	EL4#..EFI NO.3	09/1990 - 08/1992	1
88689-16051	EL4#..EFI NO.3	08/1992 - 09/1994	1
88689-16070	EL4# 長さ=80,NO.1	09/1990 - 09/1994	2
88689-16060	EL4#..EFI NO.2	09/1990 - 09/1994	1
88689A - HOSE, COOLER VACUUM NO.1
88689-16050	EL4#..EFI NO.3	09/1990 - 08/1992	1
88689-16051	EL4#..EFI NO.3	08/1992 - 09/1994	1
88689-16070	EL4# 長さ=80,NO.1	09/1990 - 09/1994	2
88689-16060	EL4#..EFI NO.2	09/1990 - 09/1994	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-17030	EL4#	09/1990 - 09/1994	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL4# *H,L=300	08/1992 - 09/1994	1
95411-10022	EL4# *H,L=220,ﾏｰｸ=#0	09/1990 - 08/1992	1
90999-92002	EL4# H,L=230,ﾏｰｸ=#	09/1990 - 09/1994	1
Common parts
88467-14070
88569-17030
88578-16270
88688-1G270
88688-1G330
90099-32127
90119-06502
90339-07016
90339-09003
90413-08005
90464-00082
90467-12064
90467-14003
90910-12046
90929-01027
93319-15008
96132-30600

EL43-AGPSK (1990)
