EL43-AGMVH (1990)
Toyota Corsa/Tercel

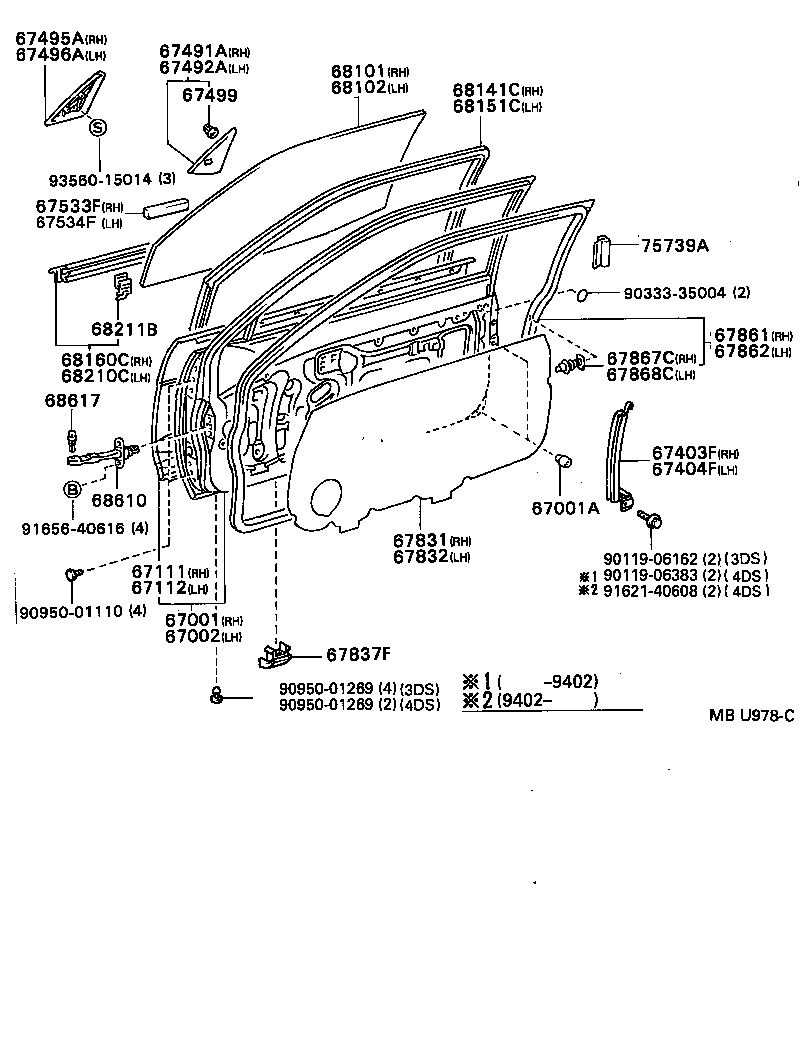

ILLUST NO. 1 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16441 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67001-16410 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67001-16440 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
EL4#,NL40..3DS |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16380 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67002-16381 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67002-16350 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16201 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67111-16200 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16180 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67112-16181 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16080 |
EL4#,NL40..3DS |
1 | ||
| 67403-16081 |
EL4#,NL40..3DS |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16080 |
EL4#,NL40..3DS |
1 | ||
| 67404-16081 |
EL4#,NL40..3DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16170 |
EL43,45..3DS..(SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67491-16170 |
EL43,45..3DS..(SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67491-16120 |
EL4#,NL40..3DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16170 |
EL43,45..3DS..(SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67492-16120 |
EL4#,NL40..3DS |
1 | ||
| 67492-16170 |
EL43,45..3DS..(SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16090 |
EL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-16090 |
EL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-32010 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
2 | ||
| 67499-16010 |
EL4#,NL40 |
2 | ||
| 67499-16010 |
EL4#,NL40..3DS |
2 | ||
| 67499-32010 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) ｱﾘ(ﾂｲ-ﾀ ｽﾋﾟ-ｶ) |
2 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-16050 |
EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 67533-16050 |
EL43,45;EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67533-16050 |
EL43,45;EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX |
1 | ||
| 67533-16050 |
EL41,NL40..3DS..(JOI,TX,VC);EL41,NL40..AVE,AXX,MOA,SOP,VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16320 |
EL4#,NL40..3DS..(DSL,EFI) |
1 | ||
| 67831-16370 |
EL43..3DS..EFIS |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-16190 |
EL4#,NL40..3DS..(DSL,EFI) |
1 | ||
| 67832-16250 |
EL43..3DS..EFIS |
1 | ||
| 67837F - SEAL, DOOR DUST PROOF | ||||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16260 |
EL4#,NL40..3DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16260 |
EL4#,NL40..3DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
EL4#,NL40..3DS |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
EL4#,NL40..3DS |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-16020 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-16020 |
EL4#..3DS..(AVE,SOP,SX,SZ,VS,VZ) *TT,厚さ=3.5,ﾌﾞﾙｰ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-16180 |
EL4#,NL40..3DS |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-16010 |
EL4#,NL40..3DS |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16060 |
EL4#,NL40..3DS |
2 | ||
| 68610-16080 |
EL4#,NL40..3DS |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
EL4#,NL40 |
2 | ||
| 75739A - MOULDING DOOR EDGE | ||||
| 75739-30030 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90119-06383 | ||||
| 90333-35004 | ||||
| 90950-01110 | ||||
| 90950-01269 | ||||
| 91621-40608 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

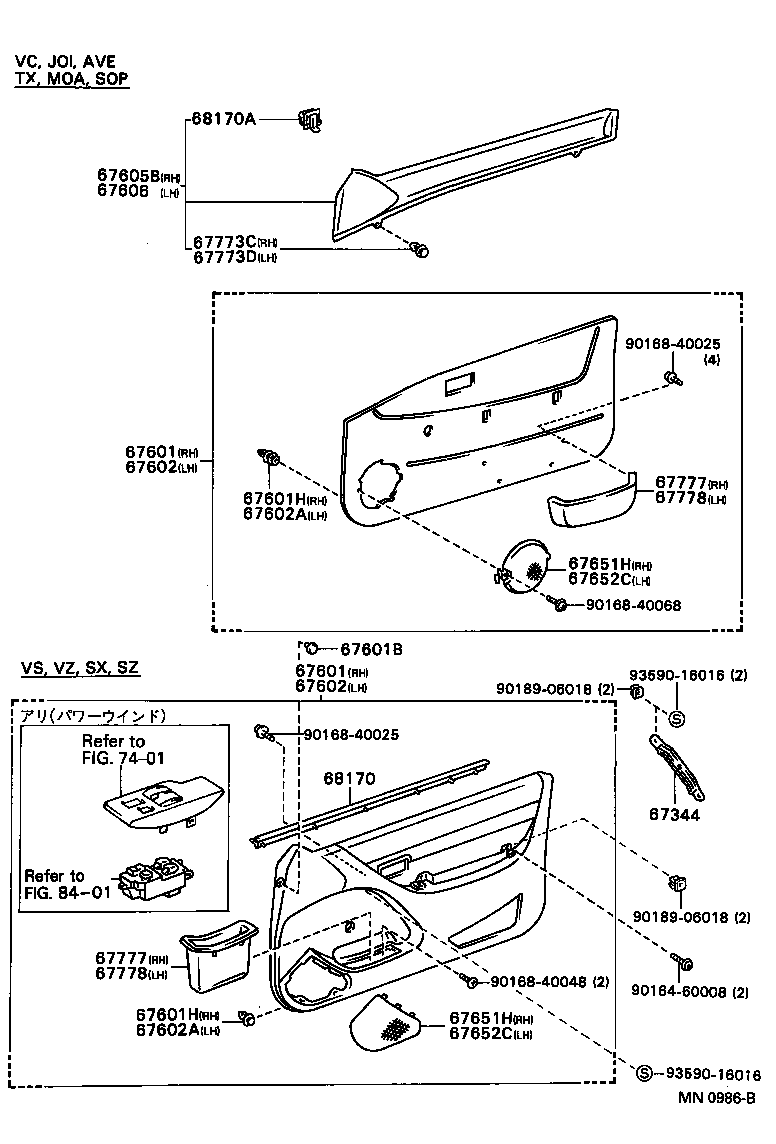

ILLUST NO. 2 OF 3(9009- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67344 - BRACKET, FRONT DOOR ARMREST SET, REAR | ||||
| 67344-16010 |
EL43,45..3DS..(SX,SZ,VS,VZ) |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1606004 |
EL43..3DS..EFIS GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1606003 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67650-1606007 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67650-16061C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67650-16061G0 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67650-16061J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67650-16062J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67650-16062G0 |
EL43..3DS..EFIS SPRUCE GRAY,TRIM6# |
1 | ||
| 67650-16062C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1606004 |
EL43..3DS..EFIS GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1606003 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67650-1606007 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67650-16061C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67650-16061G0 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67650-16061J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67650-16062J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67650-16062G0 |
EL43..3DS..EFIS SPRUCE GRAY,TRIM6# |
1 | ||
| 67650-16062C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0505607 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
2 | ||
| 90467-05056W4 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
2 | ||
| 90467-0505614 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
2 | ||
| 90467-0505622 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
2 | ||
| 90467-05056G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
2 | ||
| 90467-0505601 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
2 | ||

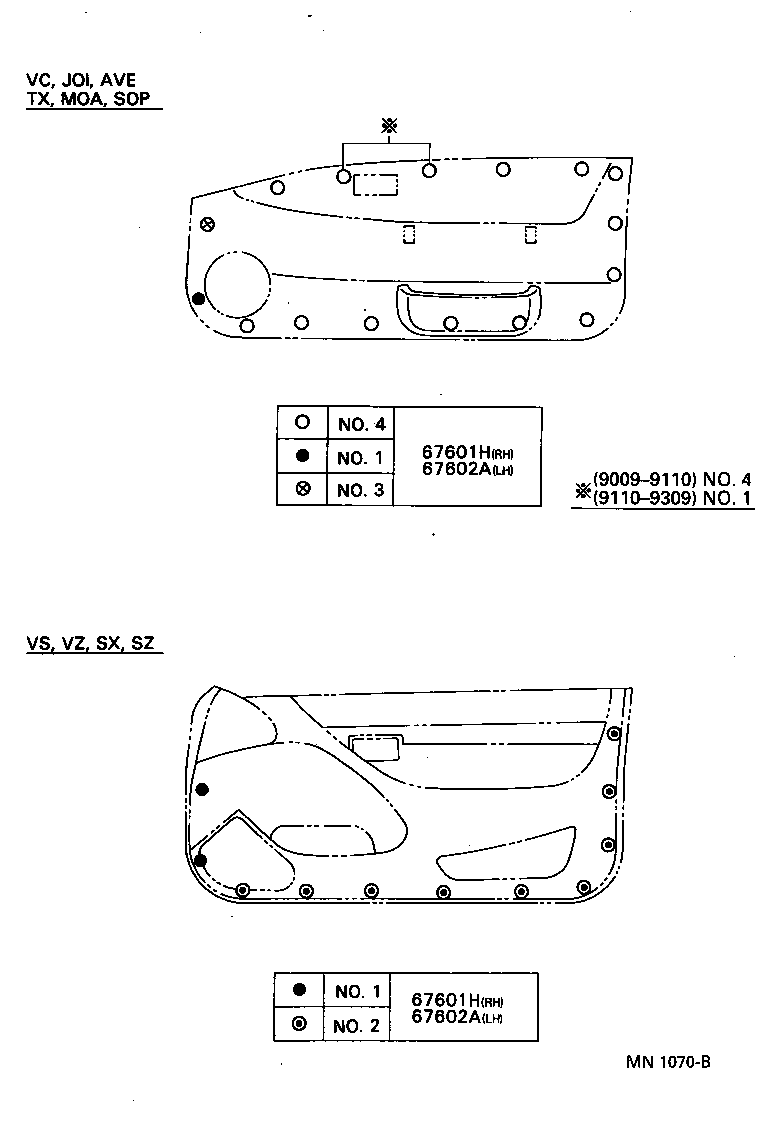

| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1681007 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67620-1681003 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67620-1681004 |
EL43..3DS..EFIS GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-16811C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67620-16811J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67620-16811G0 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1681007 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67620-1681003 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67620-1681004 |
EL43..3DS..EFIS GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-16811C0 |
EL43..3DS..EFIS GRAY,TRIM2# |
1 | ||
| 67620-16811J0 |
EL43..3DS..EFIS EISEN BLUE,TRIM8# |
1 | ||
| 67620-16811G0 |
EL43..3DS..EFIS SPRUCE,TRIM6# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67651-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67651-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67651-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67651-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1603004 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1603007 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67651-1603001 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67651-16030G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67651-16030C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67651-16030J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-1601001 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67652-1601007 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67652-16010G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67652-16010C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67652-16010J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 67652-1601004 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-1601001 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67652-1601007 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67652-16010G0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 67652-16010C0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ BLACK,TRIM2# |
1 | ||
| 67652-16010J0 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ EISEN BLUE,TRIM8# |
1 | ||
| 67652-1601004 |
EL43,45,NL40..SX,SZ,VITX,VITZ,VS,VX,VZ GRAYISH BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16090 |
EL43,45..3DS..(SX,SZ,VS,VZ) |
2 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90168-40068 | ||||
| 90189-06018 | ||||
| 93590-16016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9009- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16120 |
EL43,45..3DS..(SX,SZ,VS,VZ) NO.2 |
9 | ||
| 67771-16160 |
EL43,45,NL40..SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ NO.1 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
