EL41-BGKDK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

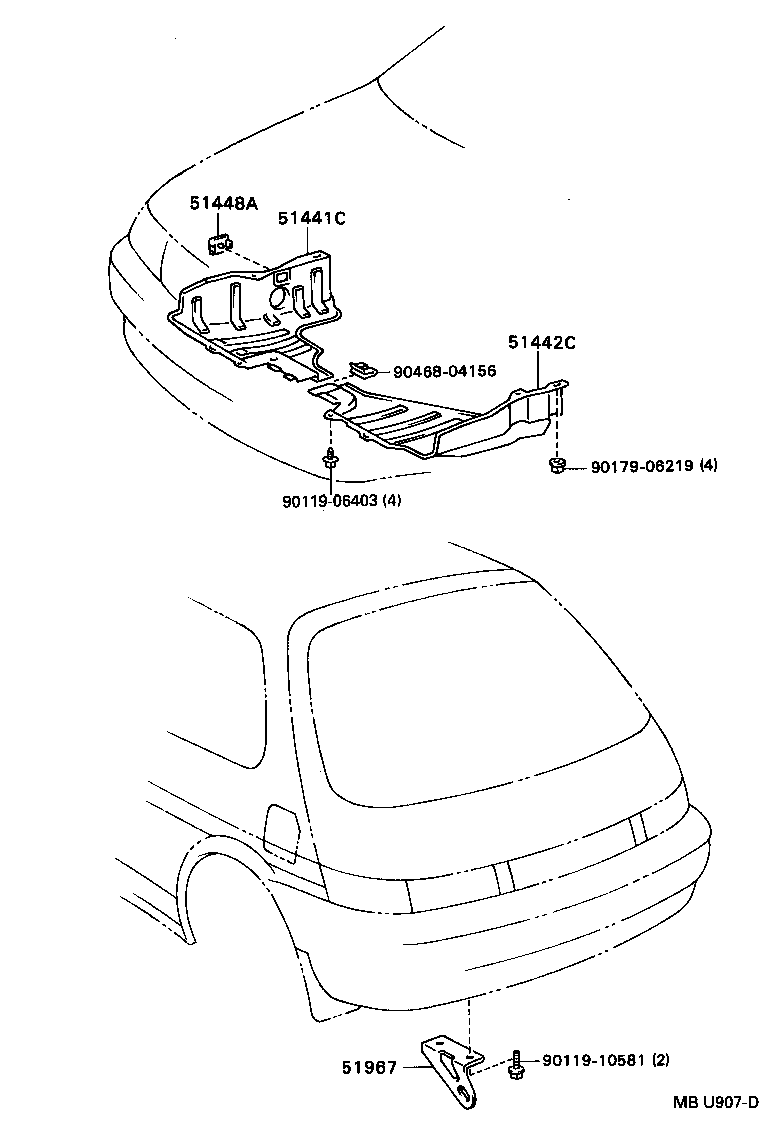

Click highlighted areas on diagram

diagram 51441C 51442C 51448A 51967 9011906403 9011910581 9017906219 9046804156
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-10100

EL4#,NL40

 1
51441-10130

EL4#,NL40

 1
51442C - COVER, ENGINE UNDER, LH
51442-10050

EL4#,NL40..MTM

 1
51442-10051

EL4#,NL40..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

EL4#,NL40

 1
51967 - HOOK, TRANSPORT, REAR
51968-16110

EL4#,NL40..3DS

 1
Common parts
90119-06403
90119-10581
90179-06219
90468-04156
