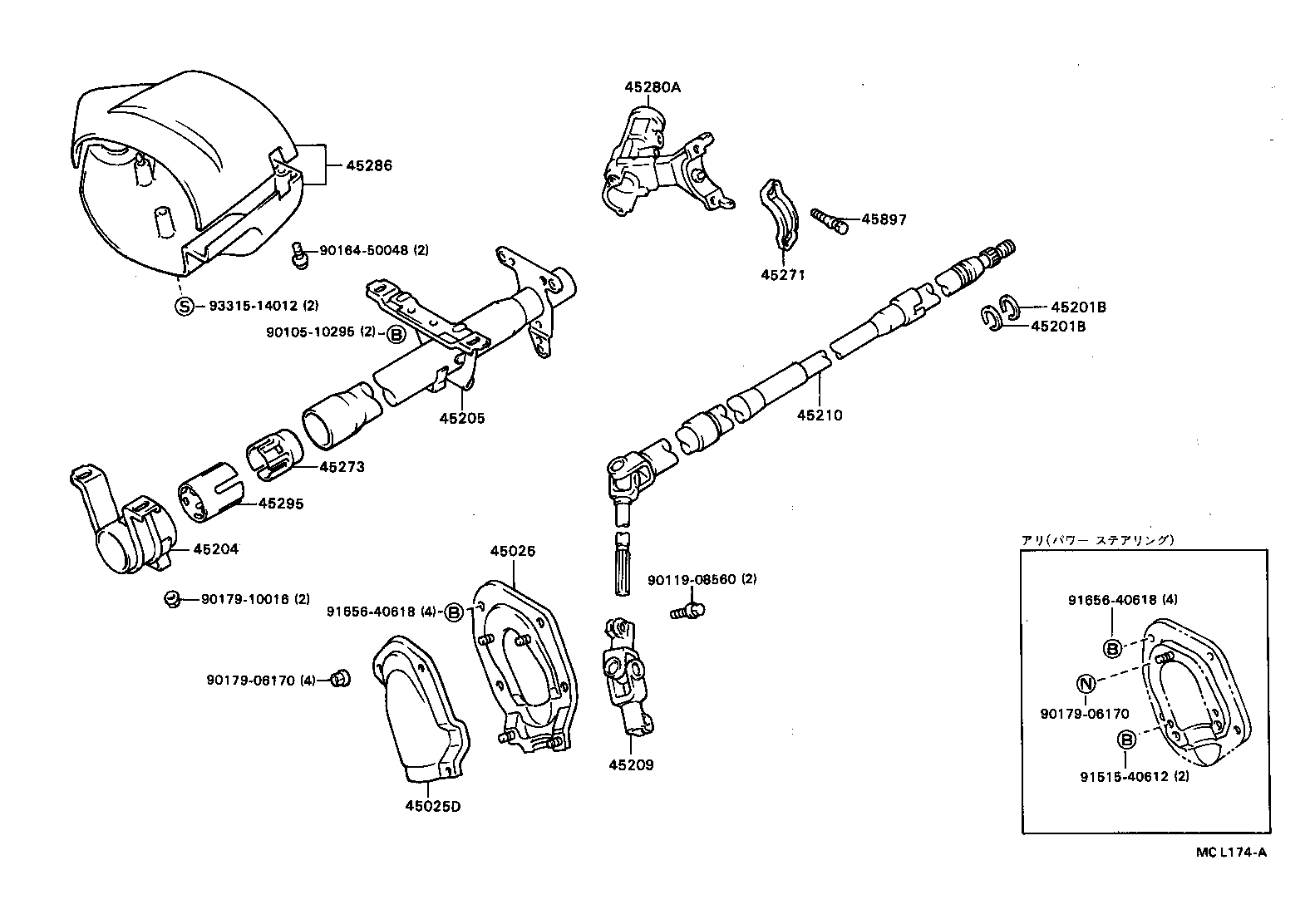

EL41-BGHNK (1990)
Toyota Corsa/Tercel
(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16120 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16060 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL4#,NL40 厚さ=1.20 |
2 | ||
| 90520-17269 |
EL4#,NL40 厚さ=1.20,NO.2 |
1 | ||
| 90520-17042 |
EL4#,NL40 厚さ=1.20,NO.1 |
1 | ||
| 90520-17196 |
EL4#,NL40 厚さ=1.35−1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL4#,NL40 厚さ=1.20 |
2 | ||
| 90520-17269 |
EL4#,NL40 厚さ=1.20,NO.2 |
1 | ||
| 90520-17042 |
EL4#,NL40 厚さ=1.20,NO.1 |
1 | ||
| 90520-17196 |
EL4#,NL40 厚さ=1.35−1.45 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-10060 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10200 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45205-10201 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16051 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL4#,NL40 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EL4#,NL40 |
1 | ||
| 45273-16010 |
EL4#,NL40 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16080 |
EL4#,NL40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1691301 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 45286-1691304 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 45286-1691322 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 45286-16913W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 45286-1691307 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 45286-16913G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-10010 |
EL4#,NL40 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-32010 |
EL4#,NL40 |
2 | ||
| 45897-12020 |
EL4#,NL40 |
2 | ||
| Common parts | ||||
| 90105-10295 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06170 | ||||
| 90179-10016 | ||||
| 91515-40612 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
(9009- )

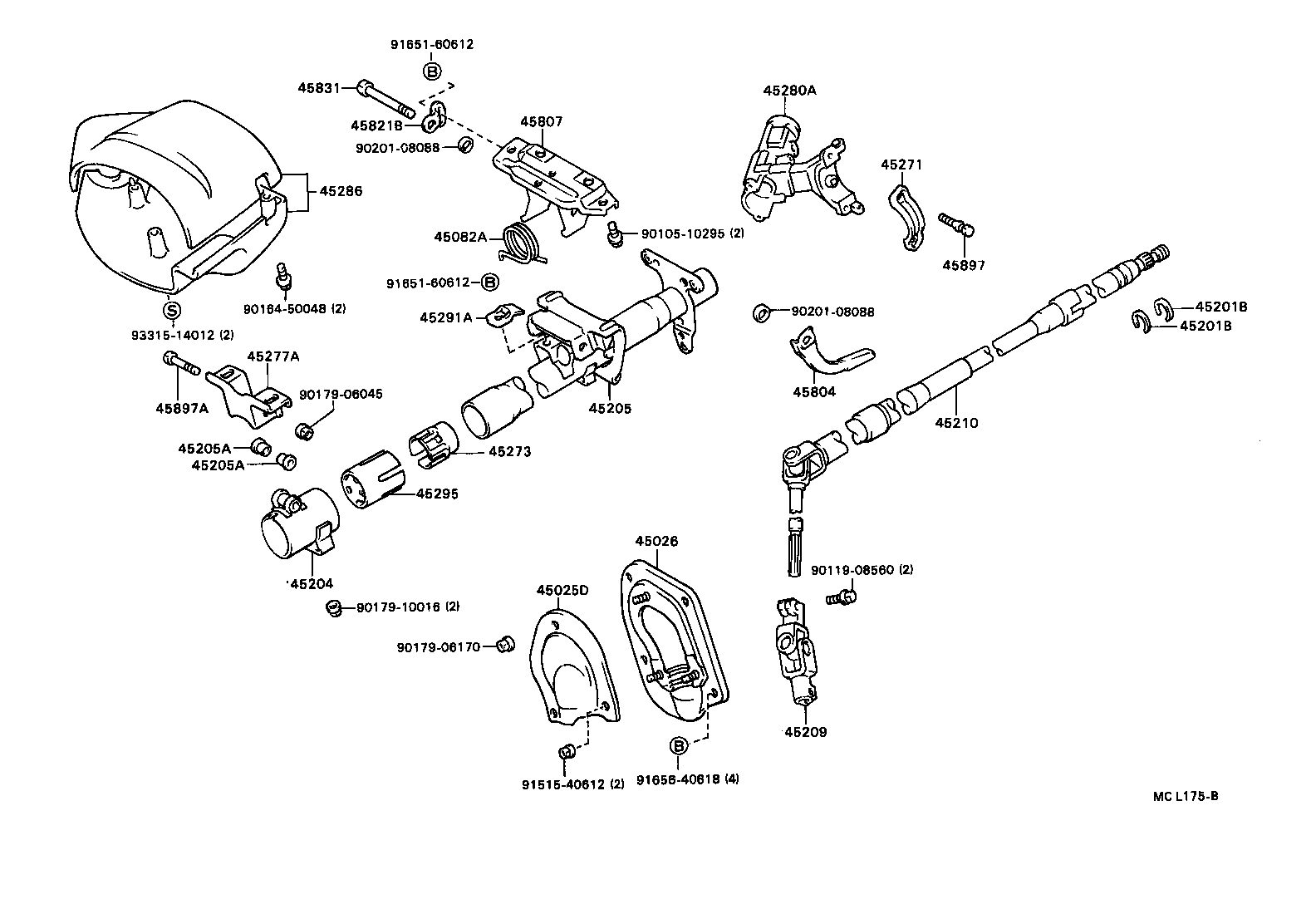

ﾁﾙﾄ ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-16120 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-16060 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90508-32029 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL4#,NL40 厚さ=1.20 |
2 | ||
| 90520-17269 |
EL4#,NL40 厚さ=1.20,NO.2 |
1 | ||
| 90520-17042 |
EL4#,NL40 厚さ=1.20,NO.1 |
1 | ||
| 90520-17196 |
EL4#,NL40 厚さ=1.35−1.45 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
EL4#,NL40 厚さ=1.20 |
2 | ||
| 90520-17269 |
EL4#,NL40 厚さ=1.20,NO.2 |
1 | ||
| 90520-17042 |
EL4#,NL40 厚さ=1.20,NO.1 |
1 | ||
| 90520-17196 |
EL4#,NL40 厚さ=1.35−1.45 |
2 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-10060 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-10200 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45205-10201 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
2 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 90386-08034 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
2 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45209-16051 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-10150 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
EL4#,NL40 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-20030 |
EL4#,NL40 |
1 | ||
| 45273-16010 |
EL4#,NL40 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-10010 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-16080 |
EL4#,NL40 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-1691301 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 45286-1691304 |
EL4#,NL40 GRAYISH BLUE,TRIM8# |
1 | ||
| 45286-1691322 |
EL4#,NL40 BLACK,TRIM2# |
1 | ||
| 45286-16913W4 |
EL4#,NL40 EISEN BLUE,TRIM8# |
1 | ||
| 45286-1691307 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 45286-16913G0 |
EL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ SPRUCE,TRIM6# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-16010 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45295 - BUSH, STEERING COLUMN TUBE | ||||
| 45295-10010 |
EL4#,NL40 |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-10010 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-16040 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45807-16041 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45807-16042 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-16010 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16020 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-32010 |
EL4#,NL40 |
2 | ||
| 45897-12020 |
EL4#,NL40 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-16010 |
EL4#..AVE,AXX,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ |
1 | ||
| Common parts | ||||
| 90105-10295 | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-06045 | ||||
| 90179-06170 | ||||
| 90179-10016 | ||||
| 90201-08088 | ||||
| 91515-40612 | ||||
| 91651-60612 | ||||
| 91656-40618 | ||||
| 93315-14012 | ||||
