EL41-AGKDK (1990)
Toyota Corsa/Tercel

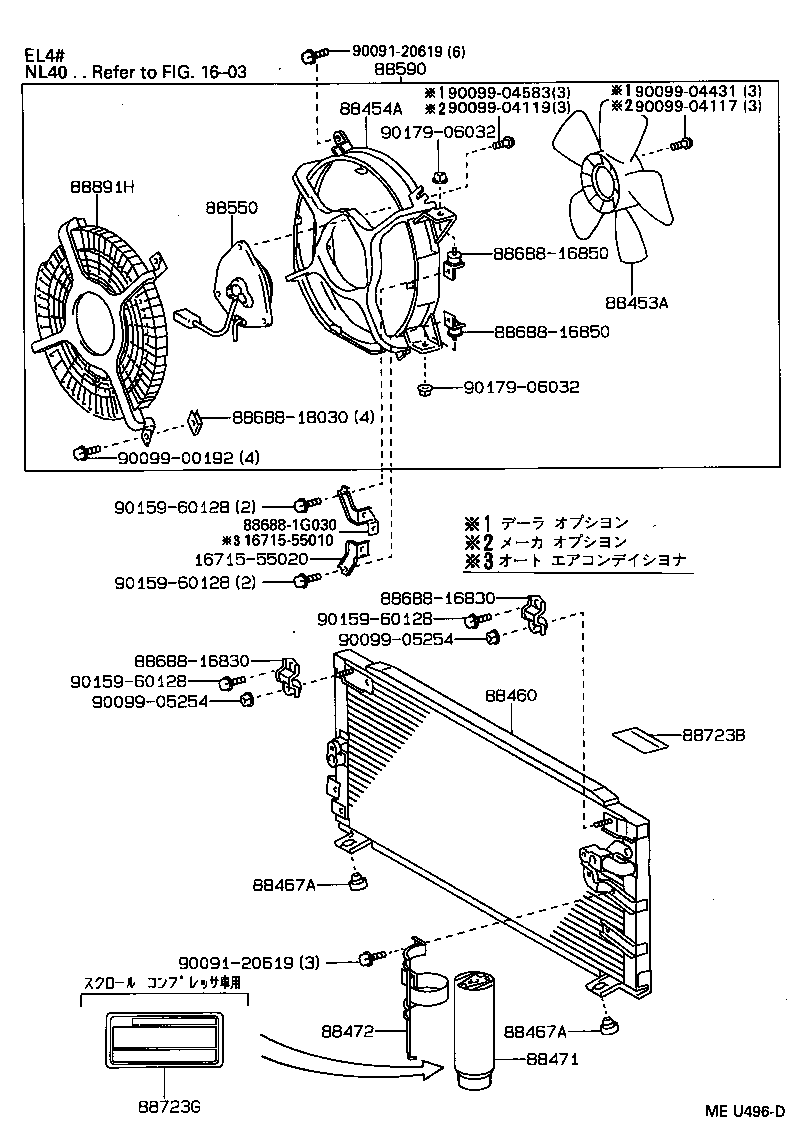

ILLUST NO. 1 OF 2(9009-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-10020 |
EL4#..4F,4FC,5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16110 |
EL4#..4F,4FC,5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16240 |
EL4# |
1 | ||
| 88460-16300 |
EL4# |
1 | ||
| 88460-16301 |
EL4# |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL4#;NL40..4FC |
2 | ||
| 88467-10020 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL4#;NL40..4FC |
2 | ||
| 88467-10020 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
EL4#;NL40..4FC |
1 | ||
| 88471-34010 |
EL4#;NL40..4FC |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16110 |
EL4#;NL40..4FC |
1 | ||
| 88472-16110 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10050 |
EL4#..4F,4FC,5F |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16040 |
EL4#..4F,4FC,5F |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20010 |
EL4#;NL40..4FC |
1 | ||
| 88723-16030 |
EL4#;NL40..4FC |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-16040 |
EL4# |
1 | ||
| Common parts | ||||
| 16715-55010 | ||||
| 16715-55020 | ||||
| 88688-16570 | ||||
| 88688-16830 | ||||
| 88688-16850 | ||||
| 88688-18030 | ||||
| 90091-20619 | ||||
| 90099-00192 | ||||
| 90099-04431 | ||||
| 90099-04583 | ||||
| 90099-05254 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| Linked diagrams | ||||
| 1603 | ||||

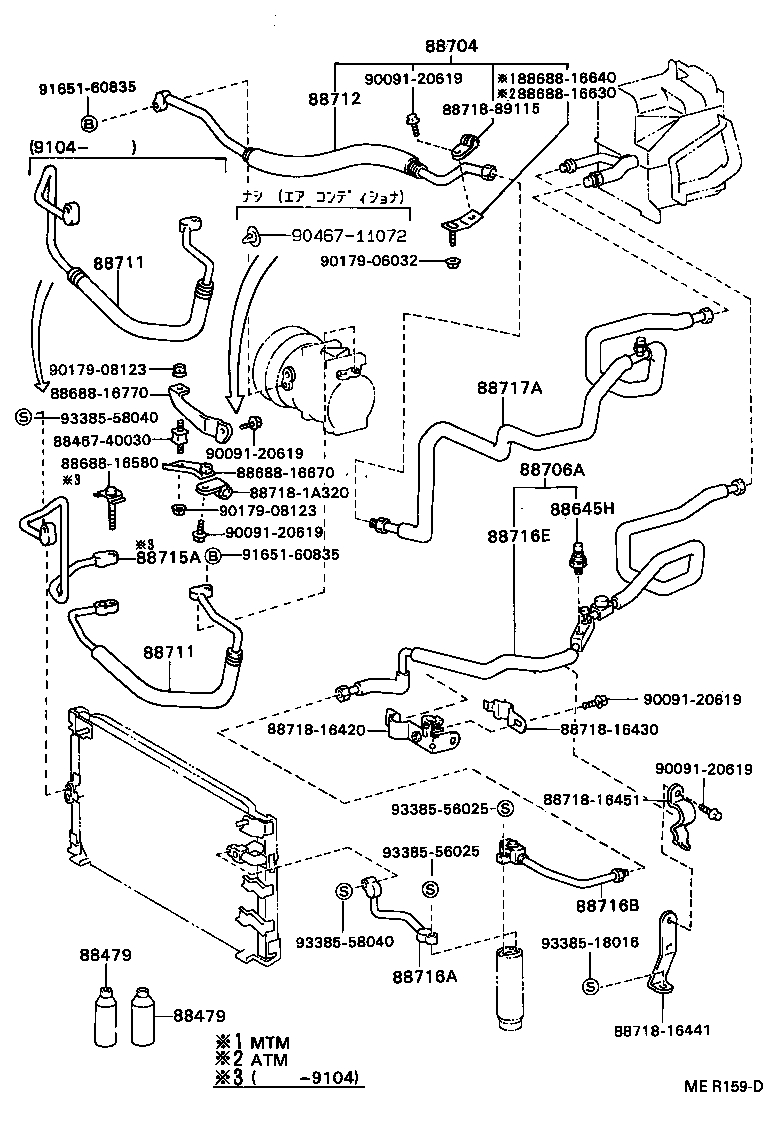

ILLUST NO. 2 OF 2(9009-9208)EL4#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL41,NL40..(3FC,4F,4FC)..(AVE,AX,AXX,JOI,MOA,SOP) 250G |
5 | ||
| 90986-02006 |
EL4#..EFI;NL40..4FC 300G |
1 | ||
| 90986-02004 |
EL4#..EFI;NL40..4FC 250G |
3 | ||
| 90986-02008 |
EL4#..EFI;NL40..4FC 200G |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL41,NL40..(3FC,4F,4FC)..(AVE,AX,AXX,JOI,MOA,SOP) 250G |
5 | ||
| 90986-02006 |
EL4#..EFI;NL40..4FC 300G |
1 | ||
| 90986-02004 |
EL4#..EFI;NL40..4FC 250G |
3 | ||
| 90986-02008 |
EL4#..EFI;NL40..4FC 200G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL4#;NL40..4FC |
1 | ||
| 88645-20050 |
EL4#;NL40..4FC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16031 |
EL4#..MTM |
1 | ||
| 88704-16030 |
EL4#..MTM |
1 | ||
| 88704-16131 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88704-16130 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-16100 |
EL4# |
1 | ||
| 88706-16101 |
EL4# |
1 | ||
| 88706-16281 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88706-16280 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16130 |
EL4# |
1 | ||
| 88711-16160 |
EL4# |
1 | ||
| 88711-16181 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711-16180 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16130 |
EL4# |
1 | ||
| 88711-16160 |
EL4# |
1 | ||
| 88711-16181 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711-16180 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16170 |
EL4#..MTM |
1 | ||
| 88712-16171 |
EL4#..MTM |
1 | ||
| 88712-16300 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88712-16301 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-16030 |
EL4#;NL40..4FC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16530 |
EL4#;NL40..4FC |
1 | ||
| 88716-16532 |
EL4#;NL40..4FC |
1 | ||
| 88716-16531 |
EL4#;NL40..4FC |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16570 |
EL4#;NL40..4FC |
1 | ||
| 88716-16840 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-16841 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-16701 |
EL4# |
1 | ||
| 88716-16700 |
EL4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16130 |
EL4# |
1 | ||
| 88717-16221 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16220 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16131 |
EL4# |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88688-16580 | ||||
| 88688-16630 | ||||
| 88688-16640 | ||||
| 88688-16670 | ||||
| 88688-16770 | ||||
| 88718-16420 | ||||
| 88718-16430 | ||||
| 88718-16441 | ||||
| 88718-16451 | ||||
| 88718-1A320 | ||||
| 88718-89115 | ||||
| 90091-20619 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 90467-11072 | ||||
| 91651-60835 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||
ILLUST NO. 1 OF 2(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-10020 |
EL4#..4F,4FC,5F |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-16110 |
EL4#..4F,4FC,5F |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-16240 |
EL4# |
1 | ||
| 88460-16300 |
EL4# |
1 | ||
| 88460-16301 |
EL4# |
1 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL4#;NL40..4FC |
2 | ||
| 88467-10020 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-10020 |
EL4#;NL40..4FC |
2 | ||
| 88467-10020 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-16040 |
EL4#;NL40..4FC |
1 | ||
| 88471-34010 |
EL4#;NL40..4FC |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-16110 |
EL4#;NL40..4FC |
1 | ||
| 88472-16110 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-10050 |
EL4#..4F,4FC,5F |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-16040 |
EL4#..4F,4FC,5F |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20010 |
EL4#;NL40..4FC |
1 | ||
| 88723-16030 |
EL4#;NL40..4FC |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-16040 |
EL4# |
1 | ||
| Common parts | ||||
| 16715-55010 | ||||
| 16715-55020 | ||||
| 88688-16830 | ||||
| 88688-16850 | ||||
| 88688-18030 | ||||
| 88688-1G030 | ||||
| 90091-20619 | ||||
| 90099-00192 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04431 | ||||
| 90099-04583 | ||||
| 90099-05254 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| Linked diagrams | ||||
| 1603 | ||||

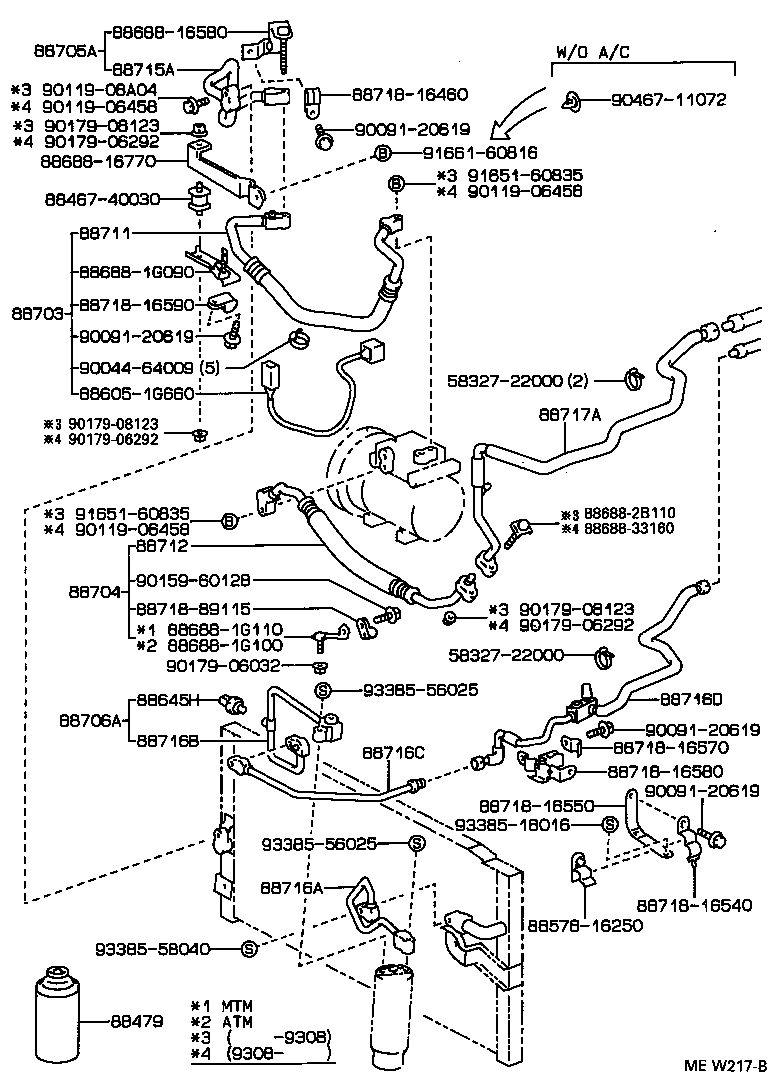

ILLUST NO. 2 OF 2(9208- )EL4#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL41,NL40..(3FC,4F,4FC)..(AVE,AX,AXX,JOI,MOA,SOP) 250G |
5 | ||
| 90986-02006 |
EL4#..EFI;NL40..4FC 300G |
1 | ||
| 90986-02004 |
EL4#..EFI;NL40..4FC 250G |
3 | ||
| 90986-02008 |
EL4#..EFI;NL40..4FC 200G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL4#;NL40..4FC |
1 | ||
| 88645-20050 |
EL4#;NL40..4FC |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-16071 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88703-16070 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16031 |
EL4#..MTM |
1 | ||
| 88704-16030 |
EL4#..MTM |
1 | ||
| 88704-16131 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88704-16130 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-16100 |
EL4# |
1 | ||
| 88706-16101 |
EL4# |
1 | ||
| 88706-16281 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88706-16280 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16130 |
EL4# |
1 | ||
| 88711-16160 |
EL4# |
1 | ||
| 88711-16181 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711-16180 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16170 |
EL4#..MTM |
1 | ||
| 88712-16171 |
EL4#..MTM |
1 | ||
| 88712-16300 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88712-16301 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16530 |
EL4#;NL40..4FC |
1 | ||
| 88716-16532 |
EL4#;NL40..4FC |
1 | ||
| 88716-16531 |
EL4#;NL40..4FC |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16570 |
EL4#;NL40..4FC |
1 | ||
| 88716-16840 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-16841 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16850 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88716-16851 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16130 |
EL4# |
1 | ||
| 88717-16221 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16220 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16131 |
EL4# |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88605-1G660 | ||||
| 88688-16770 | ||||
| 88688-1G090 | ||||
| 88688-1G100 | ||||
| 88688-1G110 | ||||
| 88688-2B110 | ||||
| 88688-33160 | ||||
| 88718-16540 | ||||
| 88718-16550 | ||||
| 88718-16570 | ||||
| 88718-16580 | ||||
| 88718-16590 | ||||
| 88718-89115 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90179-08123 | ||||
| 90467-11072 | ||||
| 91651-60835 | ||||
| 93385-16045 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||

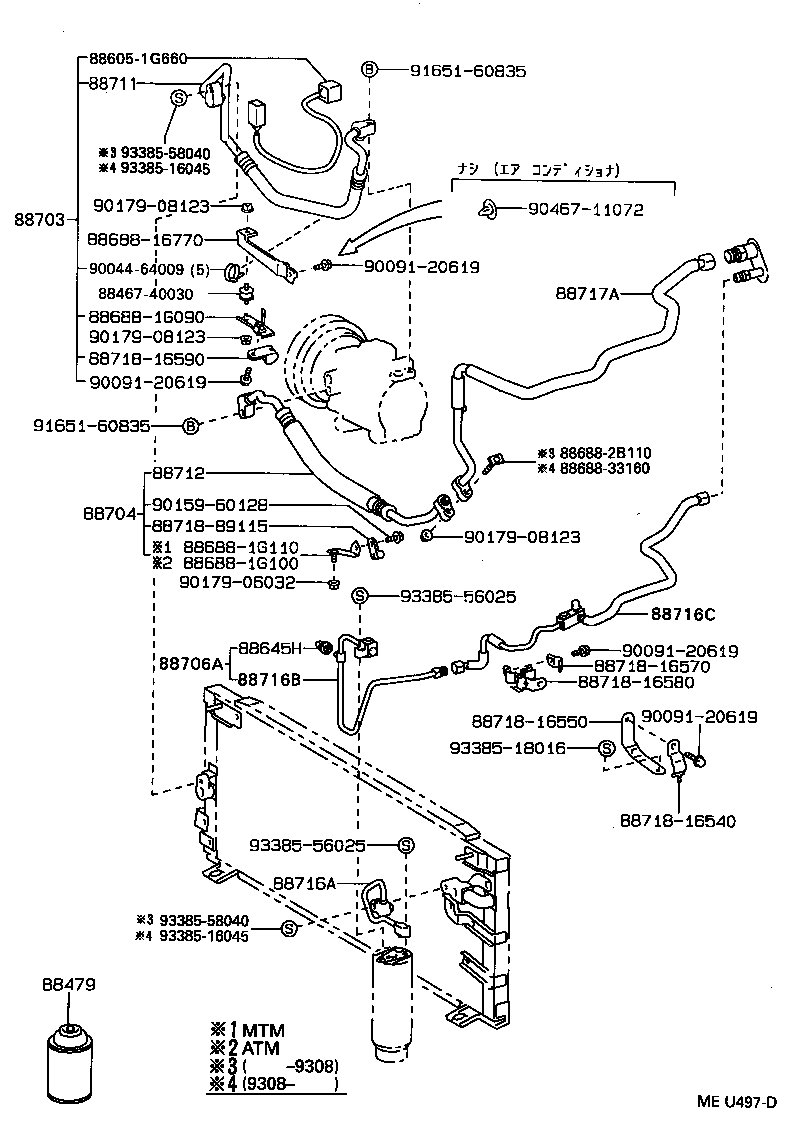

ILLUST NO. 2 OF 2(9208- )EL4#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
EL41,NL40..(3FC,4F,4FC)..(AVE,AX,AXX,JOI,MOA,SOP) 250G |
5 | ||
| 90986-02006 |
EL4#..EFI;NL40..4FC 300G |
1 | ||
| 90986-02004 |
EL4#..EFI;NL40..4FC 250G |
3 | ||
| 90986-02008 |
EL4#..EFI;NL40..4FC 200G |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-10030 |
EL4#;NL40..4FC |
1 | ||
| 88645-20050 |
EL4#;NL40..4FC |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-16071 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88703-16070 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-16031 |
EL4#..MTM |
1 | ||
| 88704-16030 |
EL4#..MTM |
1 | ||
| 88704-16131 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88704-16130 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88706A - TUBE SUB-ASSY, LIQUID, A | ||||
| 88706-16100 |
EL4# |
1 | ||
| 88706-16101 |
EL4# |
1 | ||
| 88706-16281 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88706-16280 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-16130 |
EL4# |
1 | ||
| 88711-16160 |
EL4# |
1 | ||
| 88711-16181 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88711-16180 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-16170 |
EL4#..MTM |
1 | ||
| 88712-16171 |
EL4#..MTM |
1 | ||
| 88712-16300 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88712-16301 |
EL41,45..MTM..(AVE,AX,AXX,JOI,MOA,SOP,TX,VC) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-16030 |
EL4#;NL40..4FC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-16530 |
EL4#;NL40..4FC |
1 | ||
| 88716-16532 |
EL4#;NL40..4FC |
1 | ||
| 88716-16531 |
EL4#;NL40..4FC |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-16570 |
EL4#;NL40..4FC |
1 | ||
| 88716-16840 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC ﾃﾞ-ﾗ ｵﾌﾟｼﾖﾝ |
1 | ||
| 88716-16841 |
NL40..4FC;EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-16850 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88716-16851 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-16130 |
EL4# |
1 | ||
| 88717-16221 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16220 |
EL41,45..AVE,AX,AXX,JOI,MOA,SOP,TX,VC |
1 | ||
| 88717-16131 |
EL4# |
1 | ||
| Common parts | ||||
| 58327-22000 | ||||
| 88467-40030 | ||||
| 88578-16250 | ||||
| 88605-1G660 | ||||
| 88688-16580 | ||||
| 88688-16770 | ||||
| 88688-1G090 | ||||
| 88688-1G100 | ||||
| 88688-1G110 | ||||
| 88688-2B110 | ||||
| 88688-33160 | ||||
| 88718-16460 | ||||
| 88718-16540 | ||||
| 88718-16550 | ||||
| 88718-16570 | ||||
| 88718-16580 | ||||
| 88718-16590 | ||||
| 88718-89115 | ||||
| 90044-64009 | ||||
| 90091-20619 | ||||
| 90119-06458 | ||||
| 90119-08A04 | ||||
| 90159-60128 | ||||
| 90179-06032 | ||||
| 90179-06292 | ||||
| 90179-08123 | ||||
| 90467-11072 | ||||
| 91651-60835 | ||||
| 91661-60816 | ||||
| 93385-18016 | ||||
| 93385-56025 | ||||
| 93385-58040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
