Toyota Corsa/tercel EL41 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty

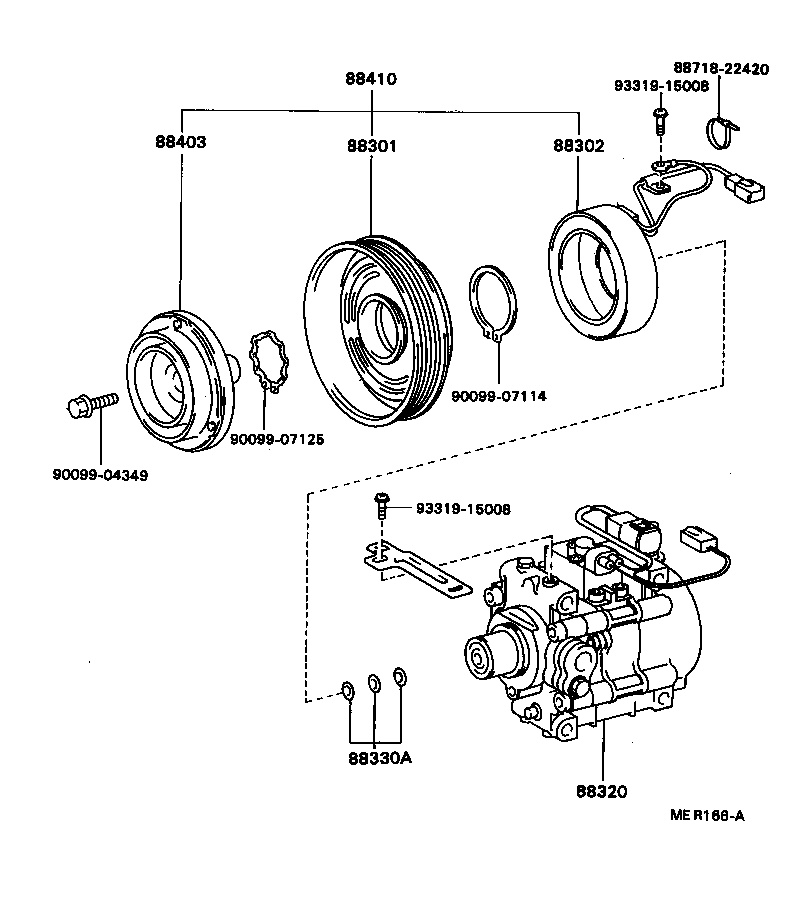

88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-10170	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	09/1990 - 08/1992	1
88412-16080	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	08/1992 - 08/1993	1
88412-16130	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	08/1993 - 09/1994	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-16060	EL4#;NL40..4FC	08/1992 - 08/1993	1
88411-16050	EL4#;NL40..4FC	09/1990 - 08/1992	1
88411-1A040	EL4#;NL40..4FC	08/1993 - 09/1994	1
88320 - COMPRESSOR ASSY, COOLER
88320-16180	EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	09/1990 - 06/1992	1
88320-16290	EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	06/1992 - 08/1992	1
88320-16310	EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	08/1992 - 08/1993	1
88320-16311	EL4#..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ	08/1993 - 09/1994	1
88320-16311	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP) TV 10 COMPRESSOR	05/1994 - 09/1994	1
88320-16380	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP) SCROLL COMPRESSOR	05/1994 - 09/1994	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	EL4#;NL40..4FC	09/1990 - 09/1994	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-16011	EL4#;NL40..4FC	09/1990 - 08/1992	1
88403-1A010	EL4#;NL40..4FC	08/1992 - 09/1994	1
88410 - CLUTCH ASSY, MAGNET
88410-16110	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	09/1990 - 08/1992	1
88410-16180	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	08/1992 - 08/1993	1
88410-16181	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP)	08/1993 - 09/1994	1
88410-16280	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP) SCROLL COMPRESSOR	05/1994 - 09/1994	1
88410-16181	EL41..3FC..(AVE,AX,AXX,JOI,MOA,SOP) TV 10 COMPRESSOR	05/1994 - 09/1994	1
Common parts
88718-22420
90099-04349
90099-07114
90099-07125
93319-15008

Part #	Description	Period	Qty

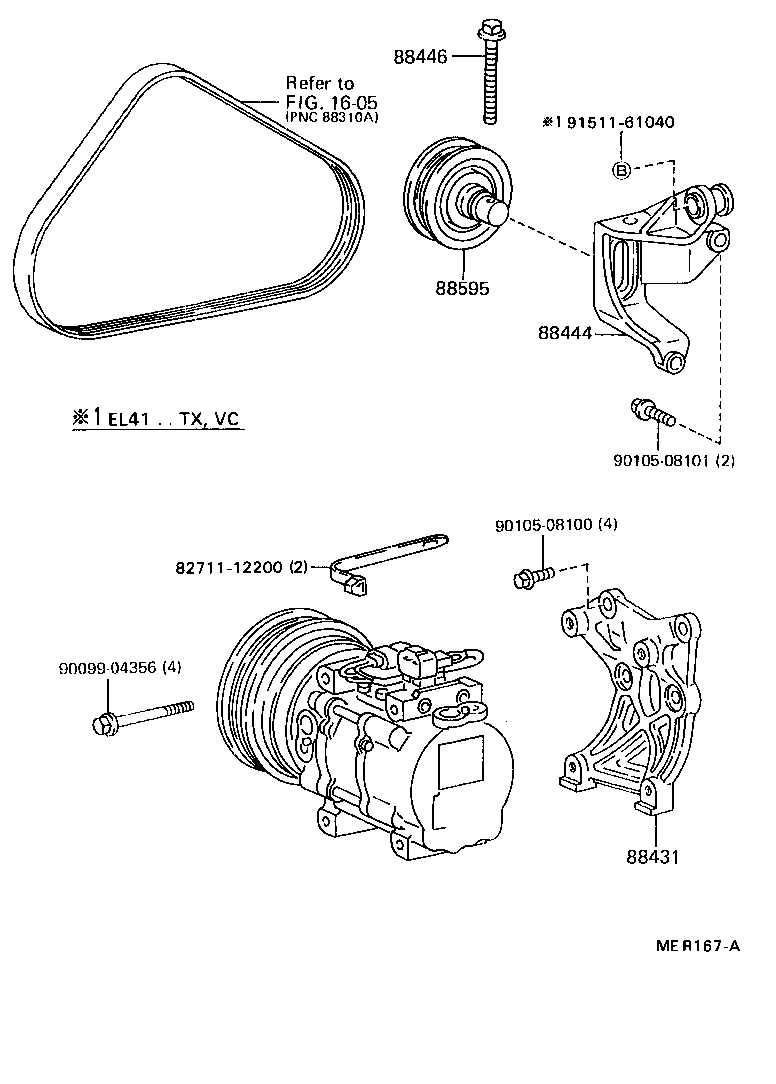

88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-16060	EL4#	09/1990 - 09/1994	1
88431-16120	EL41..3FC SCROLL COMPRESSOR	05/1994 - 09/1994	1
88431-16060	EL41..3FC TV 10 COMPRESSOR	05/1994 - 09/1994	1
Common parts
82711-12200
90099-04356
90105-08100
90105-08101
91511-61040
Linked diagrams
1605

EL41-AGHNK (1990)

ILLUST NO. 2 OF 2(9009- )

ILLUST NO. 1 OF 2(9009- )EL4#
