EL41-AGHDK (1990)

Toyota Corsa/Tercel

Production Sep 1990 - Sep 1994
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )3DS

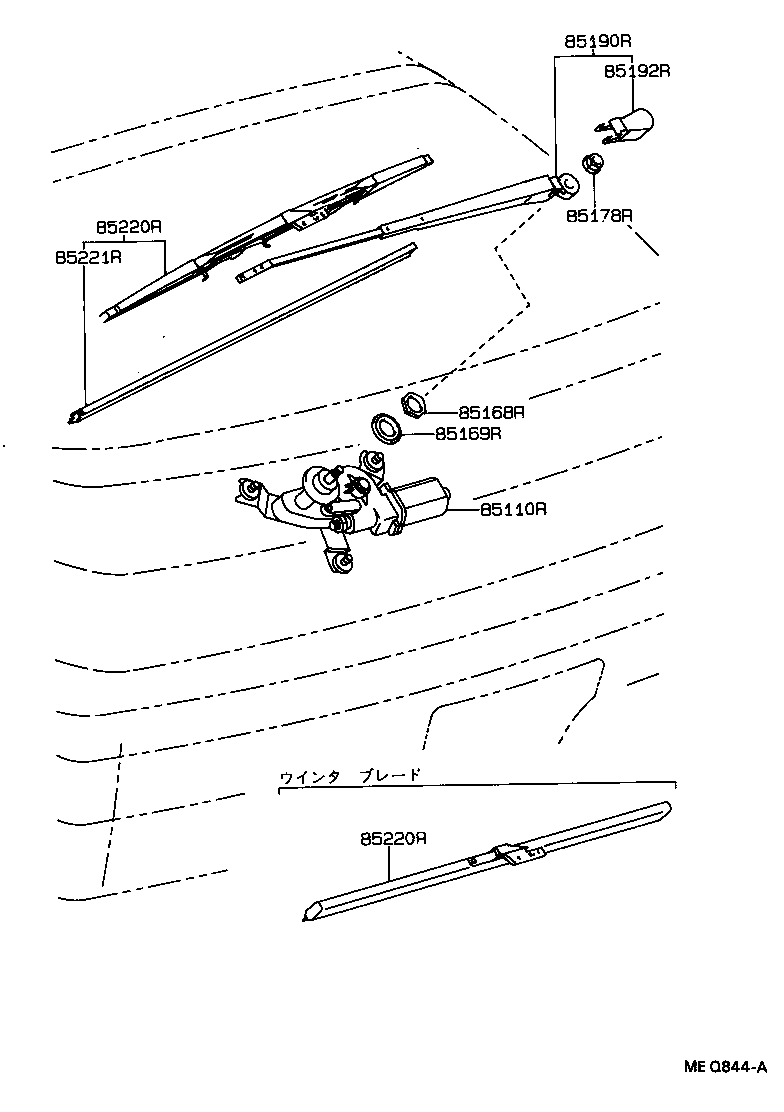

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85220R 85220R 85221R
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-16390

EL4#,NL40..3DS

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

EL4#,NL40..3DS

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-16390

EL4#,NL40..3DS

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

EL4#,NL40..3DS..(DSL,EFI)

 1
90176-06024

EL41,NL40..3DS..(JOI,MOA,TX,VC)

ｱﾘ(LEDﾂｷ ﾘﾔｽﾎﾟｲﾗ)

 1
90179-06158

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85190R - ARM ASSY, REAR WIPER
85241-16011

EL4#,NL40..3DS..(DSL,EFI)

 1
85241-16010

EL4#,NL40..3DS..(DSL,EFI)

 1
85241-16011

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85241-16021

EL41,NL40..3DS..(JOI,MOA,TX,VC)

ｱﾘ(LEDﾂｷ ﾘﾔｽﾎﾟｲﾗ)

 1
85192R - COVER, REAR WIPER ARM
85192-13060

EL4#,NL40..3DS

 1
85220R - BLADE ASSY, REAR WIPER
85242-16011

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

 1
85242-16010

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

U ﾌﾂｸ ﾀｲﾌﾟ

 1
85291-16040

EL41,NL40..3DS..(JOI,MOA,TX,VC)

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220-16441

EL4#,NL40..3DS

ｽｸﾘﾕｳ ﾀｲﾌﾟ

 1
85242-16012

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85242-16011

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85291-16040

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220R - BLADE ASSY, REAR WIPER
85242-16011

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

 1
85242-16010

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

U ﾌﾂｸ ﾀｲﾌﾟ

 1
85291-16040

EL41,NL40..3DS..(JOI,MOA,TX,VC)

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85220-16441

EL4#,NL40..3DS

ｽｸﾘﾕｳ ﾀｲﾌﾟ

 1
85242-16012

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85242-16011

EL41,NL40..3DS..(JOI,MOA,TX,VC)

 1
85291-16040

EL41,45,NL40..3DS..(JOI,MOA,TX,VC)

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 1
85221R - BLADE, REAR WIPER
85221-16080

EL4#,NL40..3DS

ｽｸﾘﾕｳ ﾀｲﾌﾟ

 1
85243-16020

EL4#,NL40..3DS

U ﾌﾂｸ ﾀｲﾌﾟ

 1
85243-32010

EL4#,NL40..3DS

 1
